SMC

SMC (SMC Corporation) is a global leader in the automation industry, manufacturing and supplying a broad range of pneumatic and electric automation equipment, including control systems, actuators, and air line equipment for various industries.

Products:
Pneumatic Automation: Directional control valves, actuators, air line equipment, and more.

Electric Automation: Electric actuators, detection switches, and other related equipment.

Other Products: Temperature control equipment, vacuum equipment, process valves, chemical liquid valves, life science equipment, and high vacuum equipment.
Industries Served:

SMC products are used in a wide range of industries, including automotive, manufacturing, food processing, and more.
Global Presence:

SMC has a global presence, with production facilities in Japan, China, Singapore, India, and Vietnam.
History:

SMC was founded in 1959

View as Grid List

Sort by

Display per page

5/2 Pneumatic Solenoid Valve - Solenoid/Solenoid SV1000 Series 24V dc, SMC, SV1100-5FUD

SV1100-5FUD

SMC Solenoid Valve The SMC SV1000 series 5/2 port internal pilot solenoid valve has operating pressure ranging between -100kPad and 0.7MPa. It is designed to make installation and changes simpler by utilising a multi-connector rather than the conventional lead wires for internal manifold wiring. It has cassette base type manifolds that offer great flexibility and modified sections can be added using a simple release mechanism. For ultimate flexibility, conventional tie-rod base manifolds are also available. The use of 34-pin connectors allows up to 16 stations with double solenoids. Features and Benefits Coil rated voltage is 24VDC 2-position single type actuation Light/Surge voltage suppressor Operating temperature ranging between -10°C and 50°C Push-turn locking slotted type Response time at 0.5MPa is 18 milliseconds or less Certifications IP67 rated

$154.50

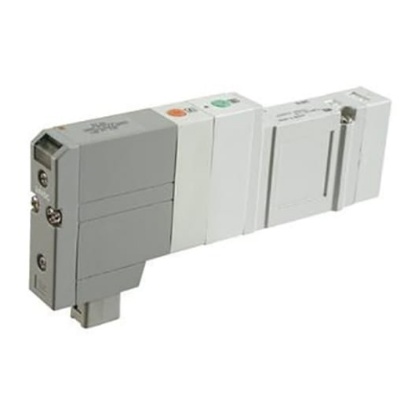

5/2 Pneumatic Solenoid Valve - Solenoid/Solenoid SV2000 Series 24V dc, SMC, SV2200R-5FU-C-C6

SV2200R-5FU-C-C6

Solenoid Valve Series SV1000 & SV2000 SMC SV Series employ multi-pin connectors in place of conventional lead wires within manifold blocks. The design of the connector-type manifold enables any changes within the manifold station to be greatly simplified. Cassette base type manifolds offer the ultimate in flexibility. Changes that are made to the set-up, whether adding to or altering the configuration, is therefore very flexible and greatly simplified, reducing system down-time. The pin configuration for parallel or serial-wired manifold blocks makes it unnecessary for the units to require disassembly. SMC SV Series

$296.60

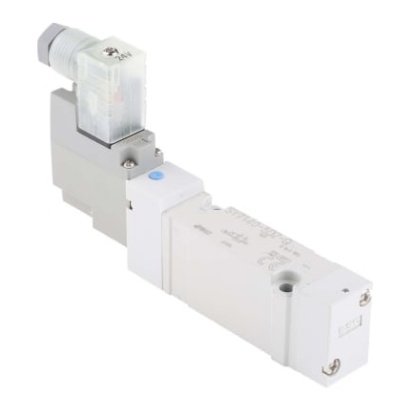

5/2 Pneumatic Solenoid Valve - Solenoid/Solenoid SY7000 Series 24V dc, SMC, SY7140-5DZ-Q

SY7140-5DZ-Q

SMC Solenoid Valve The SMC SY7000 series 5/2 ports solenoid valve has a supply voltage of 24VDC. This valve has a 1/4in Rc port connection and 2-position single type actuation. It has low power consumption and therefore decreased engineering costs. Its space-saving design means that it can be individually mounted onto sub plates or configured onto base mounted manifolds. The valve cover also uses stainless steel, which makes it stronger. This valve is available with a DIN terminal connector. Features and Benefits Solenoid power consumption is 0.35W Maximum flow rate is 1177.8NL/min Operating pressure ranges between 0.1MPa and 0.7MPa Operating temperature ranges between -10°C and 50°C Solenoid valves are extremely compact and offer high flow rates Supplied with surge voltage suppressors Certifications IP65 rated

$207.49

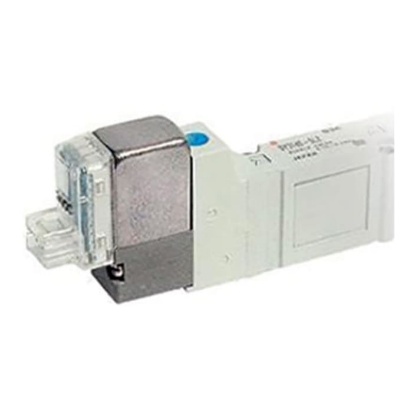

5/2 Pneumatic Solenoid Valve - Solenoid/Solenoid SY7000 Series 24V dc, SMC, SY7140-5LOU-Q

SY7140-5LOU-Q

SY7000 Valves SY7000 solenoid valves are extremely compact and offer high flow rates. They operate with reduced power consumption and have a power saving circuit to ensure energy efficiency. The valve cover also uses stainless steel and is therefore stronger. SMC SY Series

$156.64

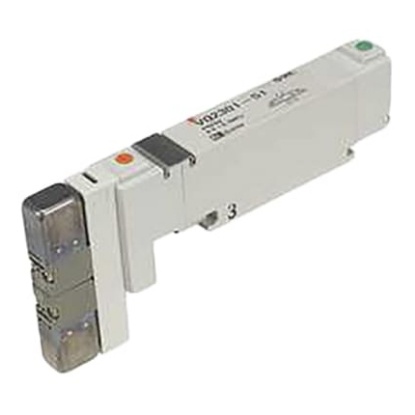

5/2 Pneumatic Solenoid Valve - Solenoid/Solenoid VQ1000 Series 24V dc, SMC, VQ1201N-51-Q

VQ1201N-51-Q

SMC VQ1000 Series VQ valves are ideal for applications requiring high speed, frequent operation, stable response time and long service life. Innovative mounting methods allow valves to be changed without entirely disassembling the manifold. Built-in one-touch fittings save piping time and labour. Fluid: air/inert gas Operating pressure range: 0.1 - 0.7MPa, (high pressure type 0.8MPa) Effective area mm ² (Cv): 2 position metal seal 14.4 (0.8); 2 position rubber seal 16.2 (0.9), 3 position metal seal 12.6 (0.7); 3 position rubber seal 14.4 (0.8) Coil rated voltage: 12, 24VDC; 100, 110, 200, 220VAC Response time (ms) standard 1W, H 1.5W: metal seal 29 or less; rubber seal 34 or less SMC VQ Series

$243.45

5/2 Pneumatic Solenoid Valve - Solenoid/Solenoid VQ2000 Series 24V dc, SMC, VQ2200N-51-Q

VQ2200N-51-Q

SMC VQ2000 Series VQ valves are ideal for applications requiring high speed, frequent operation, stable response time and long service life. Innovative mounting methods allow valves to be changed without entirely disassembling the manifold. Built-in one-touch fittings save piping time and labour. Fluid: air/inert gas Operating pressure range: 0.15 - 1.0MPa Effective area mm 2 (Cv): 2 position metal seal 36.0 (2.0); 2 position rubber seal 39.6 (2.2) 3 position metal seal 19.8 - 36.0 (1.1 - 2.0); 3 position rubber seal 21.6 - 39.6 (1.2 - 2.2) Coil rated voltage: 12, 24VDC; 100, 110, 200, 220VAC Response time (ms) standard 1W: metal seal 12 or less to 55 or less; rubber seal 15 or less to 62 or less Ambient fluid temperature: metal seal -10  50C; rubber seal -5  50C Optional IP65 enclosure SMC VQ Series

$284.00
