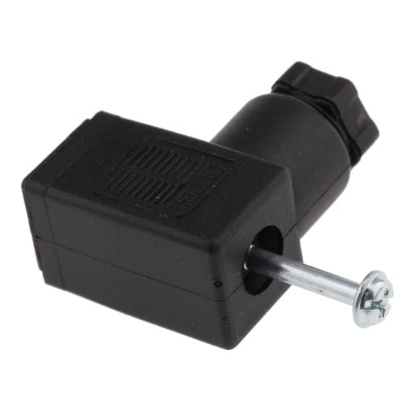

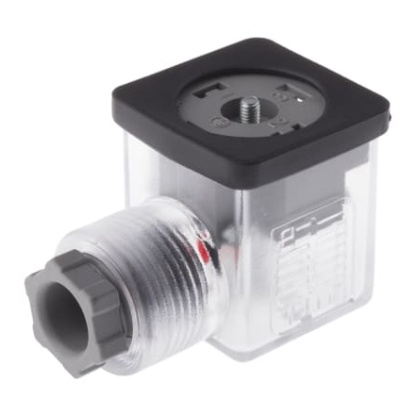

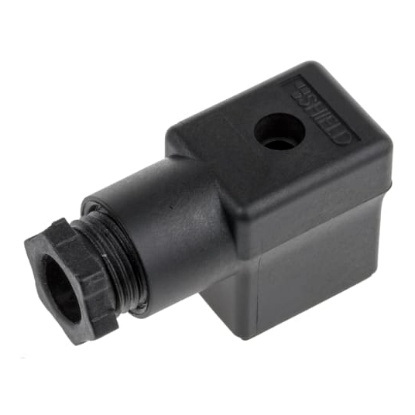

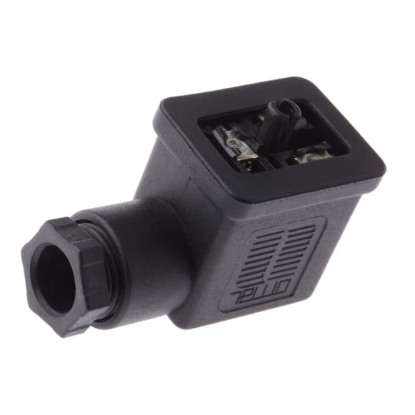

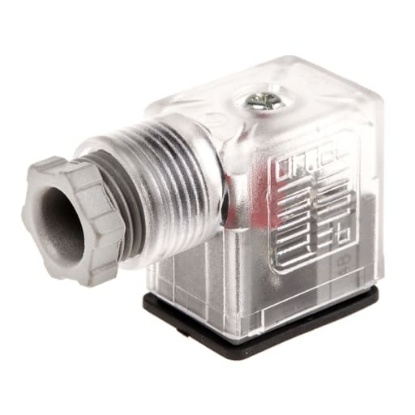

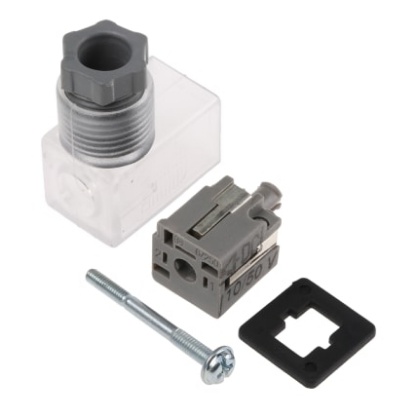

DIN 43650 Solenoid Connectors

The SMC Pneumatic Solenoid Coil Connector valves can be used singly or with a manifold system. Low power consumption enables direct operation by PLC. They have a Non locking manual override. Remote operation Fits in a variety of machinery and applications

3 Port Direct Operated Poppet Solenoid + Pilot Valves, VT317 Series A selection of direct operated 3 port poppet type solenoid operated spring return valves. Selective porting can be provided from these valves for up to 6 different valve functions. 1/ 4 in ports, tapered threads Standard DIN 43650 Electrical Connection Push button manual override Surge voltage protection Coils may be orientated at 90° increments Suitable for vacuum applications (9120857)

VZ series valves for in-line mounting Range of 5//2 and 5//3 valves with pneumatic or electrical control for in-line mounting. Connector to be ordered separately. Manual pulse control. SMC SY & VZ Series These valves can be used singly or with a manifold system. Low power consumption enables direct operation by PLC. They have a Non locking manual override.

Connector series VK3000 - New Module SMC VK3000 Series

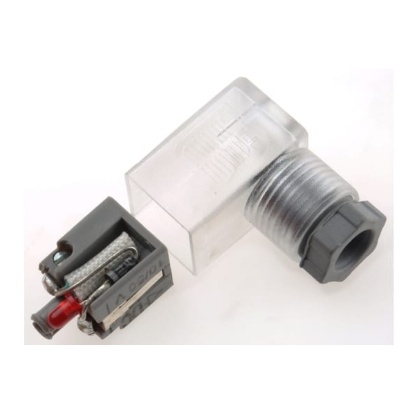

Ø4-6mm SYZ Series Valves Supplied with indicator light & surge voltage suppressor. Operating temperature: -10 to +50°C. SMC SY & VZ Series These valves can be used singly or with a manifold system. Low power consumption enables direct operation by PLC. They have a Non locking manual override.

Solenoid valves series EVT 307. Range of 3/2 valves NF, NO with direct control for assembly on line. Manual pulse control. Connector to be ordered separately.

Solenoid valves series EVT 307. Range of 3/2 valves NF, NO with direct control for assembly on line. Manual pulse control. Connector to be ordered separately.

Gradual pressurising and break valves Control solenoid valves 24 VAC or 220 Vac used for breaking or gradual pressurisation of the compressed air circuit. Manual pulse control. Low power consumption. ISO connector may be ordered separately.

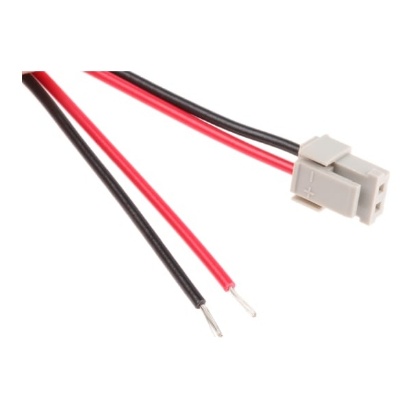

SY100 Series SY100 Series 3-port solenoid valves offer low power consumption with a long life cycle. This series of valves are compact in design offering the user flexibility while maintaining a high flow rate. SY100 solenoid valves can be used within a vacuum environment. They are also available in body ported or base mounted manifold base. Features and Benefits • High flow rate • Rubber seals • Copper free Connector Lead The connector assembly SY100-68-A-30 from SMC has a protective cover for protection from dust and other foreign matter which helps to reduce short circuit accidents. The outside cover is made from chloroprene rubber aiding with insulation and weather proofing. SMC SY Series
