Filter Regulator Lubricators
Filter regulator lubricators—commonly known as FRLs—are essential components in pneumatic systems, designed to deliver clean, regulated, and lubricated air flow. An FRL unit typically includes an air filter, a pressure regulator, and a lubricator, all working in sequence to maximise system performance and reduce risks of breakdown due to contaminants.
How an FRL functions
Each part of an FRL has a specific role within the system:
- Filter: Positioned first in the airflow path, the air filter removes contaminants such as dirt, moisture, oil, and particulates. It ensures the compressed air entering the system is clean. Different filter types are available for general use, oil separation, and moisture removal.
- Regulator: Also referred to as a pressure reducing valve (PRV), the regulator manages the system’s pressure levels. It adjusts the air pressure to ensure consistent output for downstream devices like pneumatic tools or actuators. The regulator operates using a spring-loaded diaphragm mechanism.
- Lubricator: This component adds a fine mist of oil into the air stream to lubricate moving parts in the pneumatic system. This lubrication minimises friction and wear, enhancing equipment longevity. There are two primary types: Oil-Fog and Micro-Fog, depending on the precision and application required.
1/2 in Filter Regulator Lubricator, 5μ Filtration Size Integrated Pressure Gauge, SMC, AC40A-F04-D
AC40A-F04-D
The SMC Filter Regulator Lubricator is a new AC series of modular type F.R.L. unit is available in 4 sizes and is interchangeable with the existing modular type AC line. The element and bowl on the AW and AF series is now one piece, making element replacement easier. Required maintenance space has been reduced by as much as 46 percent on the AF series, depending on the body size.
Clean looking and urban white modular design
Energy saving with high flow rate
Transparent bowl guard
Improved installation
$263.18

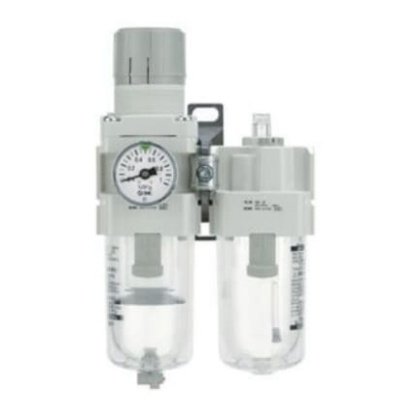

1/4 in, 1/8 in Filter Regulator Lubricator, Automatic Drain, 5μm Filtration Size - With Pressure Gauge, SMC, AC20A-F01G-A
AC20A-F01G-A
The SMC filter regulator lubricators has 1/8 pressure gauge port size and relieving type construction.
Class 1 turbine oil
$158.46
G 1 FRL Assembly, Auto Drain, 5μm Filtration Size, SMC, AC60A-F10DE-D
AC60A-F10DE-D
The SMC Air handling assembly from AC#A-D series is designed for body size 60, it comes with G type pipe threads, the port size is for this product is 1 inch. It has NO type auto float drain. This product has a square embedded type pressure gauge (with limit indicator).
The set pressure is 0.05 MPa to 0.85 MPa
It has a polycarbonate bowl, and a relieving type exhaust mechanism
$575.17
G 1 FRL Assembly, Auto Drain, 5μm Filtration Size, SMC, AC60A-F10DG-D
AC60A-F10DG-D
The SMC Air handling assembly from AC#A-D series is designed for body size 60, it comes with G type pipe threads, the port size is for this product is 1 inch. It has NO type auto float drain. This product has a round type pressure gauge (with limit indicator).
The set pressure is 0.05 MPa to 0.85 MPa
It has a polycarbonate bowl, and a relieving type exhaust mechanism
$575.17
G 1 FRL Assembly, Auto Drain, 5μm Filtration Size, SMC, AC60-F10DE-D
AC60-F10DE-D
The SMC Air handling assembly from AC#-D series comes with G type pipe threads, the port size is for this product is 1 inch. It has NO type auto float drain. This product has a square embedded type pressure gauge (with limit indicator).
The set pressure is 0.05 MPa to 0.85 MPa
It has a polycarbonate bowl, and a relieving type exhaust mechanism
$725.22

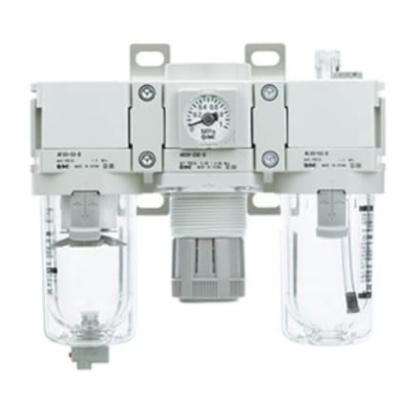

G 1 FRL Assembly, Auto Drain, 5μm Filtration Size, SMC, AC60-F10DG-D
AC60-F10DG-D
The SMC Air handling assembly from AC#-D series comes with G type pipe threads, the port size is for this product is 1 inch. It has NO type auto float drain. This product has a round type pressure gauge (with limit indicator).
The set pressure is 0.05 MPa to 0.85 MPa
It has a polycarbonate bowl, and a relieving type exhaust mechanism
$725.22
G 1 FRL Assembly, None Drain, 5μm Filtration Size, SMC, AC60A-F10E-D
AC60A-F10E-D
The SMC Air handling assembly from AC#A-D series is designed for body size 60, it comes with G type pipe threads, the port size is for this product is 1 inch. It has no auto float drain. This product has a square embedded type pressure gauge (with limit indicator).
The set pressure is 0.05 MPa to 0.85 MPa
It has a polycarbonate bowl, and a relieving type exhaust mechanism
$506.57
G 1 FRL Assembly, None Drain, 5μm Filtration Size, SMC, AC60A-F10G-D
AC60A-F10G-D
The SMC Air handling assembly from AC#A-D series is designed for body size 60, it comes with G type pipe threads, the port size is for this product is 1 inch. It has no auto float drain. This product has a round type pressure gauge (with limit indicator).
The set pressure is 0.05 MPa to 0.85 MPa
It has a polycarbonate bowl, and a relieving type exhaust mechanism
$506.53
G 1 FRL Assembly, None Drain, 5μm Filtration Size, SMC, AC60-F10E-D
AC60-F10E-D
The SMC Air handling assembly from AC#-D series comes with G type pipe threads, the port size is for this product is 1 inch. It has no auto float drain. This product has a square embedded type pressure gauge (with limit indicator).
The set pressure is 0.05 MPa to 0.85 MPa
It has a polycarbonate bowl, and a relieving type exhaust mechanism
$656.65
G 1/2 Filter Regulator Lubricator, 5μ Filtration Size Integrated Pressure Gauge, SMC, AC40A-F04G-A
AC40A-F04G-A
The SMC combo modular from SMC Pneumatics is a versatile and efficient modular type F.R.L. unit. Designed for energy saving with a high flow rate, this unit features a clean looking urban white design, transparent bowl guard, and interchangeable spacer for modular connections. With reduced maintenance space and easy element replacement, the AC series offers a modern and practical choice for your pneumatic automation needs.
Modular design for air filter, regulator, and lubricator unit
Energy saving with high flow rate
Clean urban white base color
Easy element replacement with one-piece element and bowl
Transparent bowl guard for 360-degree visibility
Interchangeable spacer for modular connection
Rc, G or NPT threads for improved installation
$259.90

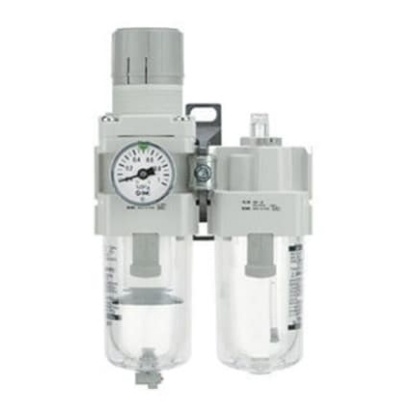

G 1/2 Filter Regulator Lubricator, 5μ Filtration Size, SMC, AC40A-F04D-A
AC40A-F04D-A
The SMC Filter Regulator Lubricator is a new AC series of modular type F.R.L. unit is available in 4 sizes and is interchangeable with the existing modular type AC line. The element and bowl on the AW and AF series is now one piece, making element replacement easier. Required maintenance space has been reduced by as much as 46 percent on the AF series, depending on the body size.
Clean looking and urban white modular design
Energy saving with high flow rate
Transparent bowl guard
Improved installation
$298.23

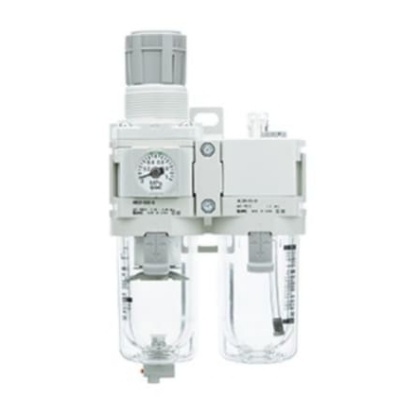

G 1/2 FRL Assembly, Auto Drain, 5μm Filtration Size, SMC, AC40A-F04DE-D
AC40A-F04DE-D
The SMC Air handling assembly from AC#A-D series is designed for body size 40, it comes with G type pipe threads, the port size is for this product is 1/2 inch. It has NO type auto float drain. This product has a square embedded type pressure gauge (with limit indicator).
The set pressure is 0.05 MPa to 0.85 MPa
It has a polycarbonate bowl, and a relieving type exhaust mechanism
$365.01
