Robot Grippers

THE SMC MAGNETIC GRIPPER used for collaborative robots. It attracts and holds heavy objects with a magnet. This gripper supports work pieces with holes and uneven surfaces. It is compact with high holding force upto 200 N (Ø 25, Work piece thickness 6 mm). Fluid air Proof pressure 0.9 MPa Ambient and fluid temperatures −10 to 50 °C (No freezing) Weight 590 g

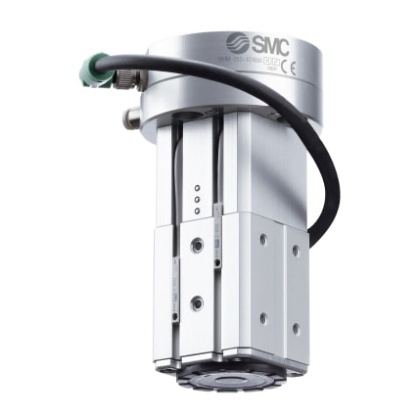

THE SMC MAGNET GRIPPER is for collaborative robots. It attracts and holds heavy objects with a magnet. It supports workpieces with holes and uneven surface. This gripper continues to hold workpieces even when the air is shut off. It operate by simply connecting 1 air supply tube and an electrical wiring M12 connector. It has integrated solenoid valve, auto switch, and piston speed adjustment mechanism. Fluid Air Action Double acting Operating pressure 0.2 to 0.6 MPa Proof pressure 0.9 MPa Residual holding force 0.3 N Lubrication Non-lube Weight 780 g

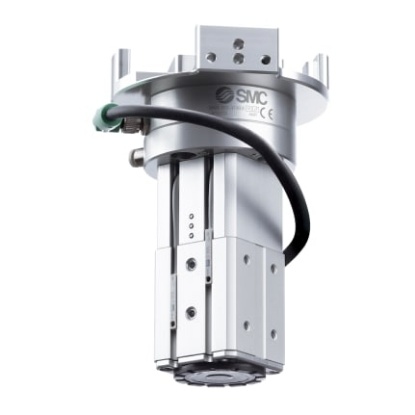

THE SMC MAGNET GRIPPER is for collaborative robots. It attracts and holds heavy objects with a magnet. It supports workpieces with holes and uneven surface. This gripper continues to hold workpieces even when the air is shut off. It operate by simply connecting 1 air supply tube and an electrical wiring M8 connector. It has integrated solenoid valve, auto switch, and piston speed adjustment mechanism. Fluid Air Action Double acting Operating pressure 0.2 to 0.6 MPa Proof pressure 0.9 Mpa Lubrication Non-lube Weight 590 g

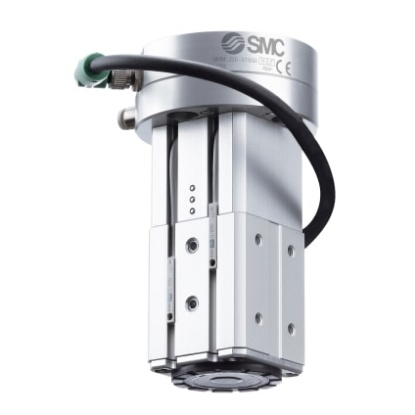

THE SMC MAGNET GRIPPER is for collaborative robots. It attracts and holds heavy objects with a magnet. It supports workpieces with holes and uneven surface. This gripper continues to hold workpieces even when the air is shut off. It operate by simply connecting 1 air supply tube and an electrical wiring connector. It has integrated solenoid valve, auto switch, and piston speed adjustment mechanism. Fluid Air Action Double acting Operating pressure 0.2 to 0.6 MPa Proof pressure 0.9 Mpa Lubrication Non-lube Weight 800 g

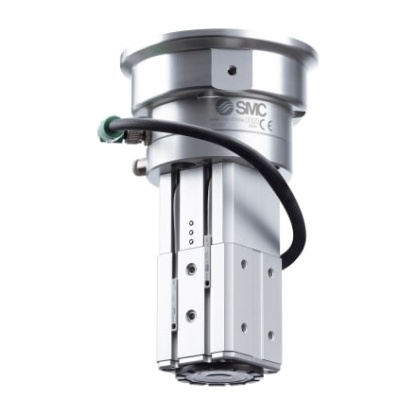

THE SMC MAGNET GRIPPER is for collaborative robots. It attracts and holds heavy objects with a magnet. It supports workpieces with holes and uneven surface. This gripper continues to hold workpieces even when the air is shut off. It operate by simply connecting 1 air supply tube and an electrical wiring M8 connector. It has integrated solenoid valve, auto switch, and piston speed adjustment mechanism. Fluid Air Action Double acting Operating pressure 0.2 to 0.6 MPa Proof pressure 0.9 Mpa Lubrication Non-lube Weight 590 g

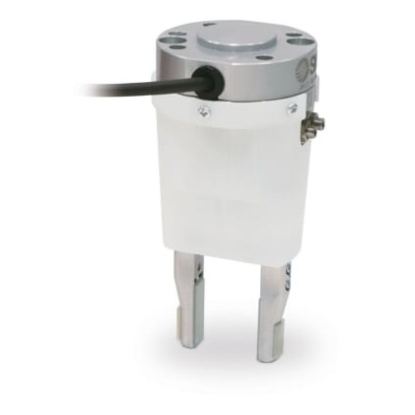

THE SMC AIR GRIPPER UNIT used for collaborative robots. It is compact, lightweight product with high gripping force due to air operation. This gripper operate by simply connecting 1 air supply tube and an electrical wiring M8 connector. It has integrated solenoid valve and speed adjustment mechanism. Bore size 16 mm Fluid air Repeatability ±0.01 mm Weight 430 g

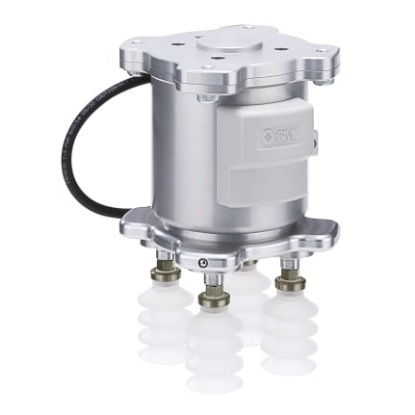

THE SMC VACUUM GRIPPER UNIT used for collaborative robots. It operate by simply connecting 1 compressed air supply tube and an electrical wiring M8 connector. It has integrated vacuum ejector, air supply/release valve, pressure sensor, and pads. Fluid air Operating temperature range 5 to 50 °C Weight 840 g Max. work load 7 Kg Power supply voltage 24 VDC ±10 %
