Air Reservoirs
Air reservoirs are essential in pneumatic systems where controlling airflow and stabilizing pressure variations is required.
How do air reservoirs function?
Air reservoirs help manage pressure instability within pneumatic circuits. Compressed air is introduced into the reservoir via a flow valve, where it is stored until it is needed and released at a predetermined moment.
Applications of air reservoirs
Reservoirs release air to stabilize pressure within the system. Common uses include:
- Acting as a pressure accumulator during sudden pressure drops
- Creating extended time delays in coordination with flow control or time delay valves
- Forming a controlled system with a first-order delay response
- Producing static pressure when used with a one-way flow control valve
To protect equipment downstream from pressure spikes or enhance actuator force, a combination with a pressure regulator can be employed.
Air Reservoir 10 l, G 1/2, VBAT Series, 20bar, SMC, VBAT10AF-SV-Q
VBAT10AF-SV-Q
Small capacity air tank to which a booster valve can be connected
Tank capacity: 5 L, 10 L , 20 L, 38 L
Material: carbon steel or stainless steel (SUS304)
Connection port sizes [Rc(PT)]: 3/8, 1/2, 3/4
$1,284.17

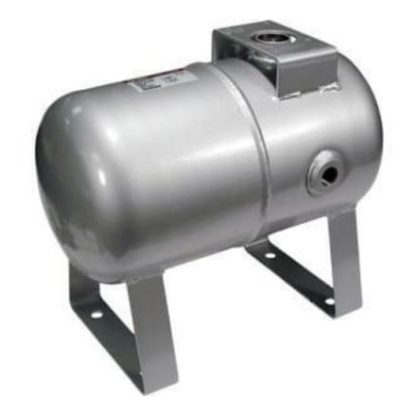

Air Reservoir 10L, G 1/2, VBAT Series, 2MPa, SMC, VBAT10A-SV-Q
VBAT10A-SV-Q
The SMC booster regulator increase factory air pressure by up to 4 times. It reduce heat generation. It is easy to install. It reduce noise and improve service life.
No power supply or wiring needed
Air-only operation
Low heat generation
$1,464.09

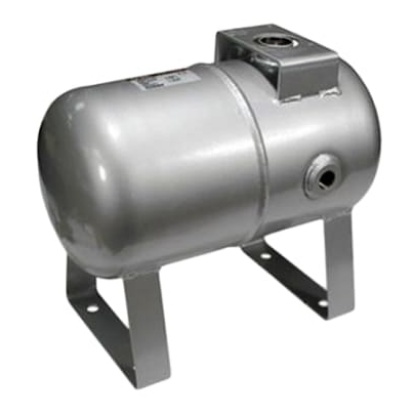

Air Reservoir 10L, G 3/8, VBAT Series, 2MPa, SMC, VBAT05AF-SV-Q
VBAT05AF-SV-Q
VBAT Air Tank
The VBAT pneumatic air storage tank can be used as a standalone air tank or with a booster regulator to increase the pressure within a pneumatic system. Manufactured from SS400 carbon steel and treated inside with a rustproof paint.
G 3/8” ports
Drain valve
2 MPa safety valve
$862.34
Air Reservoir 20L, Rc 1/2, VBAT Series, 2MPa, SMC, VBAT20AF-RV-Q
VBAT20AF-RV-Q
The SMC specialty regulator is a booster regulator that saves money and energy by increasing the main line pressure up to two times. The booster regulator, when connected to air supply line, increases pressure up to two times and the main air supply press
Easy adjustment of output pressure
Improved performance over previous designs
$1,662.90

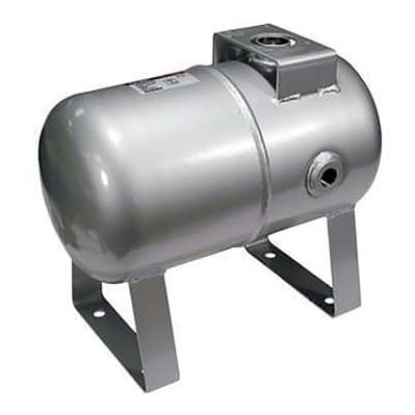

Air Reservoir 38 l, G 3/4, VBAT Series, 10bar, SMC, VBAT38AF-RV-Q
VBAT38AF-RV-Q
Small capacity air tank to which a booster valve can be connected
Tank capacity: 5 L, 10 L , 20 L, 38 L
Material: carbon steel or stainless steel (SUS304)
Connection port sizes [Rc(PT)]: 3/8, 1/2, 3/4
$2,296.89
