Shock Absorbers
Shock absorbers are mechanisms designed to decelerate a moving object gently and gradually. They can function using either hydraulic fluid or compressed air and are utilized in numerous industrial and commercial settings. Pneumatic Resources supplies a selection of premium pneumatic shock absorbers, stopper collars, and mounting solutions from the trusted brand SMC.
How does a shock absorber function?
Shock absorbers are sealed units that rely on pressurized oil or air to create a cushioning or damping effect. This fluid or gas is pushed through internal valves that restrict flow, effectively absorbing kinetic energy, which is then safely released into the atmosphere.
Common uses for shock absorbers
These devices are implemented across various industries wherever impact energy needs to be absorbed. Common applications include:
- Vehicle suspension systems
- Automated machinery
- Robotic assemblies
- Pneumatic and hydraulic cylinders
- Systems requiring vibration isolation
- Vending and dispensing units
- Pumping systems and motors
- Linear motion actuators
Different kinds of shock absorbers
Shock absorbers are available in adjustable or self-adjusting formats. Adjustable models include a manual dial to fine-tune the response to the load. Self-compensating variants generally employ hydraulic oil that moves through precision orifices as the piston compresses.

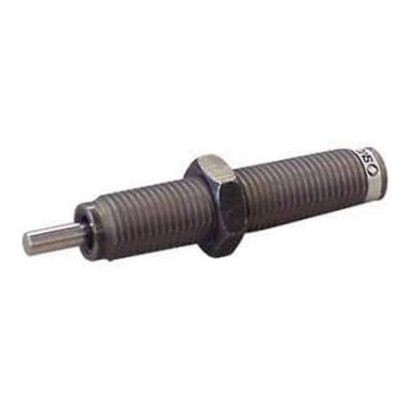

Shock Absorber, , 124mm Body Length, SMC, RBC2725
RBC2725
The SMC shock absorbers with an acceptable eccentric angle of 5° are designed for effective impact and noise absorption, making them suitable for absorbing rotation energy.
Usable without a stopper nut
$228.78
Shock Absorber, , 129.5mm Body Length, 27mm Thread Size, SMC, RBLC2725
RBLC2725
The SMC coolant resistant shock absorber can be operated in an environment exposed to nonwater soluble cutting oil.
–10 to 80 °C allowable temperature
$398.14

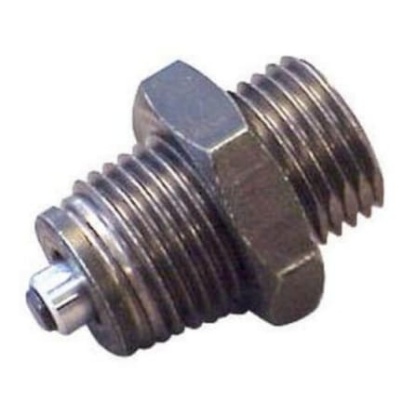

Shock Absorber, , 27mm Body Length, M16 X 1.5mm Thread Size, SMC, RBQC1604
RBQC1604
The SMC short style shock absorber has 4 mm stroke absorption 0.05 to 3 m/s impact speed.
Ideal for absorption of rotation energy
$130.72

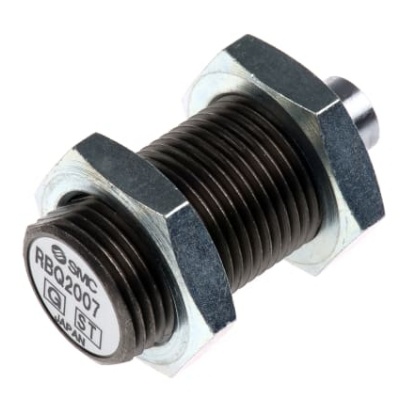

Shock Absorber, , 37.5mm Body Length, SMC, RBQ2007
RBQ2007
SMC RB Self Compensating Shock Absorber - Compact
Self Compensating
These shock absorbers have a steel body with Weartec - Plus (harsh environment) finish, hardened stainless steel piston rod, locknut and hardened steel rod end button with insert for noise suppression. Universal mounting and stop collar attachments are available separately.
$124.36

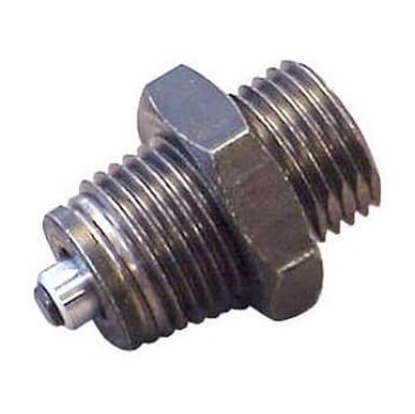

Shock Absorber, , 37.5mm Body Length, SMC, RBQC2007
RBQC2007
The RBQ shock absorber has a double seal enclosure that consists of a scraper and a rod seal, provides extra insurance against leakage. RBQ has a compact design and an interchangeable damper as an option. The RBQ series shock absorbers are available in five sizes and all withstand an impact speed of 3 m/sec.
$143.62
Shock Absorber, , 40.8mm Body Length, 8mm Thread Size, SMC, RJ0805U
RJ0805U
The SMC RJ is a soft type shock absorber. It has interchangeable mounting.
Improved durability
Rich variation
$125.48

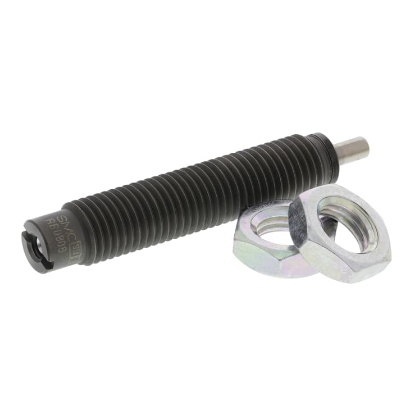

Shock Absorber, , 40.8mm Body Length, SMC, RB0806
RB0806
SMC RB Self Compensating Shock Absorbers
Automatically adjusts for high speed low load or low speed high load applications
Maximum impact speed 5m/s
At max energy absorption per cycle, max operating cycle/min can increase in proportion to energy absorption
Ambient temperature -10°C to +80°C
Self Compensating
These shock absorbers have a steel body with Weartec - Plus (harsh environment) finish, hardened stainless steel piston rod, locknut and hardened steel rod end button with insert for noise suppression. Universal mounting and stop collar attachments are available separately.
$117.08
Shock Absorber, , 40.8mm Body Length, SMC, RB1007
RB1007
SMC RB Self Compensating Shock Absorbers
Automatically adjusts for high speed low load or low speed high load applications
Maximum impact speed 5m/s
At max energy absorption per cycle, max operating cycle/min can increase in proportion to energy absorption
Ambient temperature -10°C to +80°C
Self Compensating
These shock absorbers have a steel body with Weartec - Plus (harsh environment) finish, hardened stainless steel piston rod, locknut and hardened steel rod end button with insert for noise suppression. Universal mounting and stop collar attachments are available separately.
$117.08
Shock Absorber, , 40.8mm Body Length, SMC, RJ0806HU
RJ0806HU
The SMC RJ series soft type shock absorber designed initially for use with our air slide table, rodless and rotary cylinder ranges. It ensures softer absorption making it ideal for small conveyors which often require soft stop performance. Its fully interchangeable with our existing and its offer outstanding durability and a 30% reduction in cushioning time.
Improved durability
Stops transported objects softly
Ambient temperature from −10°C to 60°C
$132.26
Shock Absorber, , 40.8mm Body Length, SMC, RJ0806L
RJ0806L
The SMC RJ series soft type shock absorber designed initially for use with our air slide table, rodless and rotary cylinder ranges. It ensures softer absorption making it ideal for small conveyors which often require soft stop performance. Its fully interchangeable with our existing and its offer outstanding durability and a 30% reduction in cushioning time.
Ambient temperature −10[°C to 60°C (No freezing)
Improved durability
Two types of absorbed energy are available as standard
$129.48
Shock Absorber, , 44mm Body Length, M25 X 1.5mm Thread Size, SMC, RBQC2508
RBQC2508
The SMC short style shock absorber has 4 mm stroke absorption 0.05 to 3 m/s impact speed.
Ideal for absorption of rotation energy
$173.40

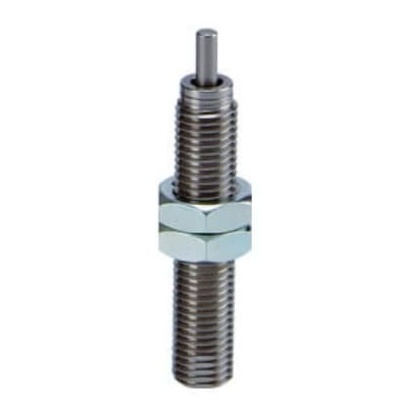

Shock Absorber, , 45.3mm Body Length, M10 x 1mm Thread Size, SMC, RJ1007LU
RJ1007LU
The SMC RJ is a soft type shock absorber. It has interchangeable mounting.
Improved durability
Rich variation
$133.89
