Shock Absorbers
Shock absorbers are mechanisms designed to decelerate a moving object gently and gradually. They can function using either hydraulic fluid or compressed air and are utilized in numerous industrial and commercial settings. Pneumatic Resources supplies a selection of premium pneumatic shock absorbers, stopper collars, and mounting solutions from the trusted brand SMC.
How does a shock absorber function?
Shock absorbers are sealed units that rely on pressurized oil or air to create a cushioning or damping effect. This fluid or gas is pushed through internal valves that restrict flow, effectively absorbing kinetic energy, which is then safely released into the atmosphere.
Common uses for shock absorbers
These devices are implemented across various industries wherever impact energy needs to be absorbed. Common applications include:
- Vehicle suspension systems
- Automated machinery
- Robotic assemblies
- Pneumatic and hydraulic cylinders
- Systems requiring vibration isolation
- Vending and dispensing units
- Pumping systems and motors
- Linear motion actuators
Different kinds of shock absorbers
Shock absorbers are available in adjustable or self-adjusting formats. Adjustable models include a manual dial to fine-tune the response to the load. Self-compensating variants generally employ hydraulic oil that moves through precision orifices as the piston compresses.

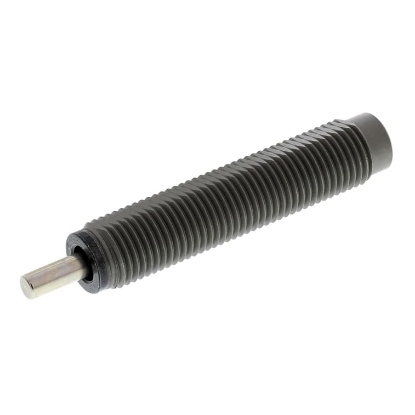

Shock Absorber, , 67.3mm Body Length, SMC, RB1412
RB1412
SMC RB Self Compensating Shock Absorbers
Automatically adjusts for high speed low load or low speed high load applications
Maximum impact speed 5m/s
At max energy absorption per cycle, max operating cycle/min can increase in proportion to energy absorption
Ambient temperature -10°C to +80°C
Self Compensating
These shock absorbers have a steel body with Weartec - Plus (harsh environment) finish, hardened stainless steel piston rod, locknut and hardened steel rod end button with insert for noise suppression. Universal mounting and stop collar attachments are available separately.
$169.61

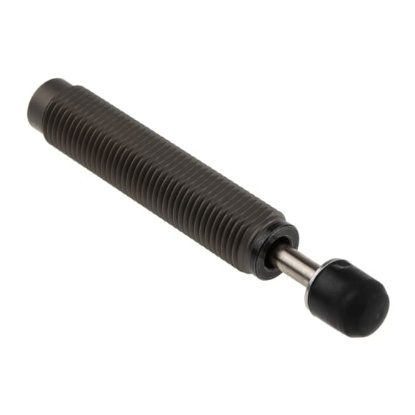

Shock Absorber, , 67.3mm Body Length, SMC, RBC1412
RBC1412
SMC RB Self Compensating Shock Absorbers
Automatically adjusts for high speed low load or low speed high load applications
Maximum impact speed 5m/s
At max energy absorption per cycle, max operating cycle/min can increase in proportion to energy absorption
Ambient temperature -10°C to +80°C
Self Compensating
These shock absorbers have a steel body with Weartec - Plus (harsh environment) finish, hardened stainless steel piston rod, locknut and hardened steel rod end button with insert for noise suppression. Universal mounting and stop collar attachments are available separately.
$188.03
Shock Absorber, , 72.1mm Body Length, SMC, RBL1412
RBL1412
The SMC RBL series coolant resistant shock absorber can be operated in an environment exposed to non-water soluble cutting oil. Scraper and rod seal combine to form a double seal enclosure preventing cutting oil from entering inside. It has a specially designed orifice that compensate for varying speed and loads to consistently decelerate loads without requiring additional adjustment.
Impact and noise absorption
Compact style that has been shortened lengthwise
Allowable eccentric angle 5° suitable for absorption of rotation energy
$221.19

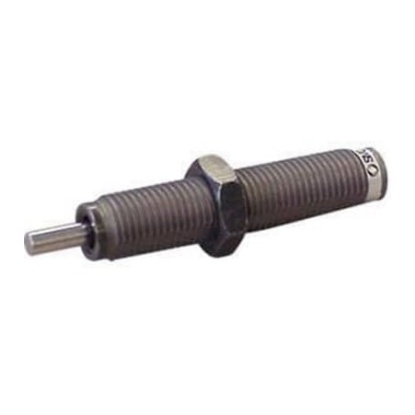

Shock Absorber, , 72.1mm Body Length, SMC, RBLC1412
RBLC1412
The SMC RB shock absorber has a specially designed orifice that compensate for varying speed and loads to consistently decelerate loads without requiring additional adjustment. The double seal enclosure consists of a scraper and a rod seal, provides extra insurance against leakage.
Shock absorber type basic or with cap
$264.00

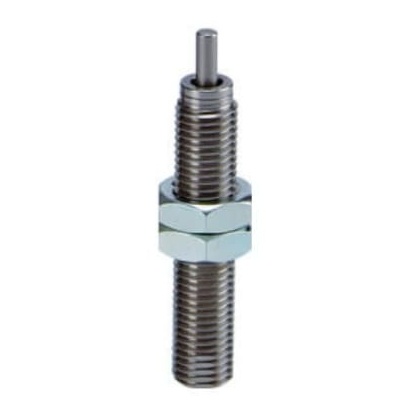

Shock Absorber, , 73.2mm Body Length, M20mm Thread Size, SMC, RJ2015HU
RJ2015HU
The SMC RJ is a soft type shock absorber. It has interchangeable mounting.
Improve durability
Maximum operating cycle
$202.19

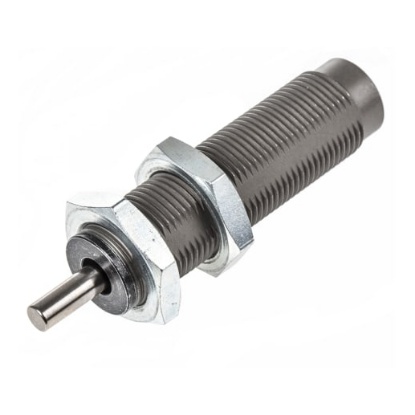

Shock Absorber, , 73.2mm Body Length, SMC, RB2015
RB2015
SMC RB Self Compensating Shock Absorbers
Automatically adjusts for high speed low load or low speed high load applications
Maximum impact speed 5m/s
At max energy absorption per cycle, max operating cycle/min can increase in proportion to energy absorption
Ambient temperature -10°C to +80°C
Self Compensating
These shock absorbers have a steel body with Weartec - Plus (harsh environment) finish, hardened stainless steel piston rod, locknut and hardened steel rod end button with insert for noise suppression. Universal mounting and stop collar attachments are available separately.
$226.53

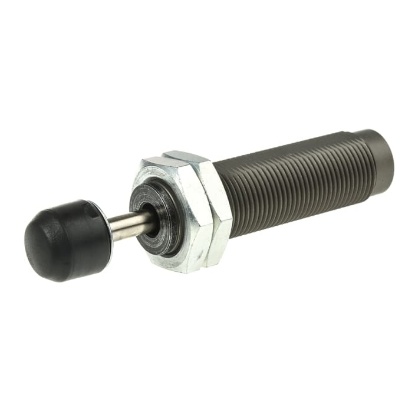

Shock Absorber, , 73.2mm Body Length, SMC, RBC2015
RBC2015
SMC RB Self Compensating Shock Absorbers
Automatically adjusts for high speed low load or low speed high load applications
Maximum impact speed 5m/s
At max energy absorption per cycle, max operating cycle/min can increase in proportion to energy absorption
Ambient temperature -10°C to +80°C
Self Compensating
These shock absorbers have a steel body with Weartec - Plus (harsh environment) finish, hardened stainless steel piston rod, locknut and hardened steel rod end button with insert for noise suppression. Universal mounting and stop collar attachments are available separately.
$214.78
Shock Absorber, , 73.8mm Body Length, SMC, RBL2015
RBL2015
The SMC RBL series coolant resistant shock absorber can be operated in an environment exposed to non-water soluble cutting oil. Scraper and rod seal combine to form a double seal enclosure preventing cutting oil from entering inside. It has a specially designed orifice that compensate for varying speed and loads to consistently decelerate loads without requiring additional adjustment.
Impact and noise absorption
Compact style that has been shortened lengthwise
Allowable eccentric angle 5° suitable for absorption of rotation energy
$272.03
Shock Absorber, , 73.8mm Body Length, SMC, RBLC2015
RBLC2015
The SMC RBL series coolant resistant shock absorber with cap can be operated in an environment exposed to non-water soluble cutting oil. Scraper and rod seal combine to form a double seal enclosure preventing cutting oil from entering inside. It has a specially designed orifice that compensate for varying speed and loads to consistently decelerate loads without requiring additional adjustment.
Impact and noise absorption
Compact style that has been shortened lengthwise
Allowable eccentric angle 5° suitable for absorption of rotation energy
$306.46
Shock Absorber, , 86mm Body Length, M27 X 1.5mm Thread Size, SMC, RBC2725SJ
RBC2725SJ
The SMC RB shock absorber is ideal for absorption of rotational energy. It can be use without a stopper nut.
Impact and noise absorption
Compact style that has been shortened lengthwise
$280.44
Shock Absorber, , 99mm Body Length, SMC, RB2725
RB2725
SMC RB Self Compensating Shock Absorbers
Automatically adjusts for high speed low load or low speed high load applications
Maximum impact speed 5m/s
At max energy absorption per cycle, max operating cycle/min can increase in proportion to energy absorption
Ambient temperature -10°C to +80°C
Self Compensating
These shock absorbers have a steel body with Weartec - Plus (harsh environment) finish, hardened stainless steel piston rod, locknut and hardened steel rod end button with insert for noise suppression. Universal mounting and stop collar attachments are available separately.
$179.74
Shock Absorber, , 99mm Body Length, SMC, RB2725S
RB2725S
Shock absorber type: basic or with cap
Applicable thread O.D. size: M6, M8, M10, M14, M20, M27
Option: stopper nut
$282.29
