Linear Actuator Switches

Reed detector D-Z73 Reed detector for cylinder with integral mount Can be used with the following cylinder series: MGQ, MVGQ, MGP, CXS, RHS, MY1, etc. Group and Category II 3GD EEx nA II T5X

CDJ5D Reed Switch For use with CDJ5D double-acting cylinders Complete with 3m flying lead Mounting bands supplied separately IP67 Rating Temperature range: -10 to 60°C

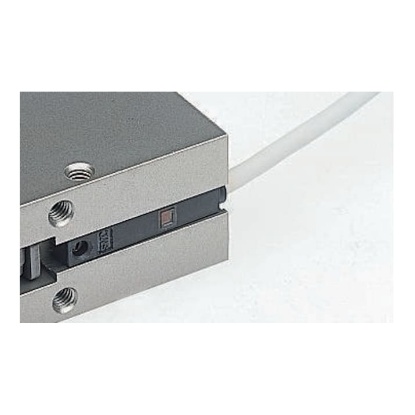

Sensors A range of sensors enabling position detection of RS air grippers. The autoswitch is mounted within the mounting groove on the side of the grippers. Note If an autoswitch is used with a gripper, the through holes cannot be used for mounting the gripper. Sensors include an LED to indicate operation.

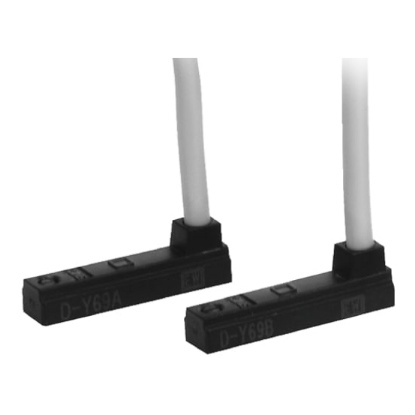

D-Y6 Reed Switch

Sensors Available as reed or solid state Function N/O IP67 rated Supplied with 0.5m of cable Note No fixing screw and plate included for the switch.

Sensors Available as reed or solid state Function N/O IP67 rated Supplied with 0.5m of cable Note No fixing screw and plate included for the switch.

Sensors Available as reed or solid state Function N/O IP67 rated Supplied with 0.5m of cable Note No fixing screw and plate included for the switch.

Reed Auto Switch Direct mounting auto reed switches from SMC. This reed switch is magnetic field resistant and heat resistant. Designed for use with air cylinders, this model does not have the indicator light. These switches have a rugged design and a 1Ω or less internal resistance. IP 67 Rating 0°C to 60°C Temperature Rating

Magnetic sensors Magnetic sensors for cylinders series (E) CQ2B. Reed contact version with embedded wires or 3 PNP wires. Direct attachment on the cylinder. LED status display.

Sensors A range of sensors enabling position detection of RS air grippers. The autoswitch is mounted within the mounting groove on the side of the grippers. Note If an autoswitch is used with a gripper, the through holes cannot be used for mounting the gripper. Sensors include an LED to indicate operation.

Sensors A range of sensors enabling position detection of RS air grippers. The autoswitch is mounted within the mounting groove on the side of the grippers. Note If an autoswitch is used with a gripper, the through holes cannot be used for mounting the gripper. Sensors include an LED to indicate operation.

Sensors A series of reed switches from SMC. These direct mounting style auto switches are suitable for use with air cylinders and are available with or without indicator light.
