Filter Regulator Lubricators

Filter regulator lubricators—commonly known as FRLs—are essential components in pneumatic systems, designed to deliver clean, regulated, and lubricated air flow. An FRL unit typically includes an air filter, a pressure regulator, and a lubricator, all working in sequence to maximise system performance and reduce risks of breakdown due to contaminants.

How an FRL functions

Each part of an FRL has a specific role within the system:

  • Filter: Positioned first in the airflow path, the air filter removes contaminants such as dirt, moisture, oil, and particulates. It ensures the compressed air entering the system is clean. Different filter types are available for general use, oil separation, and moisture removal.
  • Regulator: Also referred to as a pressure reducing valve (PRV), the regulator manages the system’s pressure levels. It adjusts the air pressure to ensure consistent output for downstream devices like pneumatic tools or actuators. The regulator operates using a spring-loaded diaphragm mechanism.
  • Lubricator: This component adds a fine mist of oil into the air stream to lubricate moving parts in the pneumatic system. This lubrication minimises friction and wear, enhancing equipment longevity. There are two primary types: Oil-Fog and Micro-Fog, depending on the precision and application required.
View as Grid List
Sort by
Display per page

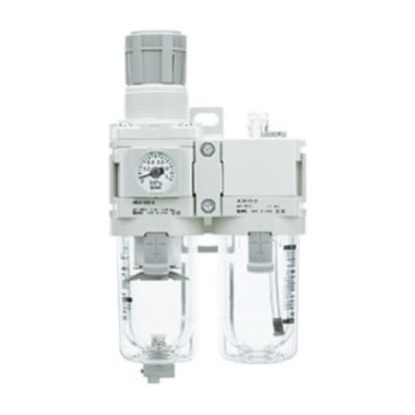

Picture of G 1/8 FRL Assembly, Auto Drain, 5μm Filtration Size, SMC, AC20A-F01CE-D

G 1/8 FRL Assembly, Auto Drain, 5μm Filtration Size, SMC, AC20A-F01CE-D

AC20A-F01CE-D
The SMC Air handling assembly from AC#A-D series is designed for body size 20, it comes with G type pipe threads, the port size is for this product is 1/8 inch. It has NC type auto float drain. This product has a square embedded type pressure gauge (with limit indicator). The set pressure is 0.05 MPa to 0.85 MPa It has a polycarbonate bowl, and a relieving type exhaust mechanism
$206.54
Picture of G 1/8 FRL Assembly, Auto Drain, 5μm Filtration Size, SMC, AC20A-F01CG-D

G 1/8 FRL Assembly, Auto Drain, 5μm Filtration Size, SMC, AC20A-F01CG-D

AC20A-F01CG-D
The SMC Air handling assembly from AC#A-D series is designed for body size 20, it comes with G type pipe threads, the port size is for this product is 1/8 inch. It has NC type auto float drain. This product has a round type pressure gauge (with limit indicator). The set pressure is 0.05 MPa to 0.85 MPa It has a polycarbonate bowl, and a relieving type exhaust mechanism
$206.54
Picture of G 1/8 FRL Assembly, Auto Drain, 5μm Filtration Size, SMC, AC20-F01CE-D

G 1/8 FRL Assembly, Auto Drain, 5μm Filtration Size, SMC, AC20-F01CE-D

AC20-F01CE-D
The SMC Air handling assembly from AC#-D series comes with G type pipe threads, the port size is for this product is 1/8 inch. It has NC type auto float drain. This product has a square embedded type pressure gauge (with limit indicator). The set pressure is 0.05 MPa to 0.85 MPa It has a polycarbonate bowl, and a relieving type exhaust mechanism
$232.51
Picture of G 1/8 FRL Assembly, Auto Drain, 5μm Filtration Size, SMC, AC20-F01CG-D

G 1/8 FRL Assembly, Auto Drain, 5μm Filtration Size, SMC, AC20-F01CG-D

AC20-F01CG-D
The SMC Air handling assembly from AC#-D series comes with G type pipe threads, the port size is for this product is 1/8 inch. It has NC type auto float drain. This product has a round type pressure gauge (with limit indicator). The set pressure is 0.05 MPa to 0.85 MPa It has a polycarbonate bowl, and a relieving type exhaust mechanism
$235.24
Picture of G 1/8 FRL Assembly, None Drain, 5μm Filtration Size, SMC, AC20A-F01E-D

G 1/8 FRL Assembly, None Drain, 5μm Filtration Size, SMC, AC20A-F01E-D

AC20A-F01E-D
The SMC Air handling assembly from AC#A-D series is designed for body size 20, it comes with G type pipe threads, the port size is for this product is 1/8 inch. It has no auto float drain. This product has a square embedded type pressure gauge (with limit indicator). The set pressure is 0.05 MPa to 0.85 MPa It has a polycarbonate bowl, and a relieving type exhaust mechanism
$167.91
Picture of G 1/8 FRL Assembly, None Drain, 5μm Filtration Size, SMC, AC20A-F01G-D

G 1/8 FRL Assembly, None Drain, 5μm Filtration Size, SMC, AC20A-F01G-D

AC20A-F01G-D
The SMC Air handling assembly from AC#A-D series is designed for body size 20, it comes with G type pipe threads, the port size is for this product is 1/8 inch. It has no auto float drain. This product has a round type pressure gauge (with limit indicator). The set pressure is 0.05 MPa to 0.85 MPa It has a polycarbonate bowl, and a relieving type exhaust mechanism
$167.91
Picture of G 1/8 FRL Assembly, None Drain, 5μm Filtration Size, SMC, AC20-F01E-D

G 1/8 FRL Assembly, None Drain, 5μm Filtration Size, SMC, AC20-F01E-D

AC20-F01E-D
The SMC Air handling assembly from AC#-D series comes with G type pipe threads, the port size is for this product is 1/8 inch. It has no auto float drain. This product has a square embedded type pressure gauge (with limit indicator). The set pressure is 0.05 MPa to 0.85 MPa It has a polycarbonate bowl, and a relieving type exhaust mechanism
$196.64

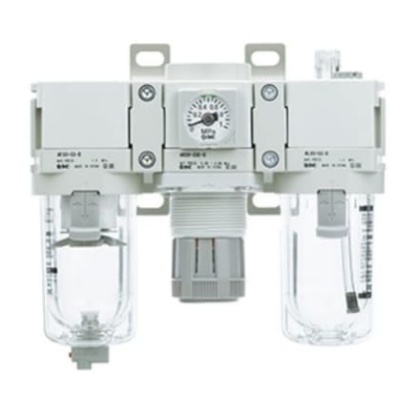

Picture of G 1/8 FRL Assembly, None Drain, 5μm Filtration Size, SMC, AC20-F01G-D

G 1/8 FRL Assembly, None Drain, 5μm Filtration Size, SMC, AC20-F01G-D

AC20-F01G-D
The SMC Air handling assembly from AC#-D series comes with G type pipe threads, the port size is for this product is 1/8 inch. It has no auto float drain. This product has a round type pressure gauge (with limit indicator). The set pressure is 0.05 MPa to 0.85 MPa It has a polycarbonate bowl, and a relieving type exhaust mechanism
$196.64

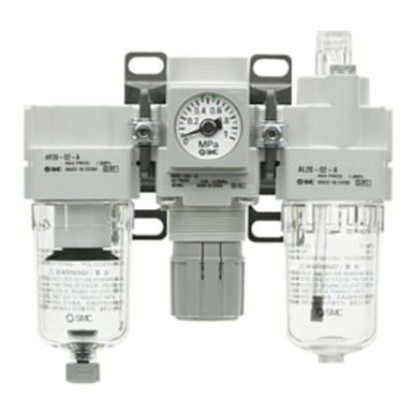

Picture of G 1/8 FRL, 5μm Filtration Size - With Pressure Gauge, SMC, AC20-F01G-B

G 1/8 FRL, 5μm Filtration Size - With Pressure Gauge, SMC, AC20-F01G-B

AC20-F01G-B
AC20A-AC40A-B Series FRL Assemblies SMC’s AC-B series of filter regulator lubricators have been redeveloped and feature a double layer, transparent bowl for better level visibility and extended working life. Part of SMC’s modular air prep range the AC-B can be combined with other components such as a soft start valve and mist separators of similar body size to meet the requirements of most air preparation systems. These filter regulator lubricators are available in a selection of body sizes from 10 to 40 with piping from G1/8” to G1/2” (also available as M5x0.8). Various options are available including normally open or normally closed auto-drain function, round or square pressure gauges and panel mounting kits. Ideal for automotive, facility and machine manufacturing, these highly flexible F.R.L. units also feature interchangeable, modular mounting.
$188.20
Picture of G 1/8 FRL, 5μm Filtration Size - Without Pressure Gauge, SMC, AC20A-F01-B

G 1/8 FRL, 5μm Filtration Size - Without Pressure Gauge, SMC, AC20A-F01-B

AC20A-F01-B
AC20A-AC40A-B Series FRL Assemblies SMC’s AC-B series of filter regulator lubricators have been redeveloped and feature a double layer, transparent bowl for better level visibility and extended working life. Part of SMC’s modular air prep range the AC-B can be combined with other components such as a soft start valve and mist separators of similar body size to meet the requirements of most air preparation systems. These filter regulator lubricators are available in a selection of body sizes from 10 to 40 with piping from G1/8” to G1/2” (also available as M5x0.8). Various options are available including normally open or normally closed auto-drain function, round or square pressure gauges and panel mounting kits. Ideal for automotive, facility and machine manufacturing, these highly flexible F.R.L. units also feature interchangeable, modular mounting.
$136.90
Picture of G 1/8 FRL, Automatic Drain, 5μm Filtration Size - With Pressure Gauge, SMC, AC20A-F01CG-B

G 1/8 FRL, Automatic Drain, 5μm Filtration Size - With Pressure Gauge, SMC, AC20A-F01CG-B

AC20A-F01CG-B
AC20A-AC40A-B Series FRL Assemblies SMC’s AC-B series of filter regulator lubricators have been redeveloped and feature a double layer, transparent bowl for better level visibility and extended working life. Part of SMC’s modular air prep range the AC-B can be combined with other components such as a soft start valve and mist separators of similar body size to meet the requirements of most air preparation systems. These filter regulator lubricators are available in a selection of body sizes from 10 to 40 with piping from G1/8” to G1/2” (also available as M5x0.8). Various options are available including normally open or normally closed auto-drain function, round or square pressure gauges and panel mounting kits. Ideal for automotive, facility and machine manufacturing, these highly flexible F.R.L. units also feature interchangeable, modular mounting.
$206.54
Picture of G 1/8 FRL, Manual Drain, 5μm Filtration Size - With Pressure Gauge, SMC, AC20A-F01G-B

G 1/8 FRL, Manual Drain, 5μm Filtration Size - With Pressure Gauge, SMC, AC20A-F01G-B

AC20A-F01G-B
AC20A-AC40A-B Series FRL Assemblies SMC’s AC-B series of filter regulator lubricators have been redeveloped and feature a double layer, transparent bowl for better level visibility and extended working life. Part of SMC’s modular air prep range the AC-B can be combined with other components such as a soft start valve and mist separators of similar body size to meet the requirements of most air preparation systems. These filter regulator lubricators are available in a selection of body sizes from 10 to 40 with piping from G1/8” to G1/2” (also available as M5x0.8). Various options are available including normally open or normally closed auto-drain function, round or square pressure gauges and panel mounting kits. Ideal for automotive, facility and machine manufacturing, these highly flexible F.R.L. units also feature interchangeable, modular mounting.
$153.27
