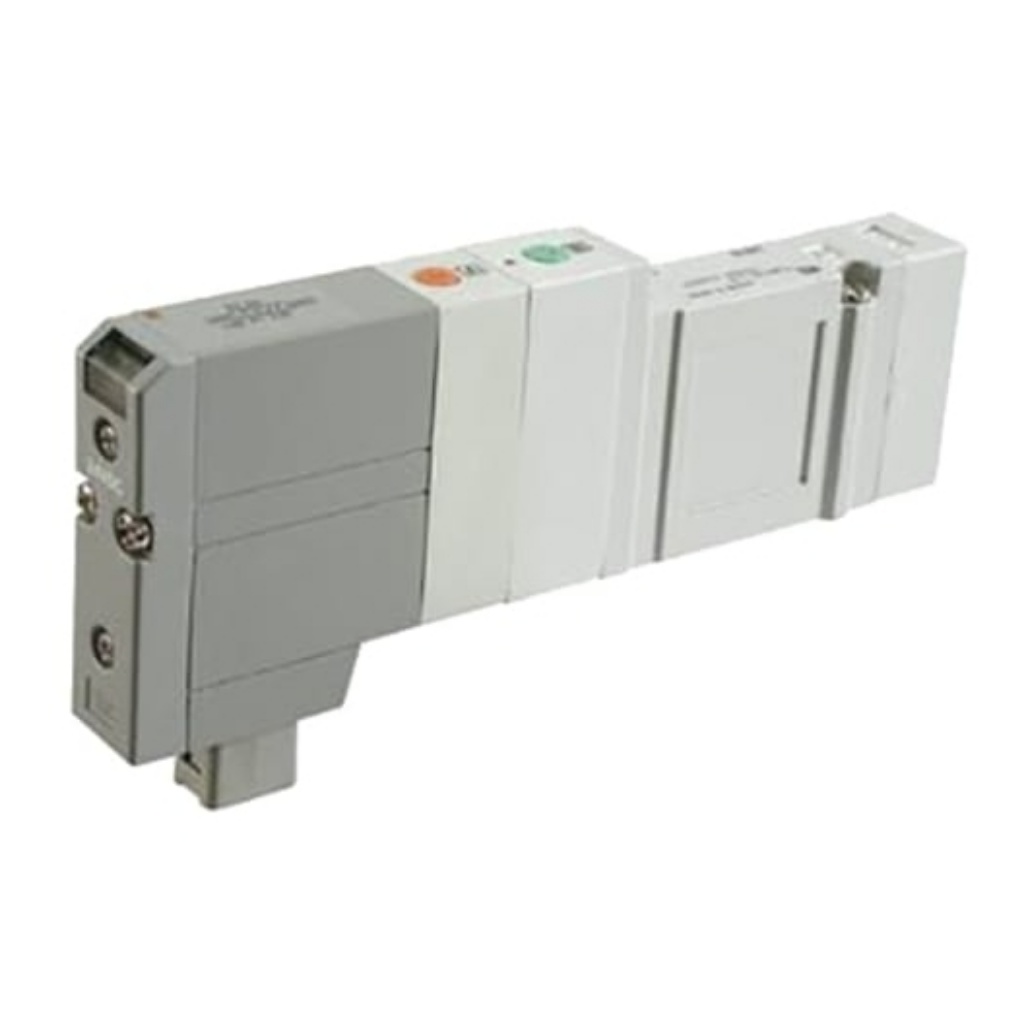

5/2 Pneumatic Solenoid Valve - Solenoid/Solenoid SV1000 Series 24V dc, SMC, SV1100-5FUD

SMC Solenoid Valve

The SMC SV1000 series 5/2 port internal pilot solenoid valve has operating pressure ranging between -100kPad and 0.7MPa. It is designed to make installation and changes simpler by utilising a multi-connector rather than the conventional lead wires for internal manifold wiring. It has cassette base type manifolds that offer great flexibility and modified sections can be added using a simple release mechanism. For ultimate flexibility, conventional tie-rod base manifolds are also available. The use of 34-pin connectors allows up to 16 stations with double solenoids.

Features and Benefits

Coil rated voltage is 24VDC
2-position single type actuation
Light/Surge voltage suppressor
Operating temperature ranging between -10°C and 50°C
Push-turn locking slotted type
Response time at 0.5MPa is 18 milliseconds or less

Certifications

IP67 rated
