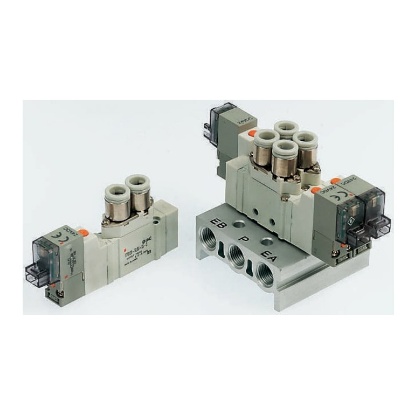

SY5000 Valves SY5000 solenoid valves are extremely compact and offer high flow rates. They operate with reduced power consumption and have a power saving circuit to ensure energy efficiency. The valve cover also uses stainless steel and is therefore stronger. SMC SY Series

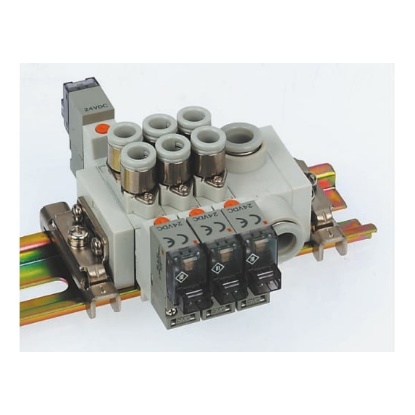

SMC Solenoid Valve The SMC SY5000 series 5/2 ports solenoid valve has a supply voltage of 24VDC. This valve has an 8mm port connection and 2-position single type actuation. It has low power consumption and therefore decreased engineering costs. This valve can be configured easily and expandable valve system with standard DIN rail mount. The valve cover also uses die-cast aluminium which makes it stronger. This valve is available with 300mm lead wire without connector. Note: 'L' type connector must be ordered separately SMC SY Z series: A range of modular DIN rail mounted solenoid-operated valves and accessories for pneumatic circuits. All the valves operate using compressed filtered air (lubricated or non-lubricated) and have an operating temperature ranging between -10°C and 50°C. Features and Benefits Solenoid power consumption is 0.4W Maximum flow rate is 520NL/min Operating pressure ranges between 0.15MPa and 0.7MPa Operating temperature ranges between -10°C and 50°C Solenoid valves are extremely compact and offer high flow rates Supplied with surge voltage suppressors (non-polar type) Certifications IP65 rated CE certified

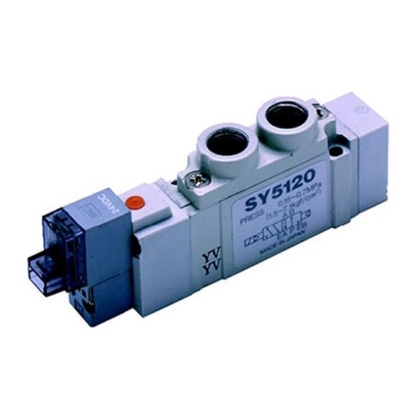

SY 5 Port Valves Supplied with Indicator light & surge voltage suppressor. Operating temperature: -10 → +50°C. SMC SY & VZ Series These valves can be used singly or with a manifold system. Low power consumption enables direct operation by PLC. They have a Non locking manual override.

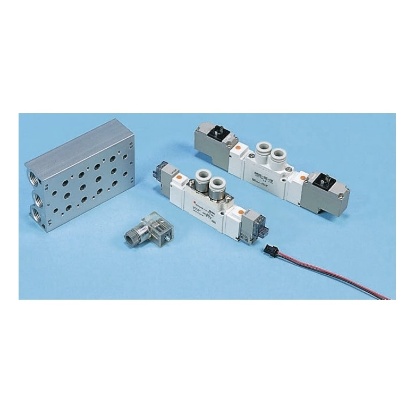

Solenoid valves on line series SY7020 Unit assembly or on connection bars. Clip-on connectors or DIN 15 x 15. Display LED. SMC SY & VZ Series These valves can be used singly or with a manifold system. Low power consumption enables direct operation by PLC. They have a Non locking manual override.

Solenoid valves on line series SY7020 Unit assembly or on connection bars. Clip-on connectors or DIN 15 x 15. Display LED. SMC SY & VZ Series These valves can be used singly or with a manifold system. Low power consumption enables direct operation by PLC. They have a Non locking manual override.

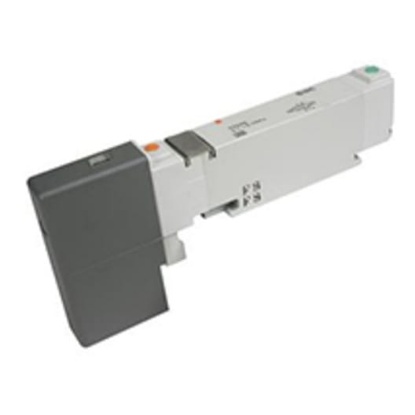

5 Port Solenoid Valves - VQC SMC’s VQC series of solenoid valves offer fast and reliable control of pneumatic systems. The VQC solenoid valves demonstrate a fast response time of only 20ms and long life expectancy of up to 200 million cycles. A compact design and high flow capacity make them suitable for a variety of applications. Installation and maintainence is made simple using a single screw and clamp system on the manifold. Service life of up to 200 million cycles Compact design Large flow capacity Easy mounting SMC VQC Series
