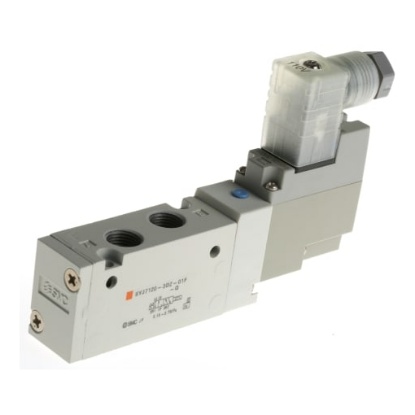

G 1/ 8 SYJ700/7000 Valves The SYJ series of valves have low power consumption and therefore decreased engineering costs. Their space saving design means that the SYJ valves can be individually mounted onto sub plates or configured onto base mounted manifolds. These SYJ700 & 7000 valves have a pilot exhaust and have a copper free design. 110V & 220V valves supplied with DIN connector Copper free design Low power consumption Space efficient Note 24V valves require L Type connector plug SMC SYJ & VF Series Low power consumption enables direct operation by PLC. They have a non locking manual override. Operating temperature: -10 to +50°C.

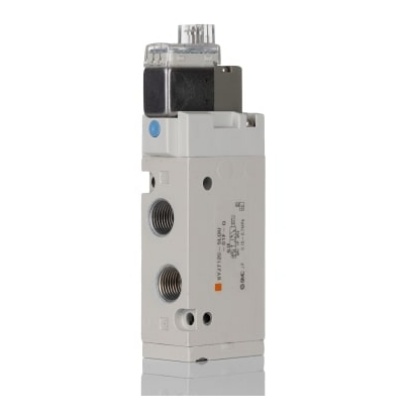

SMC Solenoid Valve The SMC SYJ7000 series 5/2 ports body ported solenoid valve has a supply voltage of 24VDC. This valve has a 1/8in G port connection. It is manufactured to offer maximum performance in a space-efficient design, making it perfect for use as a single valve where space is at a premium. Thermal heat generation is reduced as the SYJ has a low power consumption of 0.4W as standard. This allows for direct control by PLC output relays, helping to decrease cost and improve performance. This valve is available with a lead wire of length 300mm without a connector. SMC SYJ & VF series Low power consumption enables direct operation by a PLC. They have a non-locking manual override. Operating temperature ranges between -10°C and 50°C. Features and Benefits Individual exhaust for the pilot valve Maximum flow rate is 626L/min Operating pressure ranges between 0.15MPa and 0.7MPa Operating temperature ranges between -10°C and +50°C Surge voltage suppressor (Non-polar type) Certifications IP65 rated

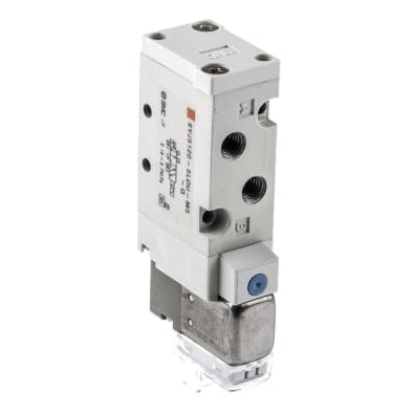

SMC Solenoid Valve The SMC SYJ5000 series 5/2 ports body ported solenoid valve has a supply voltage of 24VDC. This valve has an M5x0.8 port connection. It is manufactured to offer maximum performance in a space-efficient design, making it perfect for use as a single valve where space is at a premium. Thermal heat generation is reduced as the SYJ has a low power consumption of 0.4W as standard. This allows for direct control by PLC output relays, helping to decrease cost and improve performance. This valve is available with a lead wire of length 300mm without a connector. SMC SYJ & VF series Low power consumption enables direct operation by a PLC. They have a non-locking manual override. Operating temperature ranges between -10°C and 50°C. Features and Benefits Individual exhaust for the pilot valve Maximum flow rate is 129L/min Operating pressure ranges between 0.15MPa and 0.7MPa Operating temperature ranges between -10°C and 50°C Supplied with a lead wire of length 300mm without a connector Surge voltage suppressor (Non-polar type) Certifications IP65 rated

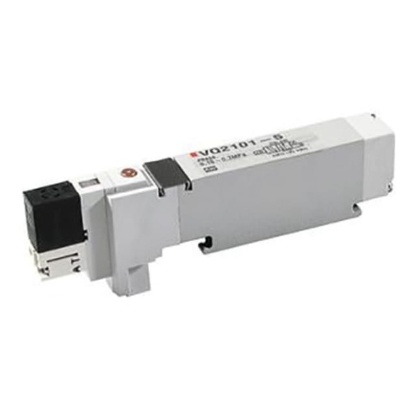

SMC VQ2000 Series VQ valves are ideal for applications requiring high speed, frequent operation, stable response time and long service life. Innovative mounting methods allow valves to be changed without entirely disassembling the manifold. Built-in one-touch fittings save piping time and labour. Fluid: air/inert gas Operating pressure range: 0.15 - 1.0MPa Effective area mm 2 (Cv): 2 position metal seal 36.0 (2.0); 2 position rubber seal 39.6 (2.2) 3 position metal seal 19.8 - 36.0 (1.1 - 2.0); 3 position rubber seal 21.6 - 39.6 (1.2 - 2.2) Coil rated voltage: 12, 24VDC; 100, 110, 200, 220VAC Response time (ms) standard 1W: metal seal 12 or less to 55 or less; rubber seal 15 or less to 62 or less Ambient fluid temperature: metal seal -10  50C; rubber seal -5  50C Optional IP65 enclosure SMC VQ Series

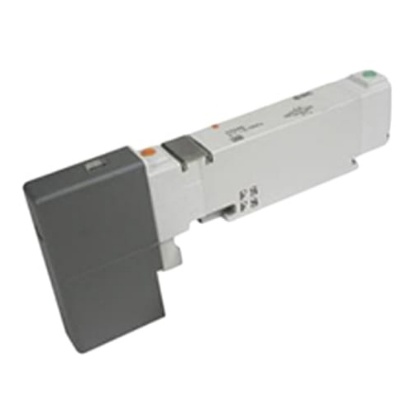

5 Port Solenoid Valves - VQC SMC’s VQC series of solenoid valves offer fast and reliable control of pneumatic systems. The VQC solenoid valves demonstrate a fast response time of only 20ms and long life expectancy of up to 200 million cycles. A compact design and high flow capacity make them suitable for a variety of applications. Installation and maintainence is made simple using a single screw and clamp system on the manifold. Service life of up to 200 million cycles Compact design Large flow capacity Easy mounting SMC VQC Series

5 Port Solenoid Valves - VQC SMC’s VQC series of solenoid valves offer fast and reliable control of pneumatic systems. The VQC solenoid valves demonstrate a fast response time of only 20ms and long life expectancy of up to 200 million cycles. A compact design and high flow capacity make them suitable for a variety of applications. Installation and maintainence is made simple using a single screw and clamp system on the manifold. Service life of up to 200 million cycles Compact design Large flow capacity Easy mounting SMC VQC Series
