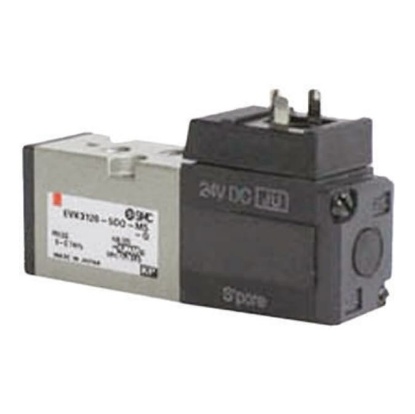

Solenoid valve series VK3000 SMC VK Series

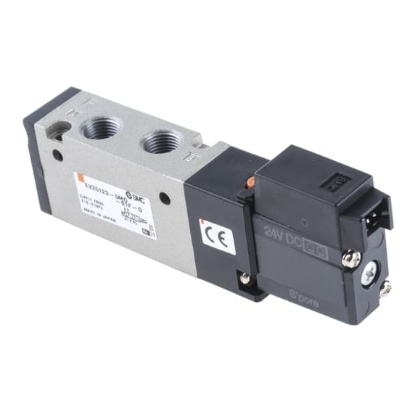

3//2 valves - Series VZ500 Low power consumption SMC Series VZ500 solenoid valves. The VZ500 valve can be used within a vacuum. The valve can also be used as a selector valve of a divider valve. 3 port solenoid valve Body-ported Rubber seal Suitable for vacuum use SMC SY & VZ Series These valves can be used singly or with a manifold system. Low power consumption enables direct operation by PLC. They have a Non locking manual override.

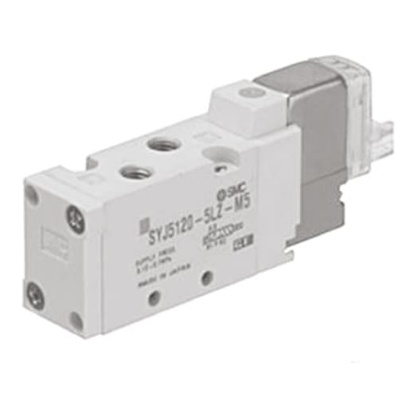

SMC Solenoid Valve The SMC SYJ5000 series 5/2 ports body ported solenoid valve has a supply voltage of 24VDC. This valve has an M5x0.8 port connection. It is manufactured to offer maximum performance in a space-efficient design, making it perfect for use as a single valve where space is at a premium. Thermal heat generation is reduced as the SYJ has a low power consumption of 0.4W as standard. This allows for direct control by PLC output relays, helping to decrease cost and improve performance. This valve is available with a lead wire of length 300mm without a connector. SMC SYJ & VF series Low power consumption enables direct operation by a PLC. They have a non-locking manual override. Operating temperature ranges between -10°C and 50°C. Features and Benefits Common exhaust type for main and pilot valve Maximum flow rate is 129L/min Operating pressure ranges between 0.15MPa and 0.7MPa Operating temperature ranges between -10°C and 50°C Surge voltage suppressor (Non-polar type) Certifications IP65 rated

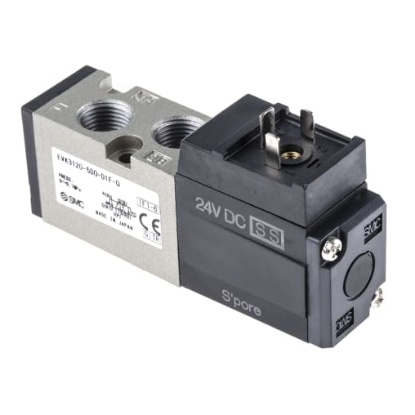

Solenoid valve series VK3000 SMC VK Series

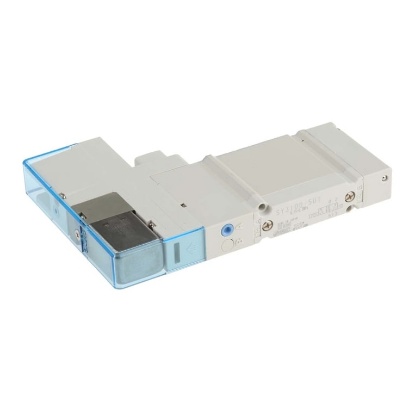

SMC Solenoid Valve The SMC SY3000 series 5/2 port solenoid valve has operating pressure ranging between 0.1MPa and 0.7MPa. Its solenoid voltage is 24VDC and is an interface between electronic controllers and pneumatic systems. This solenoid valve is smaller and has a higher flow. It offers the user different sized valves, which are mounted on the same manifold. It is more reliable offering the user enhanced performance. Another advantage of the SY3000 series is the reduced power consumption offering the user lower operational costs. Features and Benefits Energy saving benefits Extremely compact and offer high flow rates Light/Surge voltage suppressor Operate with reduced power consumption Solenoid valves provide outstanding reliability delivering an extended lifetime performance and reduce the downtime

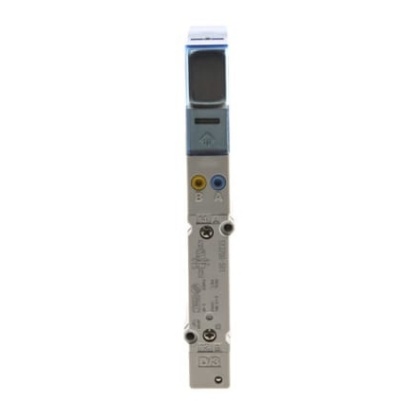

SMC Solenoid Valve The SMC SY3000 series 5/2 ports solenoid valve has a supply voltage of 24VDC. This valve has a 6mm port connection and 2-position double type actuation. It has low power consumption and therefore decreased engineering costs. This valve provides outstanding reliability delivering extended lifetime performance and reduces the downtime. Features and Benefits Solenoid power consumption is 0.4W Operating pressure ranges between 0.15MPa and 0.7MPa Operating temperature ranges between -10°C and 50°C Certifications IP65 rated
