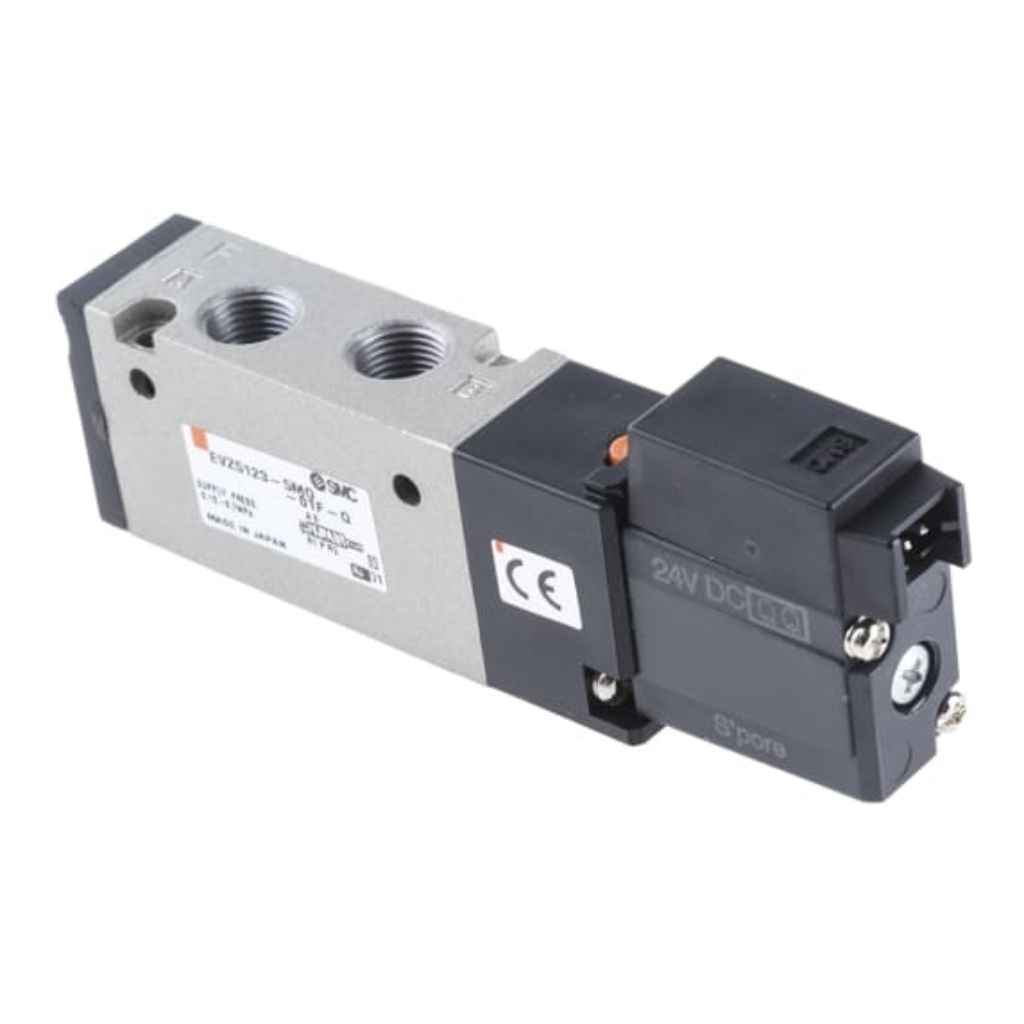

Picture of 5/2 Pneumatic Solenoid Valve - Spring/Solenoid G 1/8 VZ5000 Series 24V dc, SMC, EVZ5123-5MO-01F-Q
Picture of 5/2 Pneumatic Solenoid Valve - Spring/Solenoid G 1/8 VZ5000 Series 24V dc, SMC, EVZ5123-5MO-01F-Q
Picture of 5/2 Pneumatic Solenoid Valve - Spring/Solenoid G 1/8 VZ5000 Series 24V dc, SMC, EVZ5123-5MO-01F-Q
Picture of 5/2 Pneumatic Solenoid Valve - Spring/Solenoid G 1/8 VZ5000 Series 24V dc, SMC, EVZ5123-5MO-01F-Q

5/2 Pneumatic Solenoid Valve - Spring/Solenoid G 1/8 VZ5000 Series 24V dc, SMC, EVZ5123-5MO-01F-Q

3//2 valves - Series VZ500

Low power consumption SMC Series VZ500 solenoid valves. The VZ500 valve can be used within a vacuum. The valve can also be used as a selector valve of a divider valve.

3 port solenoid valve
Body-ported
Rubber seal
Suitable for vacuum use

SMC SY & VZ Series

These valves can be used singly or with a manifold system. Low power consumption enables direct operation by PLC. They have a Non locking manual override.
Manufacturer: SMC
SKU: EVZ5123-5MO-01F-Q
$141.51
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Function5/2
Connection Port ThreadG 1/8
Actuation TypeSpring/Solenoid
Manufacturer SeriesVZ5000
Mounting StyleStand-Alone
Solenoid Voltage24V dc
Solenoid FittedYes
Number of Ports5/2
Body MaterialDie Cast Aluminium
Maximum Flow Rate588NL/min
Solenoid Power Consumption75W
Minimum Operating Pressure0.15MPa
Thread Size1/8in
Maximum Operating Temperature+50°C
Maximum Operating Pressure0.7 MPa
Minimum Operating Temperature-10°C
Thread StandardG
