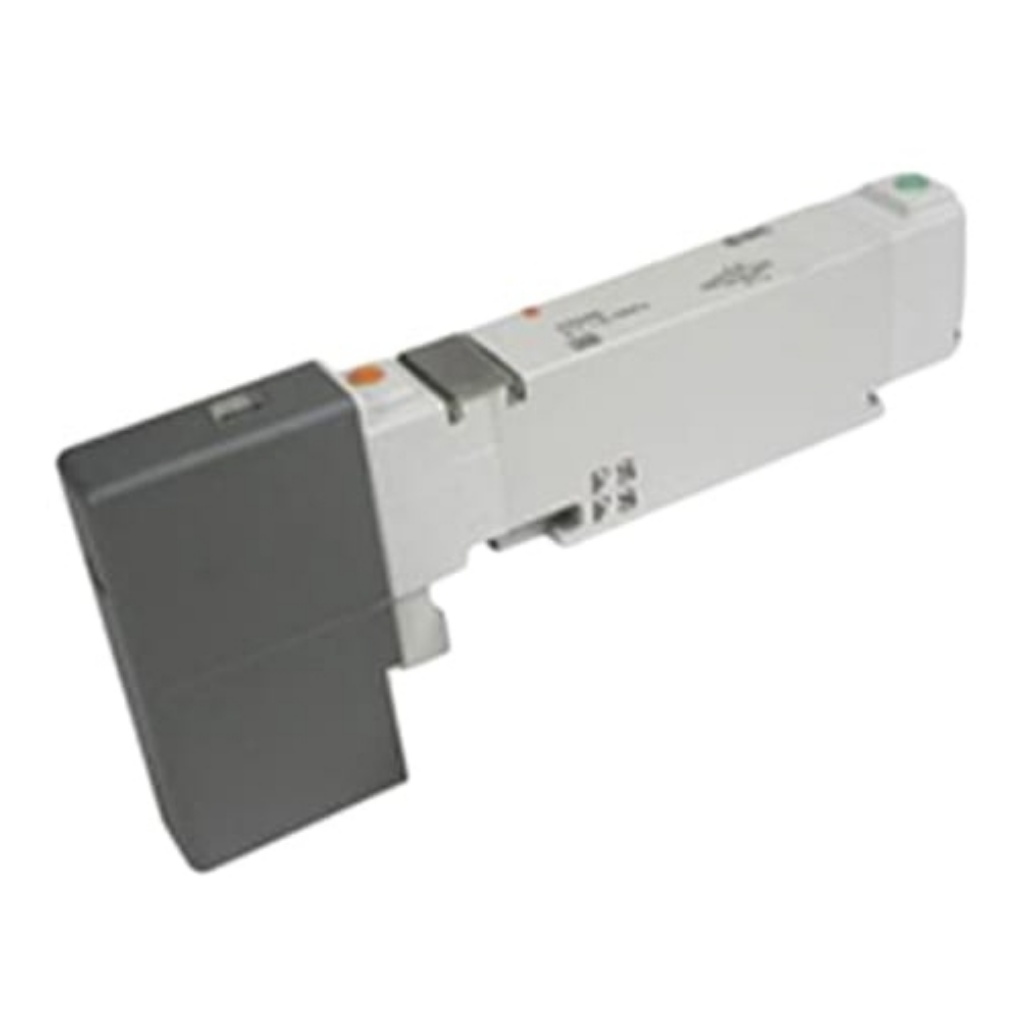

Picture of 5/2 Pneumatic Solenoid Valve - Solenoid/Spring VQC1000 Series 24V dc, SMC, VQC1101N-5D1

5/2 Pneumatic Solenoid Valve - Solenoid/Spring VQC1000 Series 24V dc, SMC, VQC1101N-5D1

5 Port Solenoid Valves - VQC

SMC’s VQC series of solenoid valves offer fast and reliable control of pneumatic systems. The VQC solenoid valves demonstrate a fast response time of only 20ms and long life expectancy of up to 200 million cycles. A compact design and high flow capacity make them suitable for a variety of applications. Installation and maintainence is made simple using a single screw and clamp system on the manifold.

Service life of up to 200 million cycles
Compact design
Large flow capacity
Easy mounting

SMC VQC Series
Manufacturer: SMC
SKU: VQC1101N-5D1
$154.11
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Function5/2
Actuation TypeSolenoid/Spring
Manufacturer SeriesVQC1000
Mounting StyleBase Mount
Solenoid Voltage24V dc
Number of Ports5
Body MaterialDie Cast Zinc
Solenoid Power Consumption1W
Minimum Operating Pressure150kPa
Maximum Operating Temperature+50°C
Maximum Operating Pressure0.7 Mpa
Configuration2-Position Single
Number of Positions2
Minimum Operating Temperature-10
Special FeaturesIt has outstanding response times and long life
