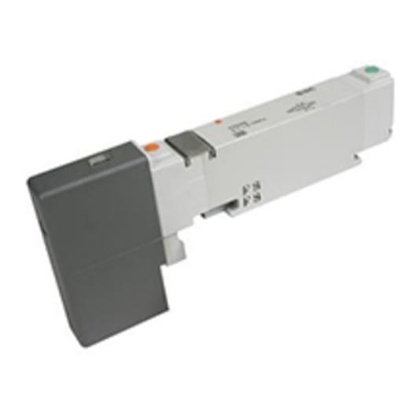

SMC Solenoid Valve The SMC VQC1000 series 5/2 port solenoid valve has operating pressure ranging between 0.15MPa and 0.7MPa. Its solenoid voltage is 24VDC and 1W power consumption. This valve offers fast and reliable control of pneumatic systems. The VQC solenoid valves demonstrate a fast response time of only 20 milliseconds and long life expectancy of up to 200 million cycles. It has a compact design and high flow capacity that make them suitable for a variety of applications. By using a single screw and clamp system on the manifold, installation and maintenance are made simple. Features and Benefits Easy mounting Large flow capacity Certifications IP67 rated

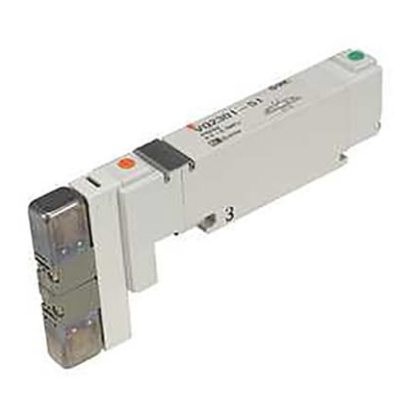

SMC VQ1000 Series VQ valves are ideal for applications requiring high speed, frequent operation, stable response time and long service life. Innovative mounting methods allow valves to be changed without entirely disassembling the manifold. Built-in one-touch fittings save piping time and labour. Fluid: air/inert gas Operating pressure range: 0.1 - 0.7MPa, (high pressure type 0.8MPa) Effective area mm ² (Cv): 2 position metal seal 14.4 (0.8); 2 position rubber seal 16.2 (0.9), 3 position metal seal 12.6 (0.7); 3 position rubber seal 14.4 (0.8) Coil rated voltage: 12, 24VDC; 100, 110, 200, 220VAC Response time (ms) standard 1W, H 1.5W: metal seal 29 or less; rubber seal 34 or less SMC VQ Series

SMC ISO Solenoid Valves A range of ISO standard interface 1 and 2 solenoid valves from SMC. Available as two or three positions and with single or double solenoid actuation. The VS7 range of ISO solenoid valves are equipped with a non-locking manual override and can be used with non-lubricated dry air. ISO

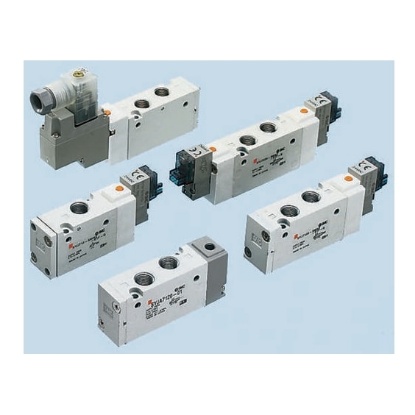

G 1/ 8 SYJ700/7000 Valves The SYJ series of valves have low power consumption and therefore decreased engineering costs. Their space saving design means that the SYJ valves can be individually mounted onto sub plates or configured onto base mounted manifolds. These SYJ700 & 7000 valves have a pilot exhaust and have a copper free design. 110V & 220V valves supplied with DIN connector Copper free design Low power consumption Space efficient Note 24V valves require L Type connector plug For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply. SMC SYJ & VF Series Low power consumption enables direct operation by PLC. They have a non locking manual override. Operating temperature: -10 to +50°C.

G 1/ 8 SYJ700/7000 Valves The SYJ series of valves have low power consumption and therefore decreased engineering costs. Their space saving design means that the SYJ valves can be individually mounted onto sub plates or configured onto base mounted manifolds. These SYJ700 & 7000 valves have a pilot exhaust and have a copper free design. 110V & 220V valves supplied with DIN connector Copper free design Low power consumption Space efficient Note 24V valves require L Type connector plug SMC SYJ & VF Series Low power consumption enables direct operation by PLC. They have a non locking manual override. Operating temperature: -10 to +50°C.

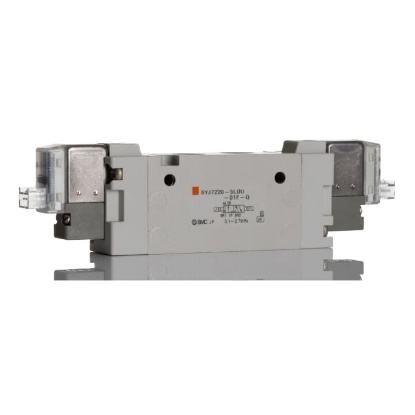

SMC Solenoid Valve The SMC SYJ7000 series 5/2 ports body ported solenoid valve has a supply voltage of 24VDC. This valve has a 1/8in G port connection and two-position double solenoid actuation. It is manufactured to offer maximum performance in a space-efficient design, making it perfect for use as a single valve where space is at a premium. Thermal heat generation is reduced as the SYJ has a low power consumption of 0.4W as standard. This allows for direct control by PLC output relays, helping to decrease cost and improve performance. This valve is available with a lead wire of length 300mm without a connector. SMC SYJ & VF series Low power consumption enables direct operation by a PLC. They have a non-locking manual override. Operating temperature ranges between -10°C and 50°C. Features and Benefits Maximum flow rate is 626L/min Operating pressure ranges between 0.15MPa and 0.7MPa Operating temperature ranges between -10°C and 50°C Pilot valve individual exhaust for the pilot valve Surge voltage suppressor (Non-polar type) Certifications IP65 rated
