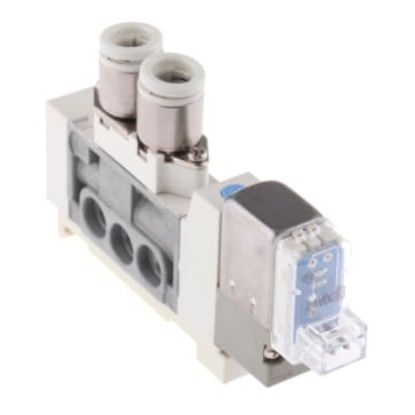

SMC Solenoid Valve The SMC SY3000 series 5/2 ports solenoid valve has a supply voltage of 24VDC. This valve has a 6mm port connection and 2-position single type actuation. It has low power consumption and therefore decreased engineering costs. This valve can be configured easily and is expandable valve system with standard DIN rail mount. The valve cover also uses die-cast zinc, which makes it stronger. This valve is available with a 300mm lead wire without a connector. Note: 'L' type connector must be ordered separately SMC SY Z series A range of modular DIN rail mounted solenoid-operated valves and accessories for pneumatic circuits. All the valves operate using compressed filtered air (lubricated or non-lubricated) and have an operating temperature ranging between -10°C and 50°C. Features and Benefits Solenoid power consumption is 0.4W Maximum flow rate is 196NL/min Operating pressure ranges between 0.15MPa and 0.7MPa Operating temperature ranges between -10°C and 50°C Supplied with surge voltage suppressors (non-polar type) Certifications IP65 rated

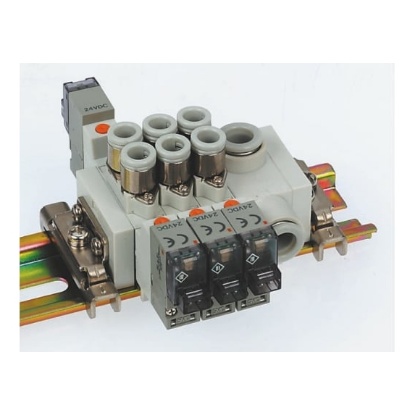

SY Z Series Cassette Valves Compact, lightweight body ported design Easily configured and expandable valve system Valves supplied complete with sealing discs High flow, fast response Standard, DIN rail mounting 24Vdc solenoid voltage Low power consumption Note 'L' type connector must be ordered separately SMC SY Z Series A range of modular DIN rail mounted solenoid operated valves and accessories for pneumatic circuits. All valves operate using compressed filtered air (lubricated or non-lubricated) and have an operating temperature range of -10 to +50°C.

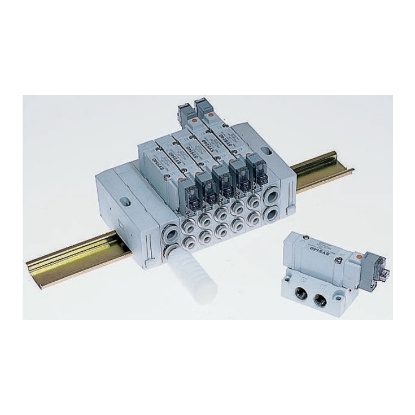

SY5000 Z Series Valves Higher flow capacity than body ported SY type Cv=0.3 (3000 series) Cv=0.7 (5000 series) Compact, lightweight design, ideal for installation in restricted spaces or enclosures Low power consumption allows direct PLC control Service life in excess of 50 million cycles 5//2 and 5//3 valve configurations L type pinch plug or DIN plug connections Non locking manual override Note When ordering valves with a pinch type plug connection plug connectors must be ordered separately. Valves with a DIN connection are supplied with DIN 43650 plugs. SMC SY Z Series A range of modular DIN rail mounted solenoid operated valves and accessories for pneumatic circuits. All valves operate using compressed filtered air (lubricated or non-lubricated) and have an operating temperature range of -10 to +50°C.

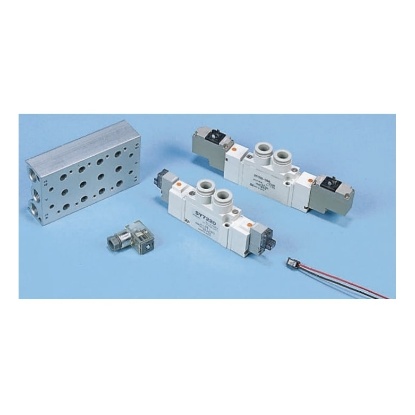

Solenoid valves on line series SY5020 Unit assembly or on connection bars. Clip-on connectors or DIN 15 x 15. Display LED. SMC SY & VZ Series These valves can be used singly or with a manifold system. Low power consumption enables direct operation by PLC. They have a Non locking manual override.

Solenoid valves on manifold series SY5040 Assembly on connectable or single manifold. Clip-on or DIN 15 x 15 connector. SMC SY Z Series A range of modular DIN rail mounted solenoid operated valves and accessories for pneumatic circuits. All valves operate using compressed filtered air (lubricated or non-lubricated) and have an operating temperature range of -10 to +50°C.

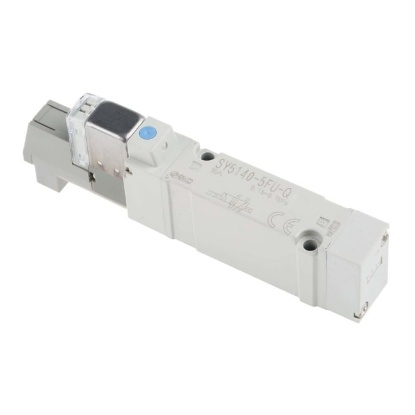

SMC Solenoid Valve The SMC SY5000 series 5/2 ports solenoid valve has a supply voltage of 24VDC. This valve has a 1/4in G port connection and 2-position single type actuation. It has low power consumption and therefore decreased engineering costs. The valve space-saving design means that it can be individually mounted onto sub plates or configured onto base mount manifolds. It has a pilot exhaust and a copper-free design. The valve cover also uses stainless steel which makes it stronger. This valve is available with a DIN terminal with connector. Note: When ordering valves with a pinch type plug connection, plug connectors must be ordered separately. Valves with a DIN connection are supplied with DIN 43650 plugs. Features and Benefits Solenoid power consumption is 0.35W Maximum flow rate is 280NL/min Operating pressure ranges between 0.1MPa and 0.7MPa Operating temperature ranges between -10°C and 50°C Solenoid valves are extremely compact and offer high flow rates Supplied with surge voltage suppressors (non-polar type) Certifications IP65 rated CE certified
