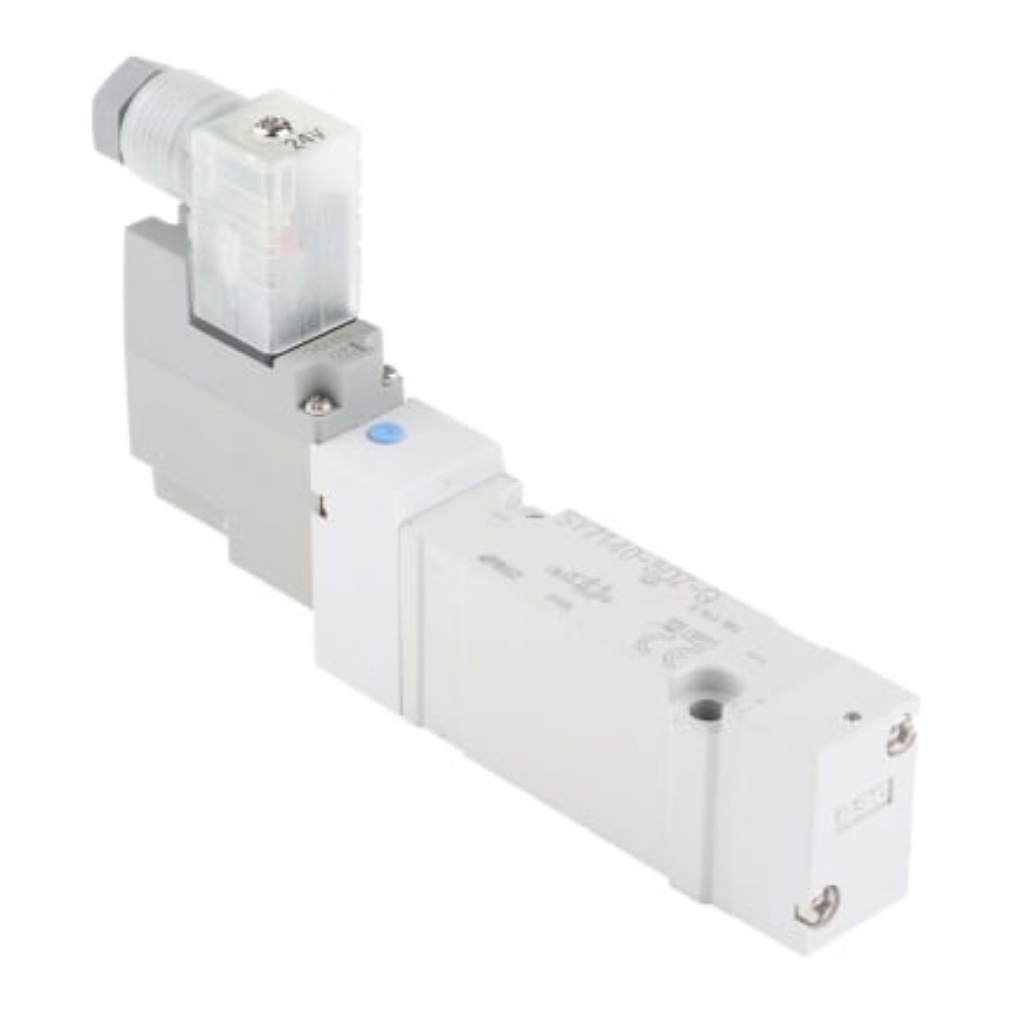

5/2 Pneumatic Solenoid Valve - Solenoid/Solenoid SY7000 Series 24V dc, SMC, SY7140-5DZ-Q

SMC Solenoid Valve

The SMC SY7000 series 5/2 ports solenoid valve has a supply voltage of 24VDC. This valve has a 1/4in Rc port connection and 2-position single type actuation. It has low power consumption and therefore decreased engineering costs. Its space-saving design means that it can be individually mounted onto sub plates or configured onto base mounted manifolds. The valve cover also uses stainless steel, which makes it stronger. This valve is available with a DIN terminal connector.

Features and Benefits

Solenoid power consumption is 0.35W
Maximum flow rate is 1177.8NL/min
Operating pressure ranges between 0.1MPa and 0.7MPa
Operating temperature ranges between -10°C and 50°C
Solenoid valves are extremely compact and offer high flow rates
Supplied with surge voltage suppressors

Certifications

IP65 rated
