Pneumatic Pressure Sensors
A pneumatic pressure sensor is designed to measure compressed air or gas pressure within a system, allowing readings to be monitored and displayed through various electronic devices.
These sensors function as transducers, converting pressure into a corresponding electrical signal. When pressure levels rise or fall outside the expected range, the sensor enables timely adjustments or alerts for further investigation.
In some cases, pressure sensors also act as pressure switches, activating or deactivating a system when the pressure reaches a predetermined threshold.
Accurate pressure monitoring is essential across numerous industries—including automotive, medical, industrial, and building systems—where sensor reliability directly impacts performance, safety, and cost efficiency. By ensuring stable system operation, these sensors help protect equipment and users while also contributing to reduced operational expenses.

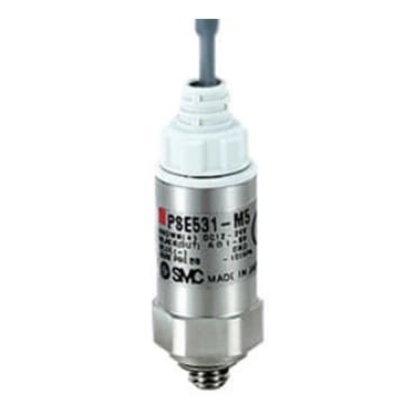

Pressure Sensor 500kPa, 12 → 24V, IP40 -1 bar, SMC, PSE531-M5-C2L
PSE531-M5-C2L
The SMC PSE530 series compact pneumatic pressure sensor has proof pressure of 1.5MPa and is suitable for air and gas medium. Its supply voltage ranging between 12VDC to 24VDC and its port size is M5x0.8. It is used for multi channel controller.
Operating temperature ranging between 0°C and 50°C
Includes sensor cable of 3m
$157.70
Pressure Sensor 500kPa, 12 → 24V, IP40 -1 bar, SMC, PSE531-R06-L
PSE531-R06-L
The SMC PSE530 series compact pneumatic pressure sensor has proof pressure of 1.5MPa and is suitable for air and gas medium. Its supply voltage ranging between 12VDC to 24VDC and its port size is 6 mm reducer. It is used for multi channel controller.
Operating temperature ranging between 0°C and 50°C
Includes connector for pressure sensor controller and sensor cable of 3m
$164.05
Pressure Sensor 500kPa, 12 → 24V, IP40 -1 bar, SMC, PSE541-01
PSE541-01
The SMC PSE540 series compact pneumatic pressure sensor has proof pressure of 500 kPa and is suitable for air and gas medium. Its supply voltage ranging between 12VDC to 24VDC and its port size is R 1/8 with M5 female thread.
Operating temperature ranging between 0°C and 50°C
Resin case PBT
$174.70
Pressure Sensor 500kPa, 24V, IP40 1 bar, SMC, PSE531-R07
PSE531-R07
The SMC PSE530 series of remote pressure sensors with a 1 to 5V analog signal output. It is for a standard pneumatic system's pressure range, while the 532 model is for low pressure. The sensors measure pressure of any non-corrosive, non-flammable gas. An accuracy of ±2% of the full scale rated pressure range is suitable for general purpose applications. The cable is molded into the sensor head and is not replaceable.
Power supply requirement 12 to 24 VDC
2 accuracy option ±1% or ±2% of F.S.
Repeatability ±0.2% of F.S.
$134.74

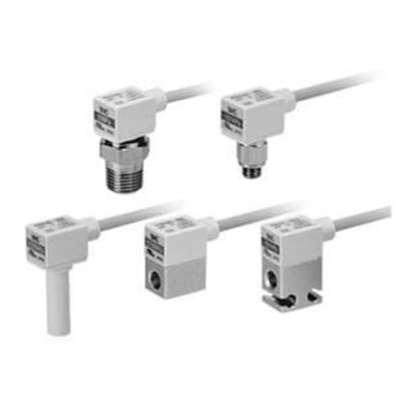

Pressure Sensor 500kPa, 24V, IP40 1 bar, SMC, PSE541-R04
PSE541-R04
The SMC PSE530 series of remote pressure sensors with a 1 to 5V analog signal output. It is for a standard pneumatic system's pressure range, while the 532 model is for low pressure. The sensors measure pressure of any non-corrosive, non-flammable gas. An accuracy of ±2% of the full scale rated pressure range is suitable for general purpose applications. The cable is molded into the sensor head and is not replaceable.
Power supply requirement 12 to 24 VDC
2 accuracy option ±1% or ±2% of F.S.
Repeatability ±0.2% of F.S.
$158.62
Pressure Sensor 500kPa, 24V, IP40 1 bar, SMC, PSE543-R04
PSE543-R04
The SMC PSE530 series of remote pressure sensors with a 1 to 5V analog signal output. It is for a standard pneumatic system's pressure range, while the 532 model is for low pressure. The sensors measure pressure of any non-corrosive, non-flammable gas. An accuracy of ±2% of the full scale rated pressure range is suitable for general purpose applications. The cable is molded into the sensor head and is not replaceable.
Power supply requirement 12 to 24 VDC
2 accuracy option ±1% or ±2% of F.S.
Repeatability ±0.2% of F.S.
$161.79
Pressure Sensor 500kPa, IP40 1.01bar, SMC, PSE541A-R06
PSE541A-R06
The SMC PSE550 is low differential pressure sensor. It has –50 to 50 kPa operating pressure.
Applicable fluid is air
Operating temperature is0 to 50 °C
$167.43

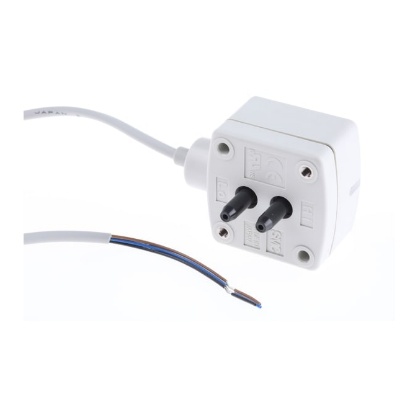

Pressure Sensor 65kPa, 12 → 24V dc, IP40 50 kPa, SMC, PSE550
PSE550
Low-differential Pressure Sensor without connector or bracket
High-sensitivity differential pressure sensor with an analogue output, suitable for use with the SMC PSE201 & PSE303 controllers. (See stock nos. 537-2675 and 537-2697) The sensor is ideal for checking the performance of dust and air conditioning filters, and duct sensing applications.
Light weight and easy to install
E-con 4-pole signal connector
4mm hose tail port connections
Power-on indicator LED
Temperature Range 0 to 50°C
Weight 35g
Comes without connector or bracket
$425.96

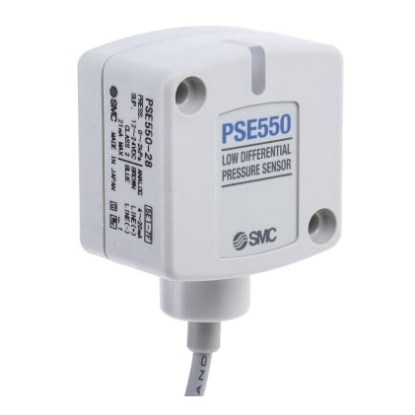

Pressure Sensor 65kPa, 12 → 24V dc, IP40 50 kPa, SMC, PSE550-28
PSE550-28
Low-differential Pressure Sensor without connector or bracket
High-sensitivity differential pressure sensor with an analogue output, suitable for use with the SMC PSE201 & PSE303 controllers. (See stock nos. 537-2675 and 537-2697) The sensor is ideal for checking the performance of dust and air conditioning filters, and duct sensing applications.
Light weight and easy to install
E-con 4-pole signal connector
4mm hose tail port connections
Power-on indicator LED
Temperature Range 0 to 50°C
Weight 35g
Comes without connector or bracket
$448.09

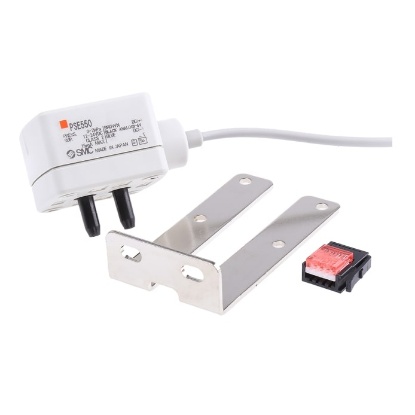

Pressure Sensor 65kPa, 12 → 24V dc, IP40 50 kPa, SMC, PSE550-AC2
PSE550-AC2
Low-differential Pressure Sensor
High-sensitivity differential pressure sensor with an analogue output, suitable for use with the SMC PSE201 & PSE303 controllers. (See stock nos. 537-2675 and 537-2697) The sensor is ideal for checking the performance of dust and air conditioning filters, and duct sensing applications.
Light weight and easy to install
E-con 4-pole signal connector
4mm hose tail port connections
Power-on indicator LED
Temperature Range 0 to 50°C
Weight 35g
Supplied with
Foot mounting bracket and connector
$444.41

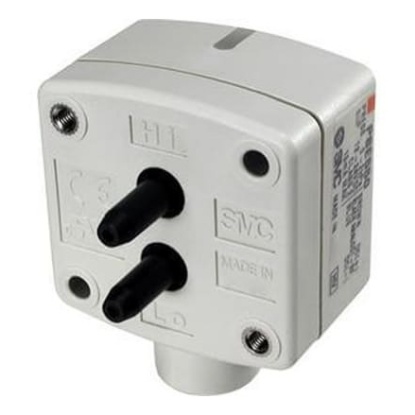

Pressure Sensor 65kPa, 24V dc, IP40 0.5 bar, SMC, PSE550-28-A
PSE550-28-A
The SMC PSE550 is low differential pressure sensor. It has –50 to 50 kPa operating pressure.
Applicable fluid is air
Operating temperature is0 to 50 °C
$437.47

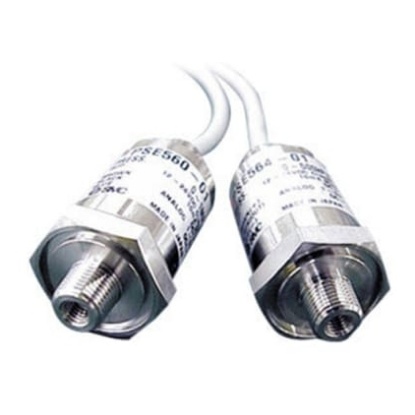

Pressure Sensor 750bar, 12 → 24V, SMC, PSE564-02-28
PSE564-02-28
The SMC PSE560 pressure sensor for general fluids. It has R6 port size.
Pressure sensor for general purpose fluids
Accuracy (ambient temp. of 25°C) ¹1%F.S. or less
Repeatability ¹0.2%F.S. or less
Enclosure IP65
$574.46
