A pneumatic pressure sensor is designed to measure compressed air or gas pressure within a system, allowing readings to be monitored and displayed through various electronic devices.
These sensors function as transducers, converting pressure into a corresponding electrical signal. When pressure levels rise or fall outside the expected range, the sensor enables timely adjustments or alerts for further investigation.
In some cases, pressure sensors also act as pressure switches, activating or deactivating a system when the pressure reaches a predetermined threshold.
Accurate pressure monitoring is essential across numerous industries—including automotive, medical, industrial, and building systems—where sensor reliability directly impacts performance, safety, and cost efficiency. By ensuring stable system operation, these sensors help protect equipment and users while also contributing to reduced operational expenses.
The SMC Pneumatics ISE2 series pressure switch for vacuum having rated pressure ranges from 0 to 1 Mpa. It has power supply voltage from 12 to 24VDC and current consumption of 17mA.
Enclosure IP40
Operating temperature range -10 to 60°C
Insulation resistance 50 MΩ
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
The SMC Pneumatics ISE2 series pressure switch for vacuum having rated pressure ranges from 0 to 1 Mpa. It has power supply voltage from 12 to 24VDC and current consumption of 17mA.
Enclosure IP40
Operating temperature range -10 to 60°C
Insulation resistance 50 MΩ

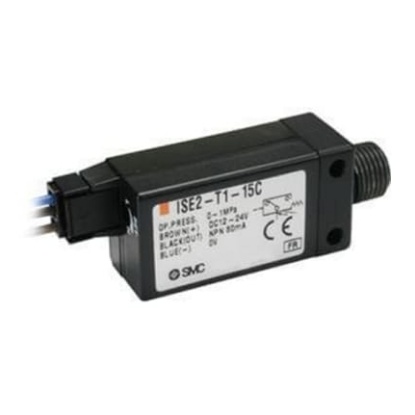

The SMC ISE2 is a basic vacuum switch with 1 digital output (NPN or PNP) and no analog output is included. It monitor pressure of any non-corrosive, non-flammable gas. It used low and high pressure ranges are offered, as well as metric or NPTF male thread connections. It used rotary trimmer adjust the switch set point. A red LED indicator also light to correspond with the output signal. It has electrical connection include a 3 wire grommet cable or snap-in connector.
Power supply requirement 12 to 24 VDC
Repeatability ±1% of F.S.
The SMC ISE2 series is a compact, pressure switch (for positive pressure) and can be integrated with ZX or ZR vacuum systems. The ISE2 series pressure switch has a quick response time of 10mS and the plug connector option makes wiring easy and simple.
Pressure Range 0 to 0.97MPa
Port Size 01 (Single Unit Mounting R(PT) 1/8)
The SMC ISE2 series is a compact, pressure switch (for positive pressure) and can be integrated with ZX or ZR vacuum systems. The ISE2 series pressure switch has a quick response time of 10mS and the plug connector option makes wiring easy and simple.
Pressure Range 0 to 0.97MPa
Port Size 01 (Single Unit Mounting R(PT) 1/8)

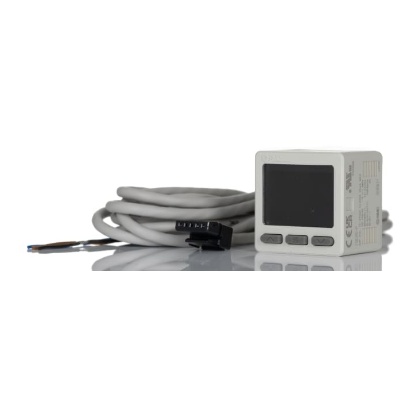

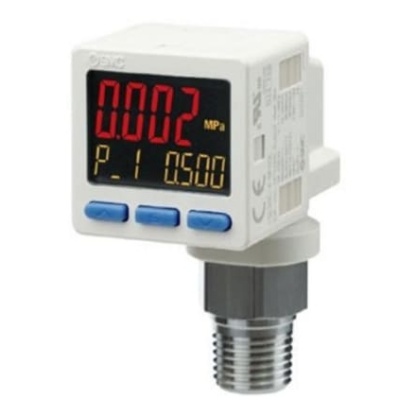

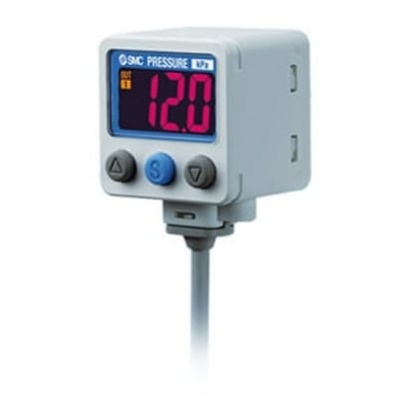

The SMC high precision digital pressure switch offers enhanced functions, performance, and variations compared to the previous ISE40 series. Abnormal values are easily identifiable at a glance on the 2-color display. The settings of the master pressure can be conveniently adjusted.
Withstand pressure 218 psi
Maximum load current 80 mA
