Pneumatic Pressure Sensors

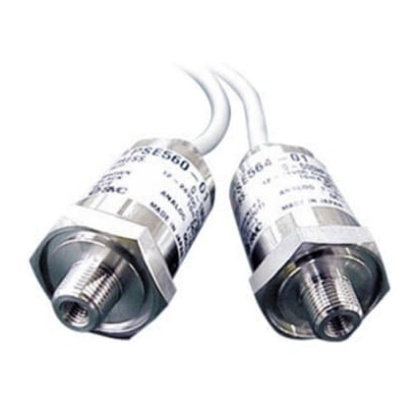

The SMC PSE560 series pneumatic pressure sensor has proof pressure of 1.5 Map and is suitable for liquid or gas medium. Its supply voltage ranging between 12VDC to 24VDC and its port size is R 1/4 with M5 female thread. Copper-free Fluorine-free Oil-free Operating temperature ranging between 0°C and 50°C

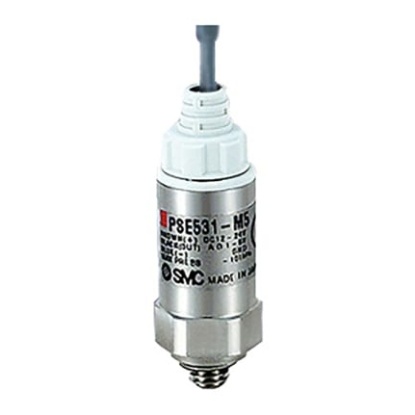

The SMC PSE530 series of remote pressure sensors with a 1 to 5V analog signal output. It is for a standard pneumatic system's pressure range, while the 532 model is for low pressure. The sensors measure pressure of any non-corrosive, non-flammable gas. An accuracy of ±2% of the full scale rated pressure range is suitable for general purpose applications. The cable is molded into the sensor head and is not replaceable. Power supply requirement 12 to 24 VDC 2 accuracy option ±1% or ±2% of F.S. Repeatability ±0.2% of F.S.

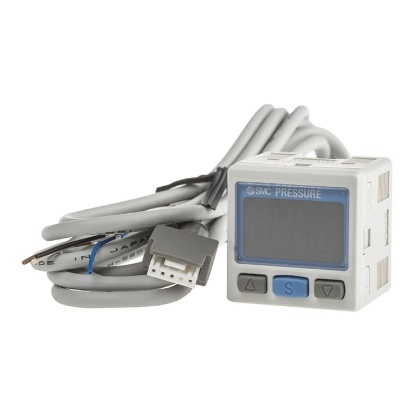

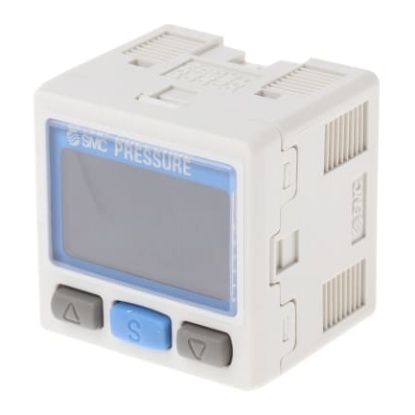

ISE/ZSE30 Pressure/Vacuum Switch Vacuum and positive pressure models available, with PNP, Analogue voltage or Analogue current outputs Two colour digital display for fast "abnormal condition" identification High precision resolution, typically 1/1000 User selectable pressure unit display CE marked in accordance with relevant European Directives Display calibration capability allowing uniformity of display User-friendly, raised rubber button control Plug connection for a 2 metre flying lead provides fast installation Port Connections R 1/8; M5 Protection Rating IP40 Note Part Number ZS-27-A is a 3 core cable assembly and suits all now obsolete ZSE/ISE30-#-#-# and when supplied with the unit has the suffix code letter -L Part Number ZS-38-3L is a 3 core cable assembly and suits new ZSE30A/ZSE30F/ISE30A-#-N or P and is shown when supplied with the item as an additional suffix -L after the N or P

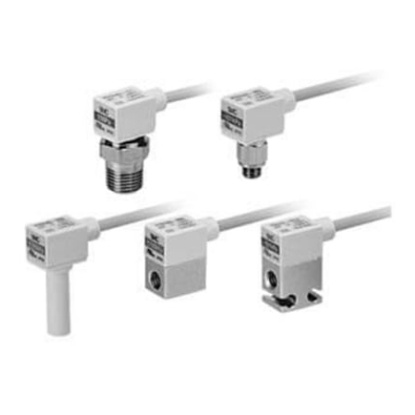

Compact Pneumatic Pressure Sensor Series PSE digital pressure switches allow pressure to be controlled from a remote location. The PSE100 series controller has an easy to read, large, 4-digit LED display. Display units can be easily selected and changed. Series PSE510 is compact and lightweight, allowing the sensor to be mounted where needed. The use of stainless steel for all wetted parts (SUS630 for diaphragm, SUS304 for fitting) allows the PSE520 pressure sensor to be used in a wide variety of gas and fluid applications. PSE series remote pressure and vacuum sensors have been expanded to include easy-to-use econ connectors from 3M or AMP.

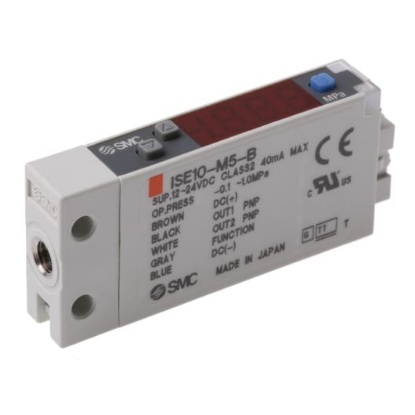

ISE/ZSE10 Pressure/Vacuum Switch Low profile CE and RoHS compliant Can copy up to 10 switches simultaneously Multi-angle indicators Suitable for a range of different mounting options including direct, panel and DIN rail mounting IP40 rated enclosure

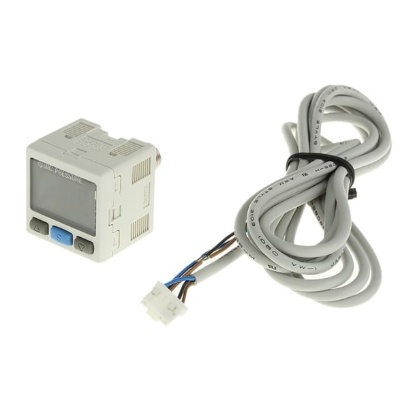

ISE/ZSE30 Pressure/Vacuum Switch Vacuum and positive pressure models available, with PNP, Analogue voltage or Analogue current outputs Two colour digital display for fast "abnormal condition" identification High precision resolution, typically 1/1000 User selectable pressure unit display CE marked in accordance with relevant European Directives Display calibration capability allowing uniformity of display User-friendly, raised rubber button control Plug connection for a 2 metre flying lead provides fast installation Port Connections R 1/8; M5 Protection Rating IP40 Note Part Number ZS-27-A is a 3 core cable assembly and suits all now obsolete ZSE/ISE30-#-#-# and when supplied with the unit has the suffix code letter -L Part Number ZS-38-3L is a 3 core cable assembly and suits new ZSE30A/ZSE30F/ISE30A-#-N or P and is shown when supplied with the item as an additional suffix -L after the N or P

ISE/ZSE30 Pressure/Vacuum Switch Vacuum and positive pressure models available, with PNP, Analogue voltage or Analogue current outputs Two colour digital display for fast "abnormal condition" identification High precision resolution, typically 1/1000 User selectable pressure unit display CE marked in accordance with relevant European Directives Display calibration capability allowing uniformity of display User-friendly, raised rubber button control Plug connection for a 2 metre flying lead provides fast installation Port Connections R 1/8; M5 Protection Rating IP40 Note Part Number ZS-27-A is a 3 core cable assembly and suits all now obsolete ZSE/ISE30-#-#-# and when supplied with the unit has the suffix code letter -L Part Number ZS-38-3L is a 3 core cable assembly and suits new ZSE30A/ZSE30F/ISE30A-#-N or P and is shown when supplied with the item as an additional suffix -L after the N or P

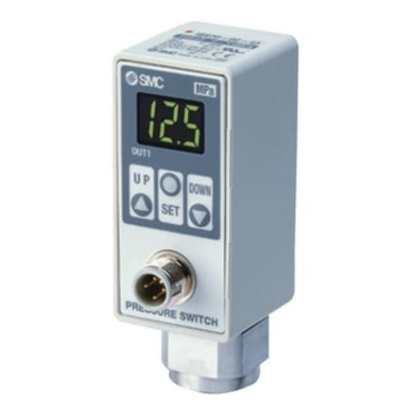

The ISE70/75(H) series pressure switches incorporate a large digital display to monitor both coolant and hydraulic fluids. These high performance, yet lightweight, pressure controls are available in three styles: the ISE70 for use with air or inert and incombustible gases (monitoring a set rated pressure range between 0.1 to 1MPa), and the ISE75 and ISE75H models (for use with fluids requiring a set rated pressure of up to 10MPa and 15MPa respectively). Available with Rc, NPT or G1/4 port thread options, and with fixed or selectable MPa or PSI pressure indications. Digital pressure switch for air w/2-colour display NPN/PNP open collectors (1 or 2 outputs)

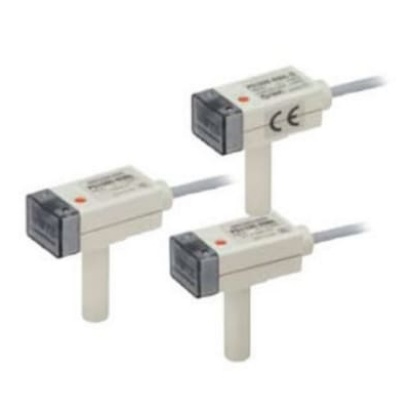

The SMC PS1000 is electronic pressure switch for positive pressure. Compact and light weight Applicable fluid is air, non-corrosive gas, non-flammable gas

The SMC ISE2 is a basic vacuum switch with 1 digital output (NPN or PNP) and no analog output is included. It monitor pressure of any non-corrosive, non-flammable gas. It used low and high pressure ranges are offered, as well as metric or NPTF male thread connections. It used rotary trimmer adjust the switch set point. A red LED indicator also light to correspond with the output signal. It has electrical connection include a 3 wire grommet cable or snap-in connector. Power supply requirement 12 to 24 VDC Repeatability ±1% of F.S.

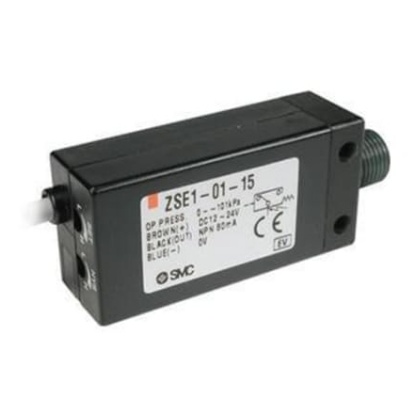

The SMC ZSE1 series is a compact vacuum pressure switch available with hysteresis adjustment and has quick response time of 10 ms. It is light weight and the optional plug-in connector makes wiring easy and simple. High accuracy Heat resistant electrical wire Maximum pressure 200 kPa

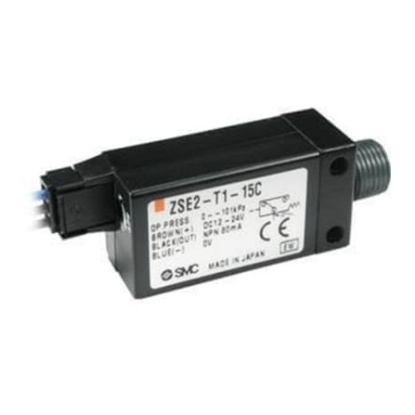

The SMC ZSE2 series is a compact pressure switch and can be integrated with ZX or ZR vacuum systems. It has a quick response time of 10mS and the plug connector option makes wiring easy and simple. Maximum pressure 200 kPa R 1/8 piping connection Heat-resistant vinyl electrical wire
