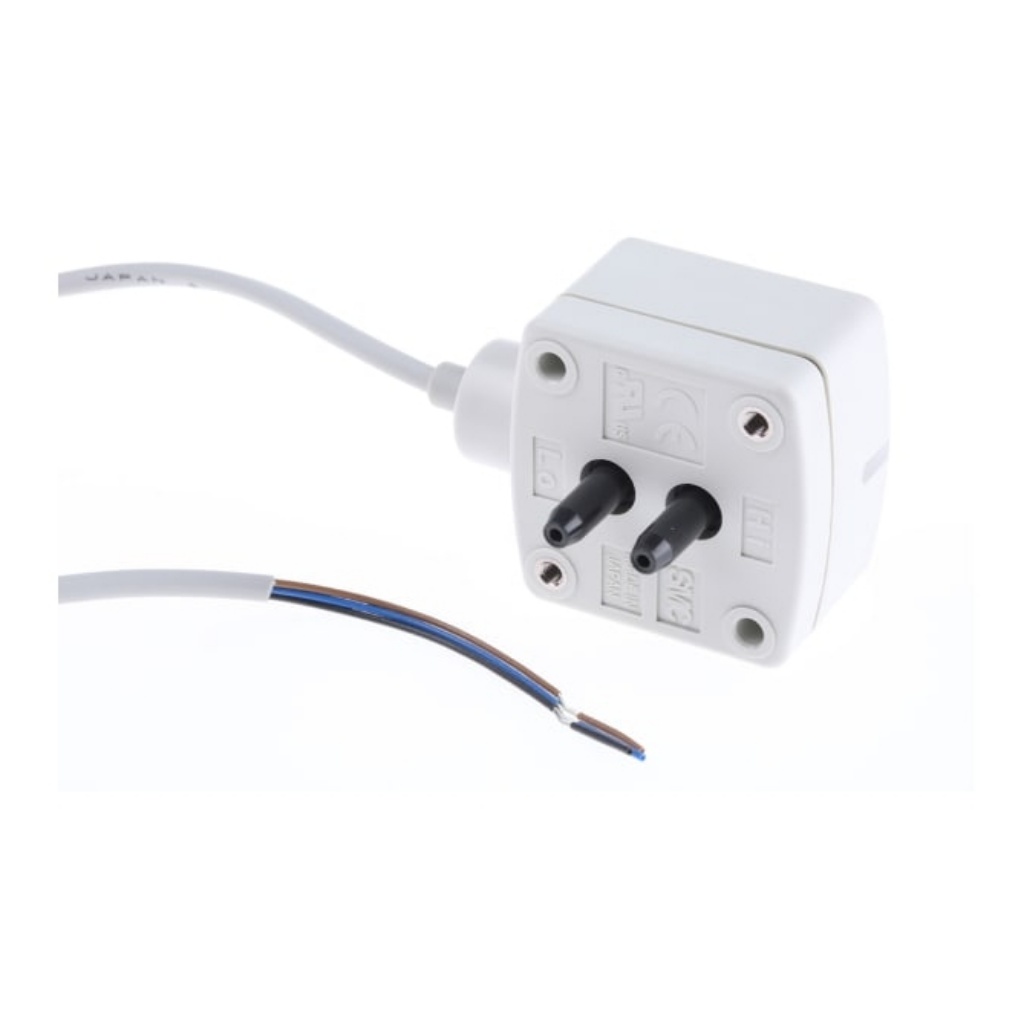

Picture of Pressure Sensor 65kPa, 12 → 24V dc, IP40 50 kPa, SMC, PSE550

Pressure Sensor 65kPa, 12 → 24V dc, IP40 50 kPa, SMC, PSE550

Low-differential Pressure Sensor without connector or bracket

High-sensitivity differential pressure sensor with an analogue output, suitable for use with the SMC PSE201 & PSE303 controllers. (See stock nos. 537-2675 and 537-2697) The sensor is ideal for checking the performance of dust and air conditioning filters, and duct sensing applications.

Light weight and easy to install
E-con 4-pole signal connector
4mm hose tail port connections
Power-on indicator LED
Temperature Range 0 to 50°C
Weight 35g
Comes without connector or bracket
Manufacturer: SMC
SKU: PSE550
$425.96
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Suitable MediaAir, Gas
Maximum Operating Pressure50 kPa
Minimum Operating Pressure-50kPa
Proof Pressure65kPa
Supply Voltage12 → 24V dc
IP RatingIP40
Minimum Operating Temperature0°C
Maximum Operating Temperature+50°C
