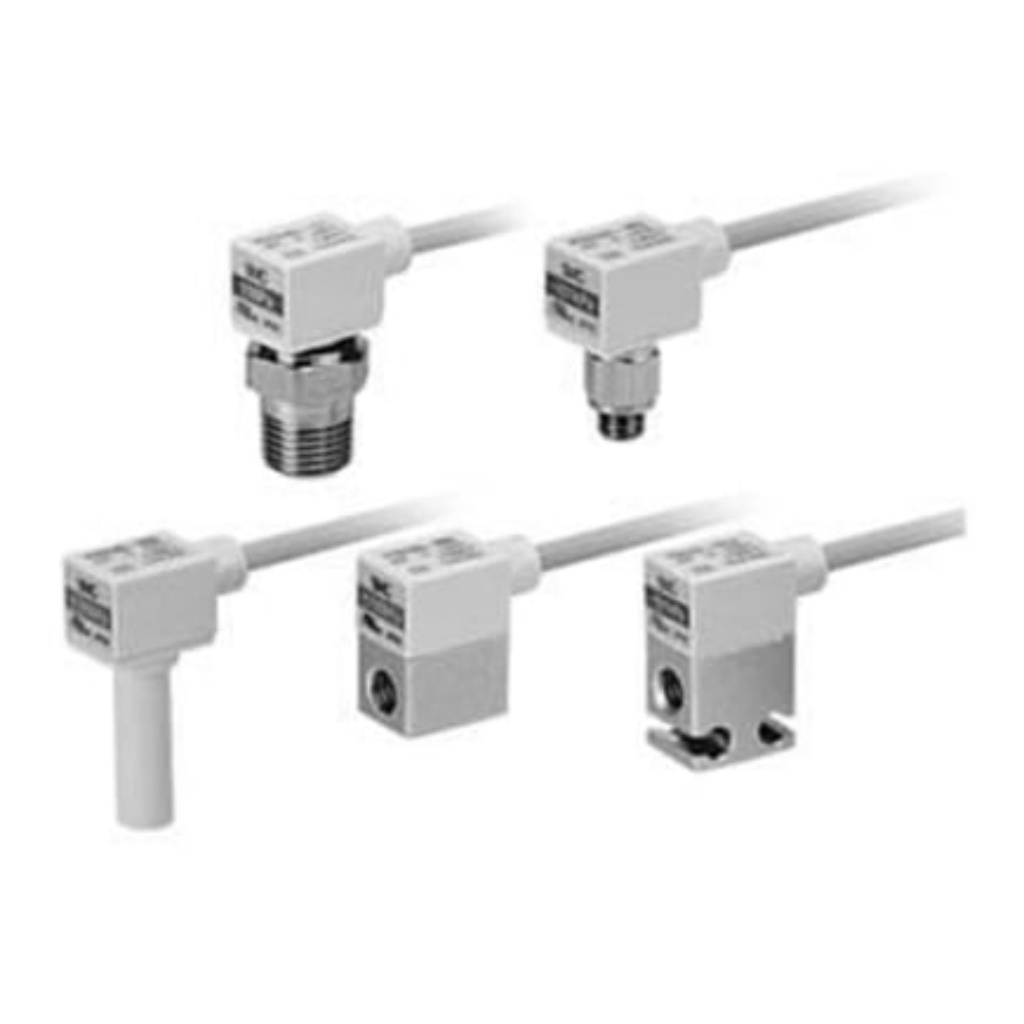

Picture of Pressure Sensor 500kPa, 24V, IP40 1 bar, SMC, PSE543-R04

Pressure Sensor 500kPa, 24V, IP40 1 bar, SMC, PSE543-R04

The SMC PSE530 series of remote pressure sensors with a 1 to 5V analog signal output. It is for a standard pneumatic system's pressure range, while the 532 model is for low pressure. The sensors measure pressure of any non-corrosive, non-flammable gas. An accuracy of ±2% of the full scale rated pressure range is suitable for general purpose applications. The cable is molded into the sensor head and is not replaceable.

Power supply requirement 12 to 24 VDC
2 accuracy option ±1% or ±2% of F.S.
Repeatability ±0.2% of F.S.
Manufacturer: SMC
SKU: PSE543-R04
$161.79
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Suitable MediaAir, Gas
Maximum Operating Pressure1 bar
Port Connection4 Dia. mm
Proof Pressure500kPa
Supply Voltage24V
IP RatingIP40
