Pneumatic Piston Rod Cylinders

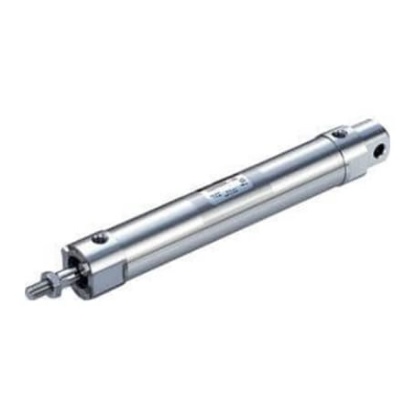

The SMC CG5-S series used double acting, single rod which is a stainless steel cylinder, it is perfect for use in wash down applications such as food processing machinery requiring intense cleaning. The use of non-toxic additives allows confident use in equipment for foods, beverages and medical products. The use of stainless steel (SUS304) on external metal parts provides improved corrosion resistance in environments with exposure to water Auto switch capable Special scraper prevents water from entering cylinder

The SMC series 55-C76 is an ATEX category 2/3 air pilot process pump suitable for transfer and recovery of a wide variety of fluids. It has easy maintenance due to structural design that allow the diaphragm and check valve to be replaced individually. 2 to 5 times longer life than that of conventional pumps Compact, large capacity Air pilot type process pump

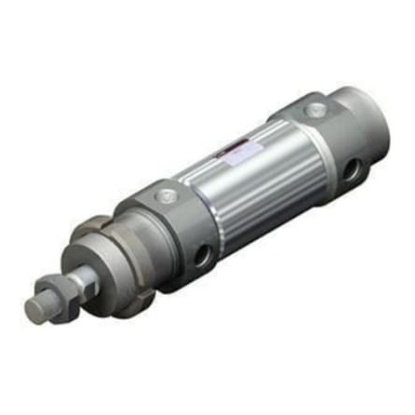

The SMC C76 series air cylinder non-rotating type is made from stainless steel. The large spanner flats on the rod and head covers greatly simplify their installation and positioning. These cylinders are designed to operate using relatively low air pressure of up to 1.0 Map. It has stroke length of up to 80 mm. Easy accurate mounting High speed actuation Strong, corrosion proof barrel Minimized side clearance Rod packing can be quickly replaced, greatly extending the cylinder life

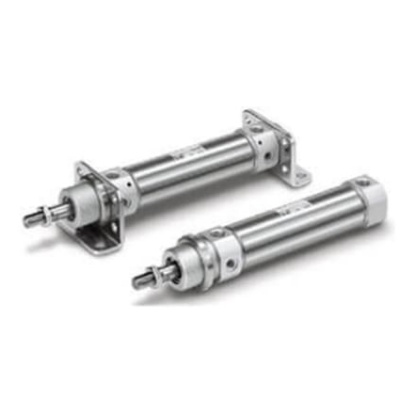

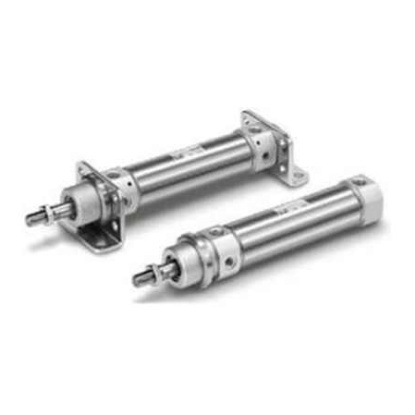

The SMC C75 series air cylinder offer a simple, space saving design with high dimensional accuracy, making this cylinder very easy to use. It has large spanner flat on the rod and head covers greatly simplify their installation and positioning. It used double acting and single rod with 40 mm of bore size. Rod boots available 5 standard mounting brackets available Easy accurate mounting Used rubber bumper cushion

The SMC C75 series air cylinder offer a simple, space saving design with high dimensional accuracy, making these cylinder very easy to use. It has large spanner flat on the rod and head covers greatly simplify their installation and positioning. It has maximum operating pressure 1.0MPa. Easy accurate mounting Bore size 32 mm Rod boots available 5 standard mounting brackets available

The SMC C76 series air cylinder offer a simple, space saving design with high dimensional accuracy, making these cylinder very easy to use. It has large spanner flat on the rod and head covers greatly simplify their installation and positioning. It has maximum operating pressure 1.0MPa. Easy accurate mounting High speed actuation Strong, corrosion proof barrel Minimized side clearance

The SMC series CQ2 offers compact cylinder with single acting and single rod. Improved auto-switch mounting possibilities plus an overall reduction of cylinder weight of between 5 -13% depending on the model. Minimise overall machine weight and increase the productivity Save space in your machines Fit CQ2 to your application requirements

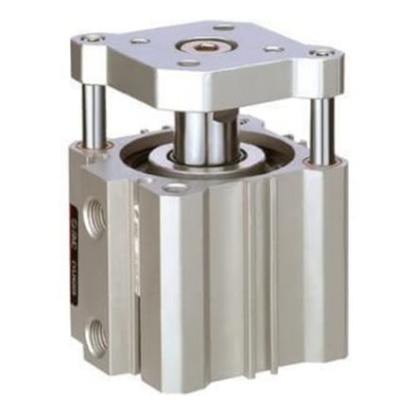

The SMC CQM series is a compact cylinder integrated with a guide rod and plate. It is non-rotating accuracy is 0.2 or less and it allows a work piece to be mounted directly to the tooling plate. The auto switched are mountable/removable even when the plate is retracted. It used double acting and single rod. Ambient and fluid temperature ranges from -10 to 60°C (with auto switch) Lateral load resisting 2–4 times Mounting dimension compatible with the CQS, CQ2 series

The SMC C75 series air cylinder offer a simple, space saving design with high dimensional accuracy, making this cylinder very easy to use. It has large spanner flat on the rod and head covers greatly simplify their installation and positioning. It used double acting and single rod with 40 mm of bore size. Suitable mounting brackets can be selected for the installation condition. Improved amount of mounting freedom Rubber bumper air cushion

The SMC C75 series air cylinder offer a simple, space saving design with high dimensional accuracy, making this cylinder very easy to use. It has large spanner flat on the rod and head covers greatly simplify their installation and positioning. It used double acting and single rod with 40 mm of bore size. Suitable mounting brackets can be selected for the installation condition. Improved amount of mounting freedom Rubber bumper air cushion

The SMC CG5-S series is a stainless steel cylinder, perfect for use in wash down applications such as food processing machinery requiring intense cleaning. The use of non-toxic additives allows confident use in equipment for foods, beverages and medical products, etc. It can be disassembled, allowing replacement of seals, which promotes an extended service life. It has double acting with single rod. Auto switch capability Special scraper prevents water from entering cylinder Ambient and fluid temperature without auto switch –10 to 70°C,

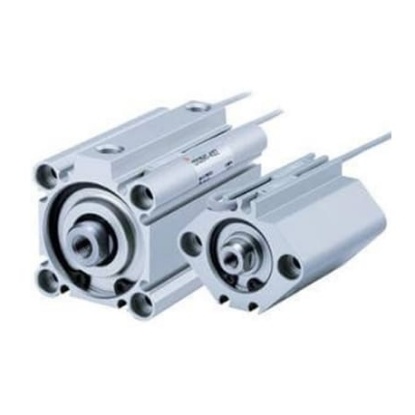

The SMC CQ2 series compact cylinder has remodelled with a new body to get more flexibility and it has double acting, single rod with auto switch mounting groove. It is possible to mount auto switches on any of the 4 surfaces. Ambient and fluid temperature ranges from -10 to 60°C (with auto switch) Small auto switch Reduction in labour for design Lighter weight
