Pneumatic Piston Rod Cylinders

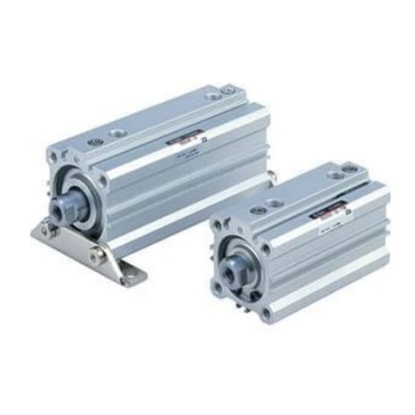

The SMC RQ series air cushion construction allow to retain the merits of a compact cylinder. The unique air cushion construction eliminate the cushion ring used in conventional type air cushions, which reduce the overall length of the cylinder. It used maximum operating pressure 0.1 MPa and used non-lune pneumatic type. More compact installation space possible Improved noise reduction Improved repeatability Noise reduction

The SMC RQ series air cushion construction allow to retain the merits of a compact cylinder. The unique air cushion construction eliminate the cushion ring used in conventional type air cushions, which reduce the overall length of the cylinder. It used maximum operating pressure 0.1 MPa and used non-lune pneumatic type. More compact installation space possible Improved noise reduction Improved repeatability Noise reduction

The SMC Compact Cylinder has wide size variations from diameter 20 to diameter 100. It has unique air cushion construction with no cushion ring. Nearly three times the allowable kinetic energy. It has improved noise reduction (Stroke end impact noise reduced) and repeatability and interchangeable mounting. Unique air cushion construction with no cushion ring Wide size variations from diameter 20 to 100 Nearly three times the allowable kinetic energy Improved noise reduction (Stroke end impact noise reduced) and repeatability Interchangeable mounting

The SMC CQM series is a compact cylinder integrated with a guide rod and plate. It is non-rotating accuracy is 0.2 or less and it allows a work piece to be mounted directly to the tooling plate. The auto switched are mountable/removable even when the plate is retracted. It used double acting and single rod. Ambient and fluid temperature ranges from -10 to 60°C (with auto switch) Lateral load resisting 2–4 times Mounting dimension compatible with the CQS, CQ2 series

The SMC CJP series single acting spring return pin cylinder compact design minimizes mounting space. It is designed to operate using relatively low air pressure of up to 0.7 Map. It has stroke length of up to 10 mm. Panel mounting Installation space can be significantly reduced Piston speed from 50 to 500 mm/s

The SMC series CJP pin cylinder, single acting, spring return. Pneumatic piston rod cylinders consist of pistons in enclosures that generate linear motion. Their compact size and low weight range allow for shorter strokes than standard cylinders which make them suitable for positioning, clamping and ejecting smaller components. Solid state auto-switches can also be mounted now Longer stroke options are now available Internal rubber bumpers provide quieter

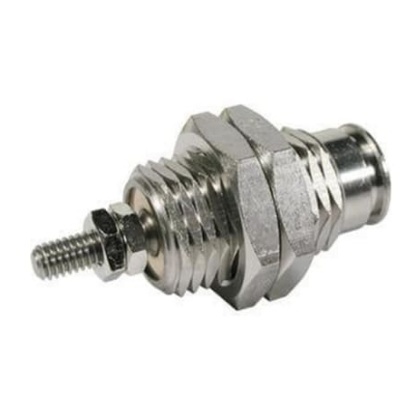

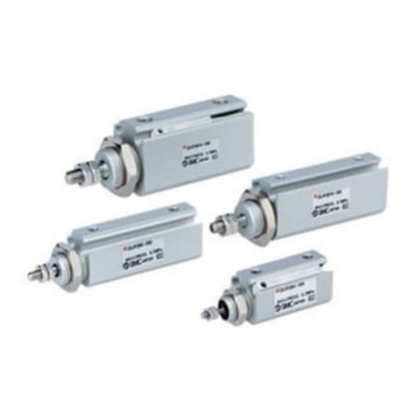

The SMC CJP2 series pneumatic pin cylinder made from hard anodised aluminium alloy and it has in built magnet. These cylinders are designed to operate using relatively low air pressure of up to 0.7 Map. It has stroke length of up to 10 mm. Cushion is rubber bumper Piston speed from 10 to 500 mm/s

The SMC Series CU compact cylinder double acting with single rod and auto switch mounting groove. Any surfaces can be used for mounting Space saving Auto-switch capable

The SMC series CJP pin cylinder, single acting, spring return. Pneumatic piston rod cylinders consist of pistons in enclosures that generate linear motion. Their compact size and low weight range allow for shorter strokes than standard cylinders which make them suitable for positioning, clamping and ejecting smaller components. Solid state auto-switches can also be mounted now Longer stroke options are now available Internal rubber bumpers provide quieter

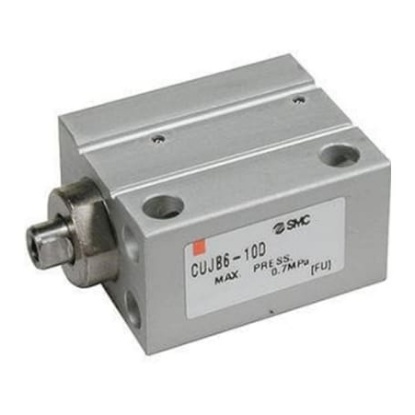

The SMC CUJ series miniature free mount series is a space saving compact cylinder. It has 6 mm of bore size with stroke lengths up to 4mm for double acting . It include auto switch capabilities, double and single acting, mounting from 4 directions. Easy seal replacement Ambient and fluid temperature –10 to 60°C (with auto switch) Non-lube lubrication

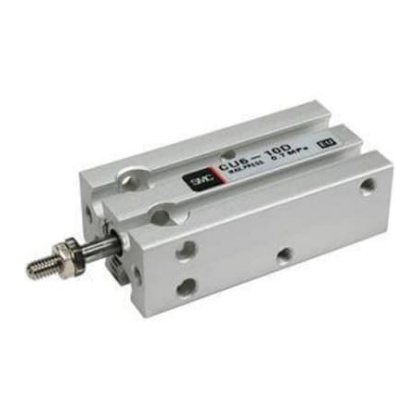

The SMC series CDU free mount cylinder and long stroke. Available as either standard or non-rotating. Rectangular design allows for precise and direct mounting. Each cylinder has a magnetic piston as standard. Spring return, spring extend Space saving Auto-switch capable

The SMC CJP series single acting spring return pin cylinder compact design minimizes mounting space. It is designed to operate using relatively low air pressure of up to 0.7 Map. It has stroke length of up to 5 mm. Embedded mounting Installation space can be significantly reduced Piston speed from 50 to 500 mm/s
