Pneumatic Piston Rod Cylinders

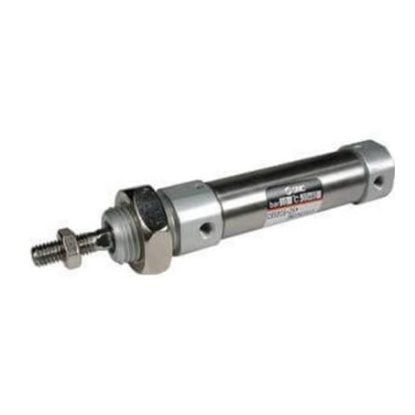

Pneumatic Cylinder - 8mm Bore, 50mm Stroke, C85 Series, Single Acting, SMC, C85N8-50T
C85N8-50T
The SMC C85 series pneumatic air cylinder conforms to ISO 6432 and CETOP RP52P. It is available in bore sizes from 8mm to 25mm with standard strokes ranging from 10mm to 300mm. A unique rod packing design prevents entry of dust and the effectiveness of the seal is such that it is suitable for use in extremely dusty environments. With abrasion resistant packing's and replaceable nose seals, it offers exceptional service life.
High quality bronze bush in clevis bearing extends the life of cylinder
Double swaging of the end covers of the barrel provides an absolutely air tight union
Easy accurate mounting
Minimized side clearance
$88.12
Pneumatic Cylinder - 8mm Bore, 50mm Stroke, C85N Series, Single Acting, SMC, C85N8-50S
C85N8-50S
The SMC series C85 offered double acting standard cylinder. It has a single rod.
ISO 6432 Round Body Cylinder
Bore sizes (mm) 8, 10, 12, 16, 20, 25
Standard strokes up to 300 mm
Cylinder variations Non-rotating, direct mount, ATEX
$87.14

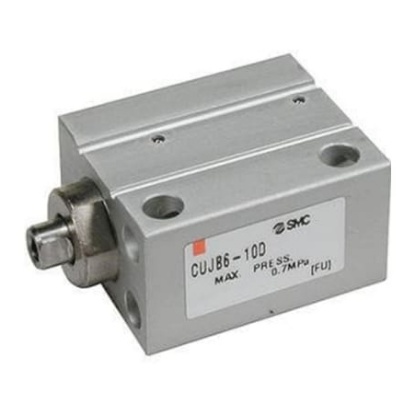

Pneumatic Cylinder - 8mm Bore, 6mm Stroke, CDU Series, SMC, CDUJB8-6D
CDUJB8-6D
The SMC series CUJ miniature free mount series is a space saving compact cylinder. It is available in 4mm to 10mm bore sizes with stroke lengths up to 20mm for double acting and 10mm for single acting. Options include auto switch capabilities, double and single acting, mounting from 4 directions.
Miniature free mount
Space saving compact cylinder
$89.89

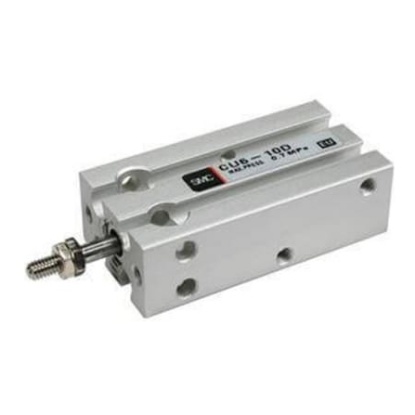

Pneumatic Cylinder - CDU Series, SMC, CDU16-50D
CDU16-50D
The SMC series CDU free mount cylinder and long stroke. Available as either standard or non-rotating. Rectangular design allows for precise and direct mounting. Each cylinder has a magnetic piston as standard.
Spring return, spring extend
Space saving
Auto-switch capable
$256.78

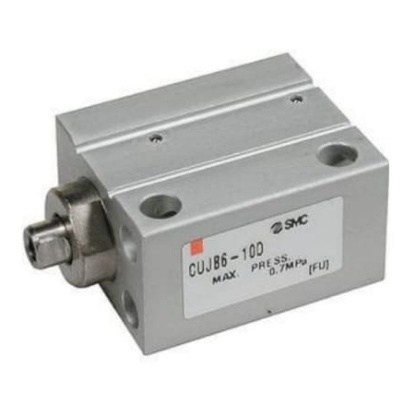

Pneumatic Cylinder - CDUJB6, 6mm Bore, 15mm Stroke, CUJ Series, Double Acting, SMC, CDUJB6-15DM
CDUJB6-15DM
The SMC CUJ mini free mount cylinder is a space saving compact cylinder. It is available in 4mm to 10mm bore sizes with stroke length up to 20mm for double acting and 10mm for single acting.
Ambient temperature is -10 to 70 °C
Through hole mounting
$79.58

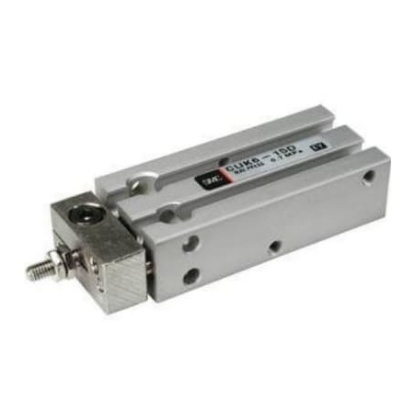

Pneumatic Cylinder - CDUK16, 16mm Bore, 60mm Stroke, CU Series, Double Acting, SMC, CDUK16-60D
CDUK16-60D
The SMC CU free mount cylinder is a space-saving air cylinder with multiple surfaces capable of direct mounting.
Auto switch capable
$307.64

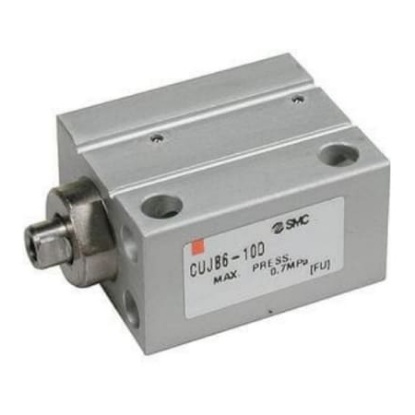

Pneumatic Cylinder - CUJB20-35, 20mm Bore, 35mm Stroke, CUJ Series, Double Acting, SMC, CUJB20-35DM
CUJB20-35DM
The SMC CUJ mini free mount cylinder is a space saving compact cylinder. It is available in 4mm to 10mm bore sizes with stroke length up to 20mm for double acting and 10mm for single acting.
Ambient temperature is -10 to 70 °C
Through hole mounting
$91.06
Pneumatic Cylinder - Cylinder Series C85, 12mm Bore, 10mm Stroke, C85 Series, Double Acting, SMC, C85N12-10S
C85N12-10S
The SMC C85 is a standard type double acting single rod air cylinder.
Ambient temperature is –20 °C to 80 °C
1.5 MPa proof pressure
$87.86

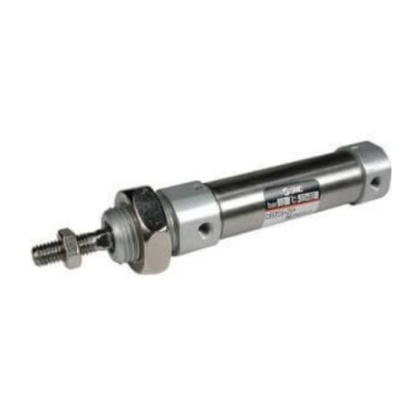

Pneumatic Cylinder - Cylinder Series C85, 16mm Bore, 10mm Stroke, C85 Series, Single Acting, SMC, CD85F16-10-B
CD85F16-10-B
The SMC C85 is a standard type double acting single rod air cylinder.
Applicable fluid is air
Ambient temperature is –20 °C to 80 °C
$107.74
Pneumatic Cylinder - Cylinder Series C85, 16mm Bore, 110mm Stroke, C85 Series, Single Acting, SMC, CD85N16-110-B
CD85N16-110-B
The SMC C85 is a standard type double acting single rod air cylinder.
Applicable fluid is air
Ambient temperature is –20 °C to 80 °C
$116.21
Pneumatic Cylinder - Cylinder Series C85, 16mm Bore, 90mm Stroke, C85 Series, Double Acting, SMC, C85N16-90
C85N16-90
The SMC C85 is a standard type double acting single rod air cylinder.
Ambient temperature is –20 °C to 80 °C
1.5 MPa proof pressure
$109.62

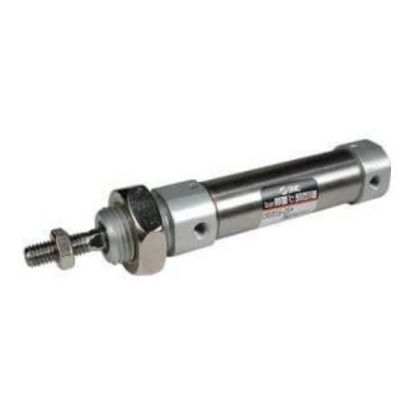

Pneumatic Cylinder - Cylinder Series C85, 20mm Bore, 25mm Stroke, C85 Series, Single Acting, SMC, CD85N25-20C-B
CD85N25-20C-B
The SMC C85 is a standard type double acting single rod air cylinder.
Applicable fluid is air
Ambient temperature is –20 °C to 80 °C
$166.38
