Pneumatic Piston Rod Cylinders

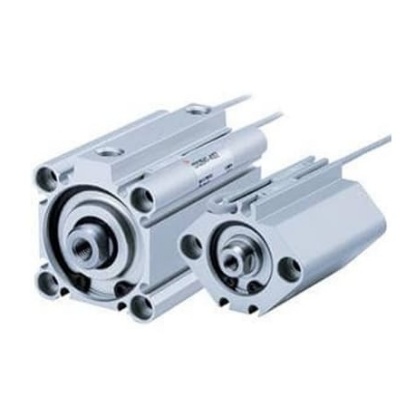

The SMC Cylinder is a CQ2 compact cylinder with a new body, making it possible to mount auto switches on any of the 4 surfaces, depending on the installation conditions. Auto switch mounting grooves have replaced the CQ2s mounting rails, preventing projection of auto switches and improving ease and safety of work. RoHS compliant Auto switch capable

The SMC compact and double rod CQ2 compact cylinder designed for efficient pneumatic automation. With improved auto switch mounting grooves, this cylinder offers enhanced safety and ease of work. Ideal for a range of applications, this cylinder is a reliable choice for industrial operations. Double acting, single rod, compact cylinder design Available in bore sizes ranging from 12 to 100 Standard stroke range from 5 to 100 Port threads options: M, Rc, NPT or G Auto switch capable for added functionality

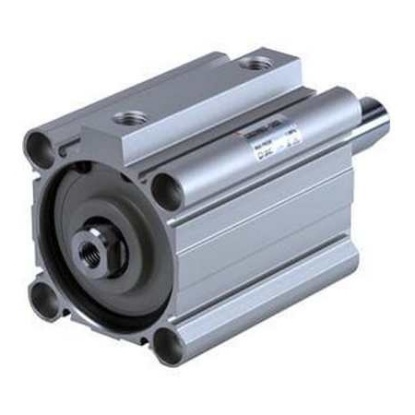

The SMC compact, double rod cylinder designed for efficient pneumatic automation. With a redesigned body for easy auto switch mounting, this cylinder offers improved safety and ease of work. Ideal for a wide range of industrial applications, the CQ2WA20-25D is a versatile and reliable choice for your automation needs. Redesigned body allows for auto switch mounting on any of the 4 surfaces Double acting, single rod design for enhanced functionality Available in various bore sizes for flexibility in application Auto switch capable for added convenience Compact and durable construction for long-lasting performance

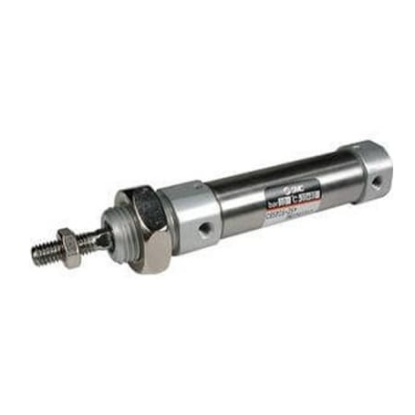

The SMC double-acting, crimped double-rod cylinder that conforms to ISO 6432 and CETOP RP52P standards. With standard strokes ranging from 10mm to 300mm, it is ideal for various industrial applications. Conforms to ISO 6432 and CETOP RP52P standards Available in bore sizes 8mm through 25mm Unique rod packing design prevents dust entry Abrasion-resistant packing and replaceable nose seals for exceptional service life Double-acting, single rod, crimped cylinder design for versatile applications

The SMC versatile and reliable pneumatic automation cylinder is designed for a wide range of industrial applications. With a unique rod packing design to prevent dust entry and exceptional service life, this cylinder is ideal for use in dusty environments. The C85 series conforms to ISO 6432 and CETOP RP52P standards, ensuring high performance and durability. Conforms to ISO 6432 and CETOP RP52P standards Available in bore sizes 8mm through 25mm Standard strokes ranging from 10mm through 300mm Double acting, single rod, crimped cylinder design Suitable for extremely dusty environments Abrasion resistant packing and replaceable nose seals

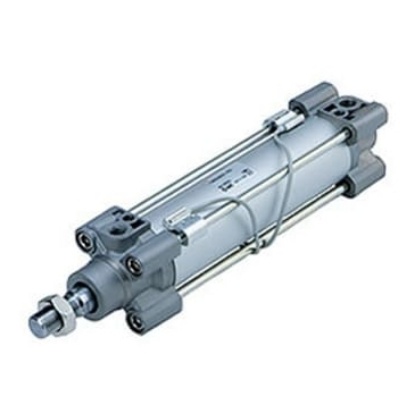

The SMC Pneumatic Piston Rod Cylinder is a C96 Series cylinders. It is available with a single or double rod in 6 bore sizes from 32 to 125mm. High accuracy covers and tie rod nuts improve mounting accuracy and extend the cylinder life. Increasing the precision of the bushing and piston rod, as well as reducing tolerances, has decreased the deflection of the piston rod. RoHS compliant Conform to 15552 ISO Standard

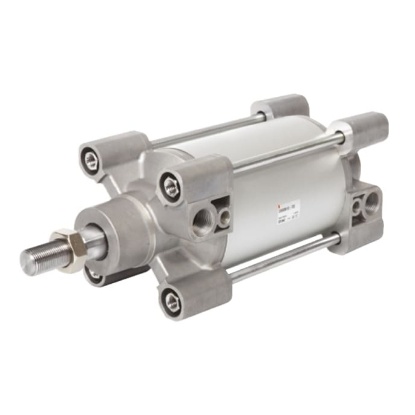

The SMC TIE-ROD CYLINDER is a high-quality product designed for precision and durability. With a range of bore sizes and standard strokes, this cylinder conforms to ISO 15552 standards, ensuring reliable performance in various applications. Conforms to ISO 15552 standards for quality assurance Available with single or double rod for added flexibility High accuracy covers and tie rod nuts for improved mounting accuracy Reduction in deflection of the piston rod for enhanced performance Offers a wide range of bore sizes and standard strokes for versatility

The SMC high-quality tie rod iso cylinder designed for precision and durability. With a range of bore sizes and standard strokes, this cylinder offers improved mounting accuracy and extended life. It is part of the C95/C96 TIE-ROD CYLINDER series, conforming to ISO 15552 standards, making it suitable for a variety of industrial applications. Conforms to ISO 15552 standards Available with single or double rod High accuracy covers and tie rod nuts for improved mounting Reduced piston rod deflection for increased precision Standard strokes range from 25 to 800mm

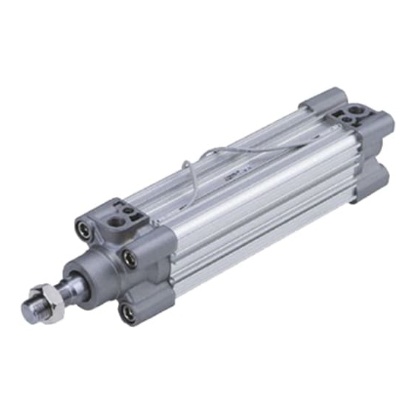

CP96-C Double Acting Cylinder The SMC CP96-C series double-acting pneumatic cylinders feature both air and bumper cushioning. Using both air and bumper cushioning reduces the length of the cushion stroke reducing cycle time and the noise at the end of the stroke. CP96-C cylinder bodies are grooved on four sides to allow the easy fitting of CNOMO or SMC M9 and A9 position sensors. Sensors can simply be slid into position from either end of the profile actuator body. CP96 Series

C96 series profile cylinders Double action single rod cylinders Basic mounting without bracket Built-in magnet without auto-switch Air Cushion at both ends C96 series Profile Cylinders and accessories

C96 series profile cylinders Double action single rod cylinders Basic mounting without bracket Built-in magnet without auto-switch Air Cushion at both ends C96 series Profile Cylinders and accessories

CP96-C Double Acting Cylinder The SMC CP96-C series double-acting pneumatic cylinders feature both air and bumper cushioning. Using both air and bumper cushioning reduces the length of the cushion stroke reducing cycle time and the noise at the end of the stroke. CP96-C cylinder bodies are grooved on four sides to allow the easy fitting of CNOMO or SMC M9 and A9 position sensors. Sensors can simply be slid into position from either end of the profile actuator body. CP96 Series
