Pneumatic Piston Rod Cylinders

The SMC CQM is a compact cylinder integrated with a guide rod and plate. It used double acting with single rod version. It has non-rotating accuracy is 0.2 or less and it allows a work piece to be mounted directly to the tooling plate. The auto switches are mountable/removable even when the plate is retracted. Lateral load resisting 2–4times Mounting dimensions compatible with the CQS, CQ2 series Ambient and fluid temperature without auto switch –10°C to 70°C

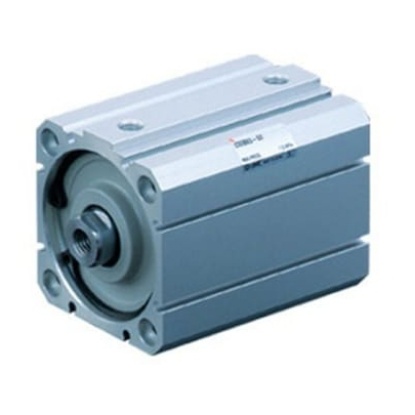

The SMC C55 double acting, air operated cylinder were designed to meet a broad range of automation machine application. It achieves outstanding load performance due to its unique rubber bumpers, piston wear ring, and rod bushing. It has standardized mounting options conform to both ISO 21287 and 6431. Snap ring construction allows easy and quicker maintenance Auto switched can be mounted on any of the four sides of the cylinder tube

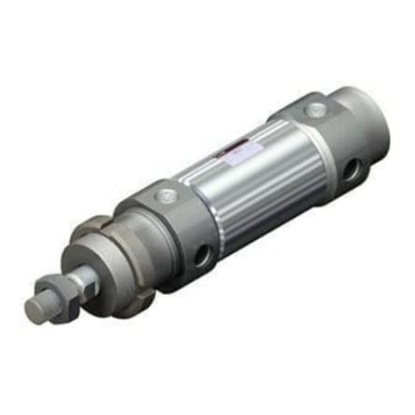

The SMC C76 series air cylinder offer a simple, space saving design with high dimensional accuracy, making these cylinder very easy to use. It has large spanner flat on the rod and head covers greatly simplify their installation and positioning. It has maximum operating pressure 1.0MPa. Easy accurate mounting High speed actuation Strong, corrosion proof barrel Minimized side clearance

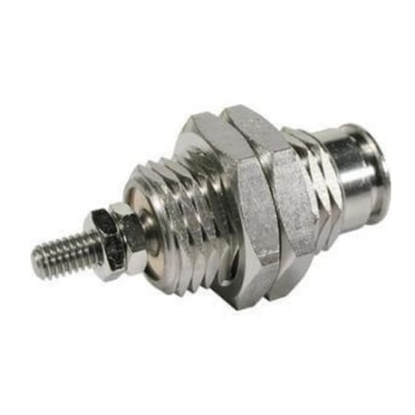

The SMC CJP series single acting spring return pin cylinder compact design minimizes mounting space. It is designed to operate using relatively low air pressure of up to 0.7 Map. It has stroke length of up to 15 mm. Panel mounting Installation space can be significantly reduced Piston speed from 50 to 500 mm/s

The SMC CJP2 series is a small bore stainless steel cylinder, designed for use in environments with water spray. It used special scraper which prevents water leakage into the cylinder. It has non-toxic additives allow confident use in equipment for food, beverage and medical products. It used double acting with single rod. Uses grease for food processing machines - meets FDA standards Water-resistant auto switch is available

The SMC series CJP pin cylinder, single acting, spring return. Pneumatic piston rod cylinders consist of pistons in enclosures that generate linear motion. Their compact size and low weight range allow for shorter strokes than standard cylinders which make them suitable for positioning, clamping and ejecting smaller components. Solid state auto-switches can also be mounted now Longer stroke options are now available Internal rubber bumpers provide quieter

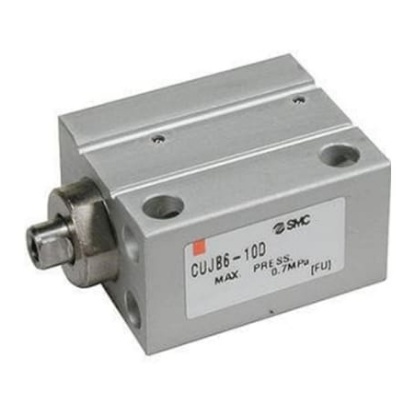

The SMC CUJ miniature free mount series is a space saving compact cylinder. It has 4 mm of bore sizes with stroke lengths up to 4mm. The options include auto switch capabilities, mounting from 4 directions. It used double acting with male rod threaded. Ambient and fluid temperature ranges from -10 to 60°C Non-lube lubrication Piston speed 50 to 500 mm/s

The SMC CUJ miniature free mount series is a space saving compact cylinder. It has 4 mm of bore sizes with stroke lengths up to 4mm. The options include auto switch capabilities, mounting from 4 directions. It used single acting with male rod threaded. Ambient and fluid temperature ranges from -10 to 60°C Non-lube lubrication Piston speed 50 to 500 mm/s

The SMC series CJP pin cylinder, single acting, spring return. Pneumatic piston rod cylinders consist of pistons in enclosures that generate linear motion. Their compact size and low weight range allow for shorter strokes than standard cylinders which make them suitable for positioning, clamping and ejecting smaller components. Solid state auto-switches can also be mounted now Longer stroke options are now available Internal rubber bumpers provide quieter

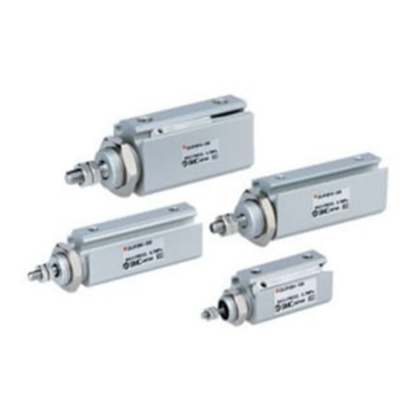

The SMC CJP2 series includes a tiny, but powerful, 16mm bore size WHICH making it the smallest double acting pin cylinder. The CJP2 is auto switch capable and other options include rubber bumper cushions, and made to order models including both heat and cold resistant types. Internal rubber bumpers provide quieter operation and longer life. Body material has been changed from brass to aluminium, achieving impressive weight reduction Overall length of the cylinder has been reduced resulting in an extremely compact cylinder

The SMC CDQ series offered double acting cylinder. It has a single rod. Pneumatic piston rod cylinders consist of pistons in enclosures that generate linear motion. Their compact size and low weight range allow for shorter strokes than standard cylinders which make them suitable for positioning, clamping and ejecting smaller components. Minimise overall machine weight and increase the productivity Save space in your machines Fit CQ2 to your application requirements

The SMC CQM series is a compact cylinder integrated with a guide rod and plate. It is non-rotating accuracy is 0.2 or less and it allows a work piece to be mounted directly to the tooling plate. The auto switched are mountable/removable even when the plate is retracted. It used double acting and single rod. Ambient and fluid temperature ranges from -10 to 60°C (with auto switch) Lateral load resisting 2–4 times Mounting dimension compatible with the CQS, CQ2 series
