Pneumatic Piston Rod Cylinders

The SMC C75 series air cylinder offer a simple, space saving design with high dimensional accuracy, making this cylinder very easy to use. It has large spanner flat on the rod and head covers greatly simplify their installation and positioning. It used double acting and single rod with 40 mm of bore size. Suitable mounting brackets can be selected for the installation condition. Improved amount of mounting freedom Rubber bumper air cushion

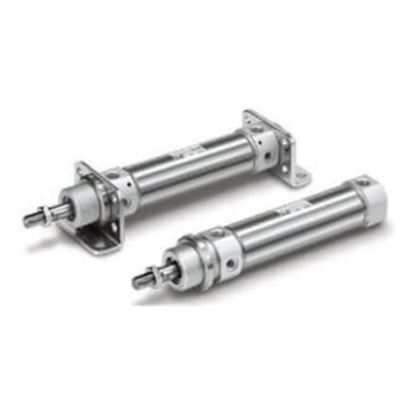

The SMC C75 series air cylinder offer a simple, space saving design with high dimensional accuracy, making this cylinder very easy to use. It has large spanner flat on the rod and head covers greatly simplify their installation and positioning. It used double acting and single rod with 32 mm of bore size. Rod boots available 5 standard mounting brackets available Easy accurate mounting Used rubber bumper cushion

The SMC C85 series single rod, double acting, conforms to ISO 6432 and CETOP RP52P. The C85 is available in bore sizes 8mm through 30mm. A unique rod packing's design prevents entry of dust and the effectiveness of the seal is such that the C85 is suitable for use in extremely dusty environments. With abrasion resistant packing's and replaceable piston rod seals, the C85 offers exceptional service life Auto switch capable Easy accurate mounting Minimized side clearance Ambient and fluid temperature -20 °C to 80 °C Without auto switch (No freezing)

The SMC C55 double acting, air operated cylinder were designed to meet a broad range of automation machine application. It achieves outstanding load performance due to its unique rubber bumpers, piston wear ring, and rod bushing. It has standardized mounting options conform to both ISO 21287 and 6431. Snap ring construction allows easy and quicker maintenance Auto switched can be mounted on any of the four sides of the cylinder tube

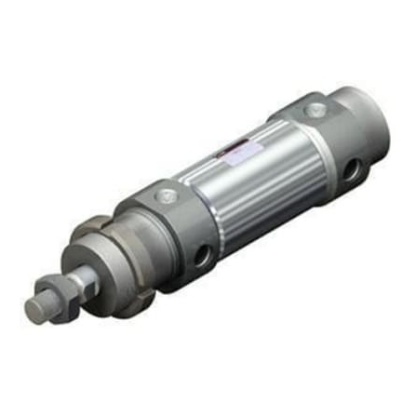

The SMC C76 series air cylinder offer a simple, space saving design with high dimensional accuracy, making this cylinder very easy to use. It has large spanner flat on the rod and head covers greatly simplify their installation and positioning. It used double acting and single rod with 32 mm of bore size. Rod boots available Maximum operating pressure 1.0MPa Used rubber bumper cushion

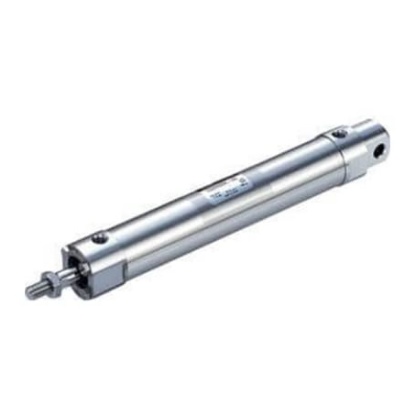

The SMC CG5-S series used double acting, single rod which is a stainless steel cylinder, it is perfect for use in wash down applications such as food processing machinery requiring intense cleaning. The use of non-toxic additives allows confident use in equipment for foods, beverages and medical products. The use of stainless steel (SUS304) on external metal parts provides improved corrosion resistance in environments with exposure to water Auto switch capable Special scraper prevents water from entering cylinder

The SMC CG5-S series is a stainless steel cylinder, perfect for use in wash down applications such as food processing machinery requiring intense cleaning. The use of non-toxic additives allows confident use in equipment for foods, beverages and medical products, etc. It can be disassembled, allowing replacement of seals, which promotes an extended service life. It has double acting with single rod. Auto switch capability Special scraper prevents water from entering cylinder Ambient and fluid temperature without auto switch –10 to 70°C,

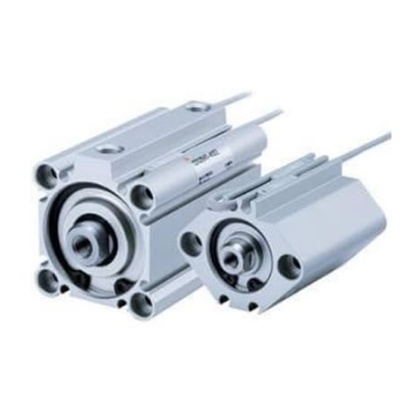

The SMC CQ2 series compact cylinder has remodelled with a new body to get more flexibility and it has double acting, single rod with auto switch mounting groove. It is possible to mount auto switches on any of the 4 surfaces. Ambient and fluid temperature ranges from -10 to 60°C Small auto switch Reduction in labour for design Lighter weight

The SMC CQ2 series compact cylinder has remodelled with a new body to get more flexibility and it has double acting, single rod with auto switch mounting groove. It is possible to mount auto switches on any of the 4 surfaces. Ambient and fluid temperature ranges from -10 to 60°C (with auto switch) Small auto switch Reduction in labour for design Lighter weight

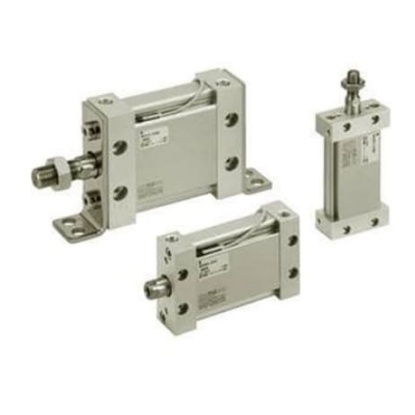

The SMC MU plate single rod, double acting, cylinder, with its elliptical design, provide a low profile while maintaining force output. The cylinder can eliminate the need for higher operating pressures that may be required for typical flat cylinder. The oval piston shape also provide an intrinsic non-rotating function without having to use a rod with flats, offering increased bearing and seal life. Possible to mount without brackets Auto switch mounting grooves prevent projection of auto switches Auto switches can be mounted in 4 directions

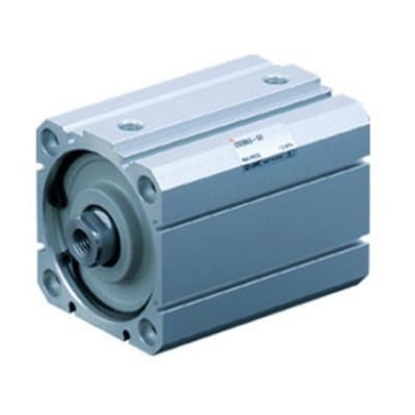

The SMC C55 series pneumatic compact cylinder made from hard anodised aluminium alloy and it has in built magnet. It has stroke length of up to 60 mm including the benefits of standardised mounting dimensions. It achieves outstanding load performance due to its unique rubber bumper, piston wear ring, and rod bushing. Double acting Possible to mount small auto switches on 4 surfaces Conforms with the ISO 21287 standard

The SMC M2-Z double acting, single rod, stainless steel cylinder are compact, lightweight and offer high performance. The piston seal and rod seal design provides excellent life. Transparent auto switch bracket provides visibility of the status of the switch. Easy fine adjustment of auto switch position Total length shortened with boss-cut type
