Pneumatic Piston Rod Cylinders

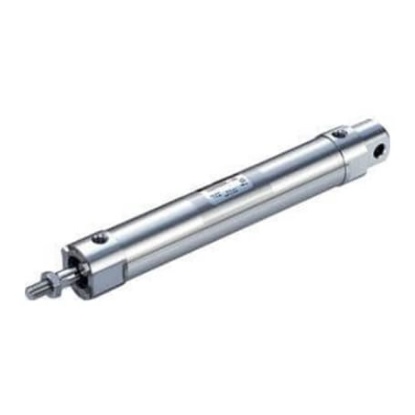

The SMC CG5-S series is a stainless steel cylinder, perfect for use in wash down applications such as food processing machinery requiring intense cleaning. The use of non-toxic additives allows confident use in equipment for foods, beverages and medical products, etc. It can be disassembled, allowing replacement of seals, which promotes an extended service life. It has double acting with single rod. Auto switch capability Special scraper prevents water from entering cylinder Ambient and fluid temperature without auto switch –10 to 70°C,

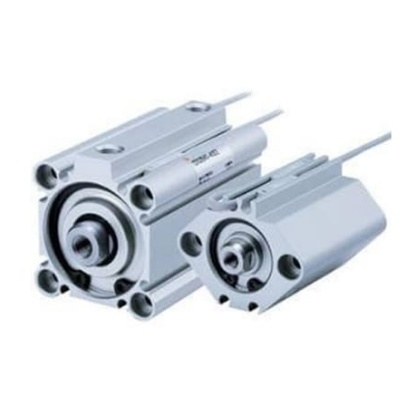

The SMC CQ2 series compact cylinder has remodelled with a new body to get more flexibility and it has double acting, single rod with auto switch mounting groove. It is possible to mount auto switches on any of the 4 surfaces. Ambient and fluid temperature ranges from -10 to 60°C Small auto switch Reduction in labour for design Lighter weight

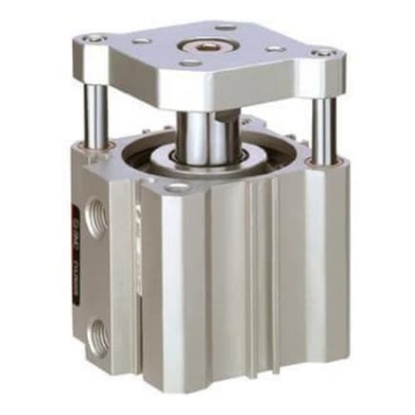

The SMC CQM is a compact cylinder integrated with a guide rod and plate. It used double acting with single rod version. It has non-rotating accuracy is 0.2 or less and it allows a work piece to be mounted directly to the tooling plate. The auto switches are mountable/removable even when the plate is retracted. Lateral load resisting 2–4times Mounting dimensions compatible with the CQS, CQ2 series Ambient and fluid temperature without auto switch –10°C to 70°C

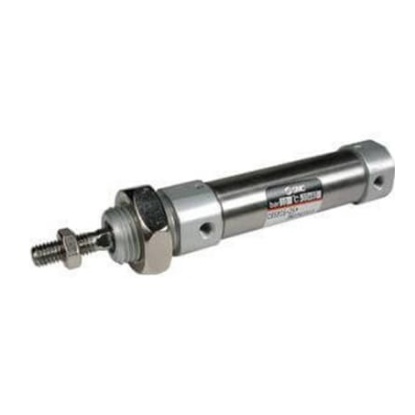

The SMC C85 series pneumatic air cylinder conforms to ISO 6432 and CETOP RP52P. It is available in bore sizes from 8mm to 25mm with standard strokes ranging from 10mm to 300mm. A unique rod packing design prevents entry of dust and the effectiveness of the seal is such that it is suitable for use in extremely dusty environments. With abrasion resistant packing's and replaceable nose seals, it offers exceptional service life. High quality bronze bush in clevis bearing extends the life of cylinder Double swaging of the end covers of the barrel provides an absolutely air tight union Easy accurate mounting Minimized side clearance

The SMC C85 series has single rod, double acting, conforms to ISO 6432 and it has 25 mm of bore size. A unique rod packing's design prevents entry of dust and the effectiveness of the seal is such that the C85 is suitable for use in extremely dusty environments. With abrasion resistant packing's and replaceable piston rod seals, it offers exceptional service life. Ambient and fluid temperature ranges from -10 to 60°C Auto switch capable

The SMC C85 series pneumatic air cylinder conforms to ISO 6432 and CETOP RP52P. It is available in bore sizes from 8mm to 25mm with standard strokes ranging from 10mm to 300mm. A unique rod packing design prevents entry of dust and the effectiveness of the seal is such that it is suitable for use in extremely dusty environments. With abrasion resistant packing's and replaceable nose seals, it offers exceptional service life. High quality bronze bush in clevis bearing extends the life of cylinder Double swaging of the end covers of the barrel provides an absolutely air tight union Easy accurate mounting Minimized side clearance

The SMC C85 series pneumatic air cylinder conforms to ISO 6432 and CETOP RP52P. It is available in bore sizes from 8mm to 25mm with standard strokes ranging from 10mm to 300mm. A unique rod packing design prevents entry of dust and the effectiveness of the seal is such that it is suitable for use in extremely dusty environments. With abrasion resistant packing's and replaceable nose seals, it offers exceptional service life. High quality bronze bush in clevis bearing extends the life of cylinder Double swaging of the end covers of the barrel provides an absolutely air tight union Easy accurate mounting Minimized side clearance

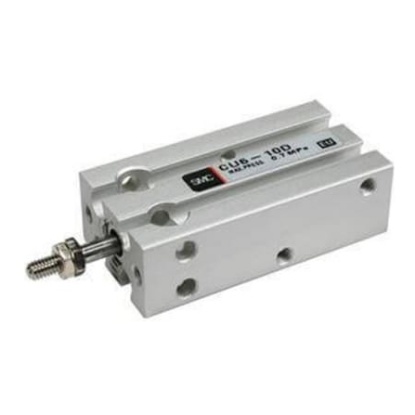

The SMC CU series single rod, double acting, long stroke, free mount cylinder saves space and allows direct and precise mounting. The long stroke version is available with stroke lengths up to 100mm. The options include auto-switch capabilities, free mount choices, recessed switch mounting grooves and rubber bumpers standard. It has 25 mm of bore size. Any surfaces can be used for mounting Auto switch capable Stroke length is 80 mm

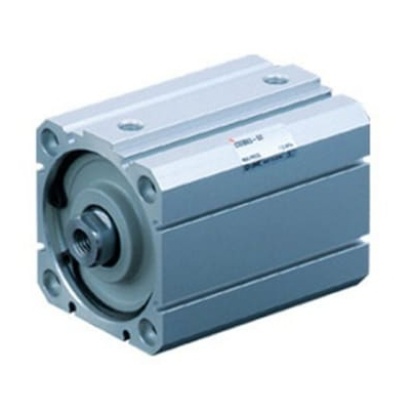

The SMC C55 double acting, air operated cylinder were designed to meet a broad range of automation machine application. It achieves outstanding load performance due to its unique rubber bumpers, piston wear ring, and rod bushing. It has standardized mounting options conform to both ISO 21287 and 6431. Snap ring construction allows easy and quicker maintenance Auto switched can be mounted on any of the four sides of the cylinder tube

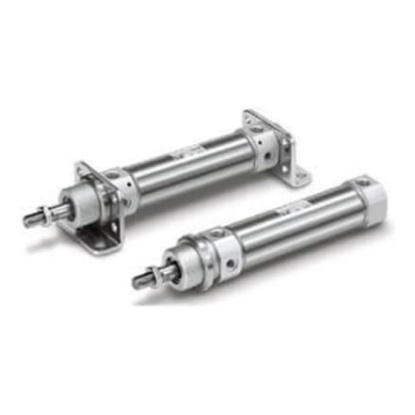

The SMC C75 series air cylinder offer a simple, space saving design with high dimensional accuracy, making this cylinder very easy to use. It has large spanner flat on the rod and head covers greatly simplify their installation and positioning. It used double acting and single rod with 40 mm of bore size. Suitable mounting brackets can be selected for the installation condition. Improved amount of mounting freedom Rubber bumper air cushion

The SMC CQ2 series compact cylinder has remodelled with a new body to get more flexibility and it has double acting, single rod with auto switch mounting groove. It is possible to mount auto switches on any of the 4 surfaces. Ambient and fluid temperature ranges from -10 to 60°C Small auto switch Reduction in labour for design Lighter weight

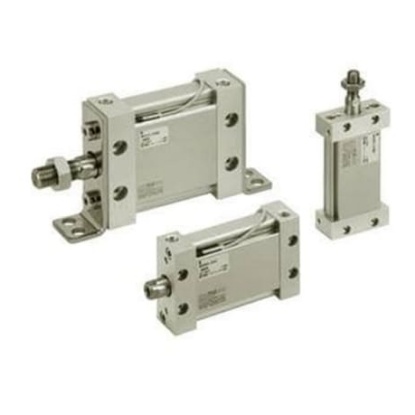

The SMC MU plate single rod, double acting, cylinder, with its elliptical design, provide a low profile while maintaining force output. The cylinder can eliminate the need for higher operating pressures that may be required for typical flat cylinder. The oval piston shape also provide an intrinsic non-rotating function without having to use a rod with flats, offering increased bearing and seal life. Possible to mount without brackets Auto switch mounting grooves prevent projection of auto switches Auto switches can be mounted in 4 directions
