Pneumatic Piston Rod Cylinders

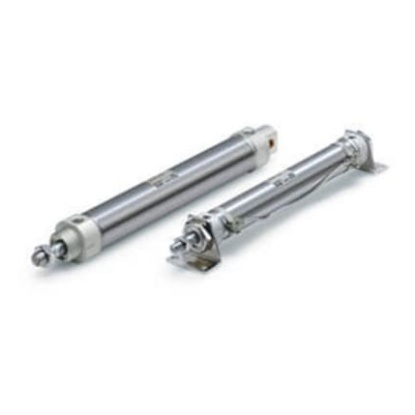

The SMC CM2 series air cylinder double acting made from stainless steel and has in built magnet. These cylinders are designed to operate using relatively low air pressure of up to 1.0 Map. It has stroke length of up to 10 mm. Total length is shortened with boss-cut type Piston speed from 50 to 750 mm/s

The SMC series CQ2 offers compact cylinder with single acting and single rod. Improved auto-switch mounting possibilities plus an overall reduction of cylinder weight of between 5 -13% depending on the model. Minimise overall machine weight and increase the productivity Save space in your machines Fit CQ2 to your application requirements

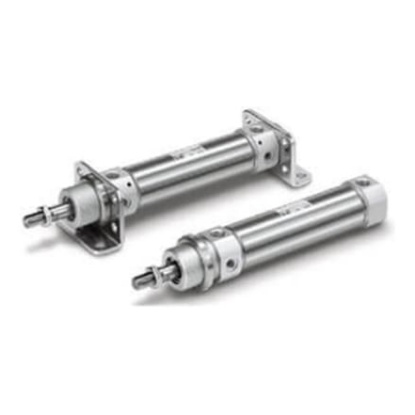

The SMC C75 series air cylinder offer a simple, space saving design with high dimensional accuracy, making these cylinder very easy to use. It has large spanner flat on the rod and head covers greatly simplify their installation and positioning. It has maximum operating pressure 1.0MPa. Easy accurate mounting Bore size 32 mm Rod boots available 5 standard mounting brackets available

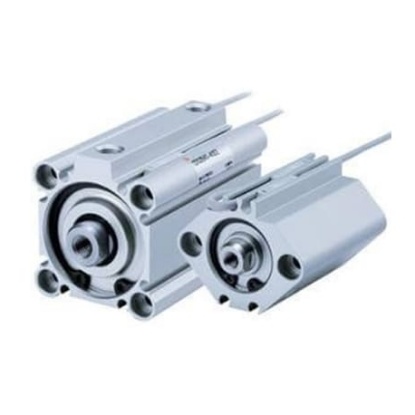

The SMC CQ2 series compact cylinder has remodelled with a new body to get more flexibility and it has double acting, single rod with auto switch mounting groove. It is possible to mount auto switches on any of the 4 surfaces. Ambient and fluid temperature ranges from -10 to 60°C Small auto switch Reduction in labour for design Lighter weight

The SMC CQ2 series compact cylinder has remodelled with a new body to get more flexibility and it has double acting, single rod with auto switch mounting groove. It is possible to mount auto switches on any of the 4 surfaces. Ambient and fluid temperature ranges from -10 to 60°C (with auto switch) Small auto switch Reduction in labour for design Lighter weight

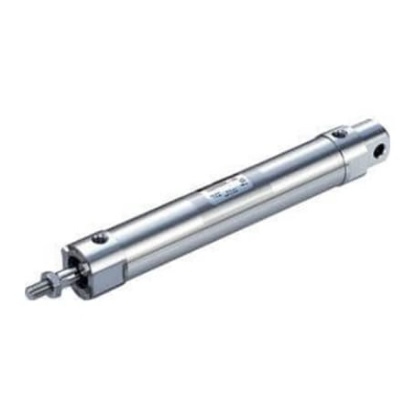

The SMC CG5-S series used double acting, single rod which is a stainless steel cylinder, it is perfect for use in wash down applications such as food processing machinery requiring intense cleaning. The use of non-toxic additives allows confident use in equipment for foods, beverages and medical products. The use of stainless steel (SUS304) on external metal parts provides improved corrosion resistance in environments with exposure to water Auto switch capable Special scraper prevents water from entering cylinder

The SMC CM2 series air cylinder double acting made from stainless steel and has in built magnet. These cylinders are designed to operate using relatively low air pressure of up to 1.0 Map. It has stroke length of up to 200 mm. Total length is shortened with boss-cut type Piston speed from 50 to 750 mm/s

The SMC CQ2 series compact cylinder has remodelled with a new body to get more flexibility and it has double acting, single rod with auto switch mounting groove. It is possible to mount auto switches on any of the 4 surfaces. Ambient and fluid temperature ranges from -10 to 60°C (with auto switch) Small auto switch Reduction in labour for design Lighter weight

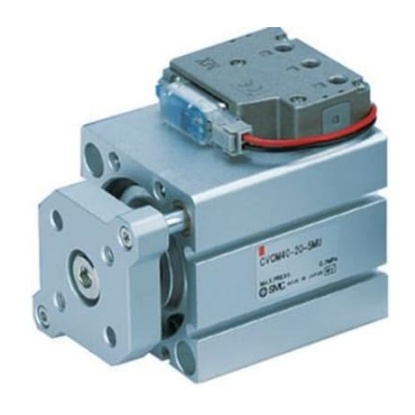

The SMC CVQ offers a compact cylinder and valve integrated for compactness. It offers space, energy, and labour savings. It reducing the piping between the cylinder and valve offers approximately 50% reduction in air consumption. It is designed so that the D-M9 series auto switch can be mounted flush with the cylinder profile. Guide rod configuration with improved lateral load resistance Plate non-rotating accuracy ±0.1° Mounting pitch is interchangeable with CQ2 series

The SMC C75 series air cylinder offer a simple, space saving design with high dimensional accuracy, making this cylinder very easy to use. It has large spanner flat on the rod and head covers greatly simplify their installation and positioning. It used double acting and single rod with 32 mm of bore size. Rod boots available 5 standard mounting brackets available Easy accurate mounting Used rubber bumper cushion

The SMC C75 series air cylinder offer a simple, space saving design with high dimensional accuracy, making this cylinder very easy to use. It has large spanner flat on the rod and head covers greatly simplify their installation and positioning. It used double acting and single rod with 40 mm of bore size. Suitable mounting brackets can be selected for the installation condition. Improved amount of mounting freedom Rubber bumper air cushion

The SMC CM2-Z double acting, single rod, stainless steel cylinder are compact, lightweight and offer high performance. The piston seal and rod seal design provides excellent life. Transparent auto switch bracket provides visibility of the status of the switch. Easy fine adjustment of auto switch position Total length shortened with boss-cut type
