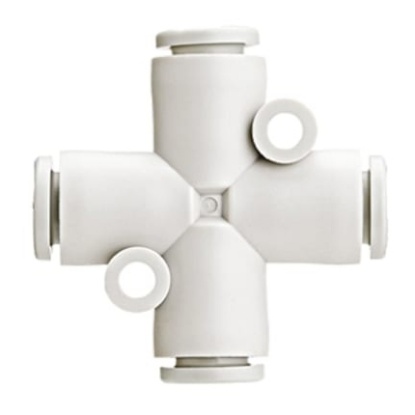

Picture of KQ2 Series Cross Tube-to-Tube Adaptor, Push In 8 mm to Push In 8 mm, Tube-to-Tube Connection Style, SMC, KQ2TW08-00A

KQ2 Series Cross Tube-to-Tube Adaptor, Push In 8 mm to Push In 8 mm, Tube-to-Tube Connection Style, SMC, KQ2TW08-00A

KQ2TW08-00A
Cross Fitting KQ2TW The KQ2TW cross fittings from SMC are quick and easy to install into your fittings. These KQ2TW cross fittings are also more compact in design which means that they can be used within a confined space. Cross fittings are designed to four-branch tubing lines. The new KQ2 range of products are lighter than previous models and have the advantage of improved insertion and removal forces Can be used under a wide range of pressures from a low vacuum to 1MPa Low force required for fitting and removal Compact dimensions for use within smaller spaces Tube-to-Tube Fittings & Plugs Sealant coated threads minimise assembly time. The fittings can be used on vacuum or positive pressure lines. Suitable for use with nylon, soft nylon or polyurethane tube for compressed air or water (general industry) conveyance. Maximum operating pressure 10 bar Maximum vacuum operating pressure -100kPa Proof pressure 3MPa Ambient and fluid temperature -5 to +60°C (water 0 - 40°C)
$86.09

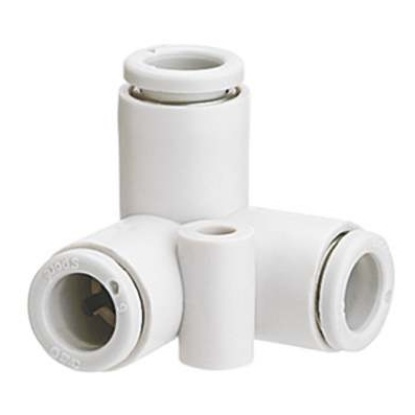

Picture of KQ2 Series Delta Union Tube-to-Tube Adaptor, Push In 4 mm to Push In 4 mm, Tube-to-Tube Connection Style, SMC, KQ2D04-00A

KQ2 Series Delta Union Tube-to-Tube Adaptor, Push In 4 mm to Push In 4 mm, Tube-to-Tube Connection Style, SMC, KQ2D04-00A

KQ2D04-00A
Delta Union KQ2D The KQ2D delta union fittings from SMC are quick and easy to install into your fittings. These KQ2D delta unions are also more compact in design which means that these delta unions can be used within a confined space. Delta unions are designed to branch tubing at three right angles. The new KQ2 range of products are lighter than previous models and have the advantage of improved insertion and removal forces. Can be used under a wide range of pressures from a low vacuum to 1MPa Low force required for fitting and removal Compact dimensions for use within smaller spaces Tube-to-Tube Fittings & Plugs Sealant coated threads minimise assembly time. The fittings can be used on vacuum or positive pressure lines. Suitable for use with nylon, soft nylon or polyurethane tube for compressed air or water (general industry) conveyance. Maximum operating pressure 10 bar Maximum vacuum operating pressure -100kPa Proof pressure 3MPa Ambient and fluid temperature -5 to +60°C (water 0 - 40°C)
$70.63

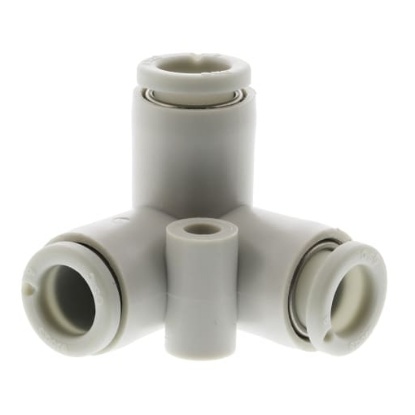

Picture of KQ2 Series Delta Union Tube-to-Tube Adaptor, Push In 6 mm to Push In 6 mm, Tube-to-Tube Connection Style, SMC, KQ2D06-00A

KQ2 Series Delta Union Tube-to-Tube Adaptor, Push In 6 mm to Push In 6 mm, Tube-to-Tube Connection Style, SMC, KQ2D06-00A

KQ2D06-00A
Delta Union KQ2D The KQ2D delta union fittings from SMC are quick and easy to install into your fittings. These KQ2D delta unions are also more compact in design which means that these delta unions can be used within a confined space. Delta unions are designed to branch tubing at three right angles. The new KQ2 range of products are lighter than previous models and have the advantage of improved insertion and removal forces. Can be used under a wide range of pressures from a low vacuum to 1MPa Low force required for fitting and removal Compact dimensions for use within smaller spaces Tube-to-Tube Fittings & Plugs Sealant coated threads minimise assembly time. The fittings can be used on vacuum or positive pressure lines. Suitable for use with nylon, soft nylon or polyurethane tube for compressed air or water (general industry) conveyance. Maximum operating pressure 10 bar Maximum vacuum operating pressure -100kPa Proof pressure 3MPa Ambient and fluid temperature -5 to +60°C (water 0 - 40°C)
$79.81

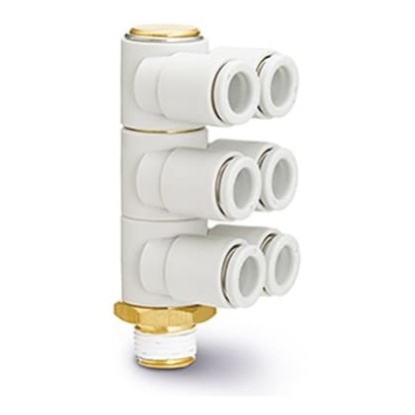

Picture of KQ2 Series Double Branch Universal Male Elbow, R 1/2 to Push In 10 mm, Threaded-to-Tube Connection Style,, SMC, KQ2ZT10-04AS

KQ2 Series Double Branch Universal Male Elbow, R 1/2 to Push In 10 mm, Threaded-to-Tube Connection Style,, SMC, KQ2ZT10-04AS

KQ2ZT10-04AS
The SMC one-touch fittings offers a lightweight and compact design, providing efficiency and convenience for various applications. Improved tube insertion and removal RoHS compliant
$290.51

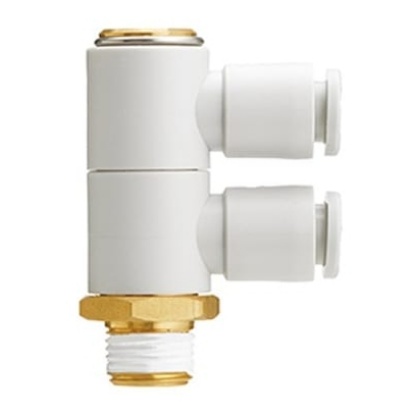

Picture of KQ2 Series Double Branch Universal Male Elbow, R 1/4 to Push In 6 mm, Threaded-to-Tube Connection Style, SMC, KQ2VD06-02NP

KQ2 Series Double Branch Universal Male Elbow, R 1/4 to Push In 6 mm, Threaded-to-Tube Connection Style, SMC, KQ2VD06-02NP

KQ2VD06-02NP
The SMC double universal male elbow push to connect fitting is compact and light in weight. Suitable for use with nylon and urethane Can be used for a wide range of pressures
$280.52
Picture of KQ2 Series Double Branch Universal Male Elbow, R 3/8 to Push In 12 mm, Threaded-to-Tube Connection Style, SMC, KQ2VD12-03AS

KQ2 Series Double Branch Universal Male Elbow, R 3/8 to Push In 12 mm, Threaded-to-Tube Connection Style, SMC, KQ2VD12-03AS

KQ2VD12-03AS
The SMC double universal male elbow push to connect fitting is compact and light in weight. Suitable for use with nylon and urethane Can be used for a wide range of pressures
$160.97
Picture of KQ2 Series Double Branch Universal Male Elbow, R 3/8 to Push In 6 mm, Threaded-to-Tube Connection Style,, SMC, KQ2ZD06-03AS

KQ2 Series Double Branch Universal Male Elbow, R 3/8 to Push In 6 mm, Threaded-to-Tube Connection Style,, SMC, KQ2ZD06-03AS

KQ2ZD06-03AS
The SMC one-touch fittings offers a lightweight and compact design, providing efficiency and convenience for various applications. Improved tube insertion and removal RoHS compliant
$326.83

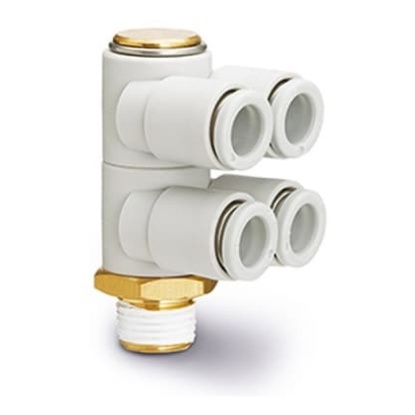

Picture of KQ2 Series Double Branch Universal Male Elbow, R 3/8 to Push In 8 mm, Threaded-to-Tube Connection Style, SMC, KQ2ZD08-03AS

KQ2 Series Double Branch Universal Male Elbow, R 3/8 to Push In 8 mm, Threaded-to-Tube Connection Style, SMC, KQ2ZD08-03AS

KQ2ZD08-03AS
The SMC universal double branch male elbow push to connect fitting is compact and light in weight. Suitable for use with nylon and urethane Can be used for a wide range of pressures
$346.08

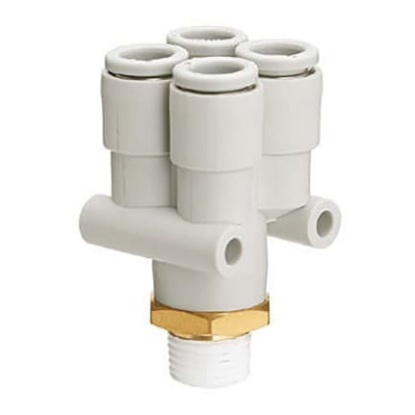

Picture of KQ2 Series Double Y Threaded-to Tube Adaptor, Push In 6 mm to Push In 6 mm, Threaded-to-Tube Connection Style, SMC, KQ2UD06-02AS

KQ2 Series Double Y Threaded-to Tube Adaptor, Push In 6 mm to Push In 6 mm, Threaded-to-Tube Connection Style, SMC, KQ2UD06-02AS

KQ2UD06-02AS
Delta branch. Applicable Tubing O.D.: ø4, ø6. Applicable Port Size: 1/8,
$224.29

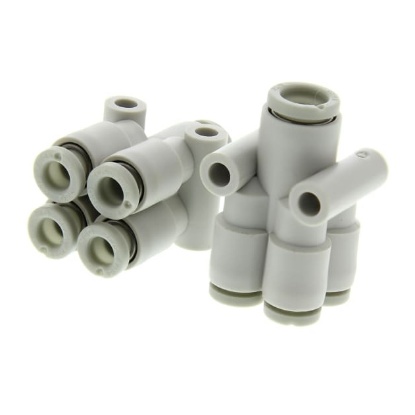

Picture of KQ2 Series Double Y Tube-to-Tube Adaptor Push In 6 mm, Push In 4 mm to Push In 4 mm, Tube-to-Tube Connection Style, SMC, KQ2UD04-06A

KQ2 Series Double Y Tube-to-Tube Adaptor Push In 6 mm, Push In 4 mm to Push In 4 mm, Tube-to-Tube Connection Style, SMC, KQ2UD04-06A

KQ2UD04-06A
Unequal Double Y Tube-to-Tube Fittings & Plugs Sealant coated threads minimise assembly time. The fittings can be used on vacuum or positive pressure lines. Suitable for use with nylon, soft nylon or polyurethane tube for compressed air or water (general industry) conveyance. Maximum operating pressure 10 bar Maximum vacuum operating pressure -100kPa Proof pressure 3MPa Ambient and fluid temperature -5 to +60°C (water 0 - 40°C)
$105.50

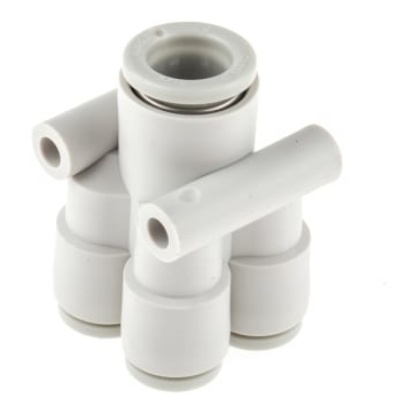

Picture of KQ2 Series Double Y Tube-to-Tube Adaptor Push In 8 mm, Push In 6 mm to Push In 6 mm, Tube-to-Tube Connection Style, SMC, KQ2UD06-08A

KQ2 Series Double Y Tube-to-Tube Adaptor Push In 8 mm, Push In 6 mm to Push In 6 mm, Tube-to-Tube Connection Style, SMC, KQ2UD06-08A

KQ2UD06-08A
Different diameter Double Union Y, KQ2UD The KQ2UD double union Y fittings from SMC are quick and easy to install into your fittings. These KQ2UD double unions are also more compact in design which means that these double unions can be used within a confined space. Double union Y's are designed to four branch tubing. The new KQ2 range of products are lighter than previous models and have the advantage of improved insertion and removal forces. One-touch fitting, white color Different diameter double union "Y" Accepts nylon and urethane tubes Applicable for both vacuum and positive pressure applications Release collar allows easy removal of tubing without damaging the tube Maximum vacuum pressure of 1.0 MPa Use to four-branch line in the same direction with size down Cooper free Tube-to-Tube Fittings & Plugs Sealant coated threads minimise assembly time. The fittings can be used on vacuum or positive pressure lines. Suitable for use with nylon, soft nylon or polyurethane tube for compressed air or water (general industry) conveyance. Maximum operating pressure 10 bar Maximum vacuum operating pressure -100kPa Proof pressure 3MPa Ambient and fluid temperature -5 to +60°C (water 0 - 40°C)
$142.95

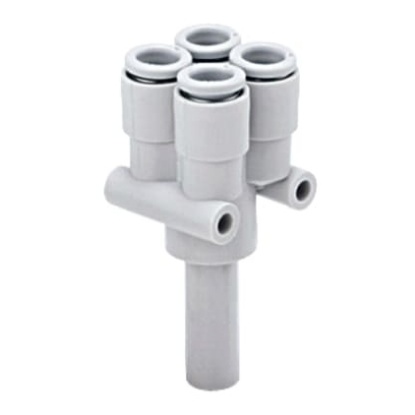

Picture of KQ2 Series Double Y Tube-to-Tube Adaptor Push In 8 mm, Push In 6 mm to Push In 6 mm, Tube-to-Tube Connection Style, SMC, KQ2XD06-08A

KQ2 Series Double Y Tube-to-Tube Adaptor Push In 8 mm, Push In 6 mm to Push In 6 mm, Tube-to-Tube Connection Style, SMC, KQ2XD06-08A

KQ2XD06-08A
Plug-in Double Y KQ2XD The KQ2XD plug-in double Y fittings from SMC are quick and easy to install into your pneumatic fittings. These KQ2XD plug-in double Y's are also more compact in design which means that they can be used within a confined space. Plug-in double Y's are designed to four-branch one touch fittings. The new KQ2 range of products are lighter than previous models and have the advantage of improved insertion and removal forces. Can be used under a wide range of pressures from a low vacuum to 1MPa Low force required for fitting and removal Compact dimensions for use within smaller spaces Tube-to-Tube Fittings & Plugs Sealant coated threads minimise assembly time. The fittings can be used on vacuum or positive pressure lines. Suitable for use with nylon, soft nylon or polyurethane tube for compressed air or water (general industry) conveyance. Maximum operating pressure 10 bar Maximum vacuum operating pressure -100kPa Proof pressure 3MPa Ambient and fluid temperature -5 to +60°C (water 0 - 40°C)
$119.82
