Pneumatic Fittings

The SMC Clean tubing series TP consists of a polyolefin tubing and a soft polyolefin tubing. Both are available in six different colors and available in 20m or 100m bundles. RoHS compliant Available in 20m or 100m bundles

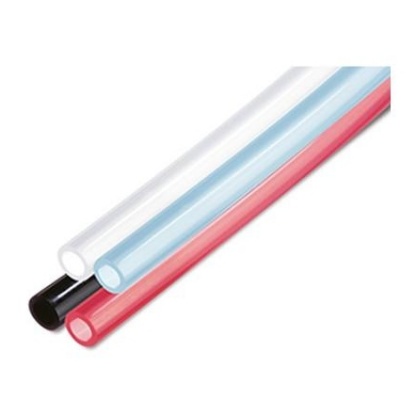

The SMC polyurethane tubing is a flexible and suitable for general pneumatic tubing. RoHS compliant It is durable

Branch Y-Adaptor, KQ2U, metric-size The KQ2U branch Y adaptor fittings from SMC are quick and easy to install into your pneumatic fittings. These KQ2U branch Y adaptors are also more compact in design which means that these elbows can be used within a confined space. Branch Y adaptors are designed to be used to branch a female thread. The new KQ2 range of products are lighter than previous models and have the advantage of improved insertion and removal forces. One-touch fitting, metric-size Branch "Y" Use to branch line in the same direction from female thread Accepts nylon and urethane tubes Applicable for both vacuum and positive pressure applications Release collar allows easy removal of tubing without damaging the tube Maximum vacuum pressure of 1.0 MPa Copper free Thread-to-Tube Adaptors

Series KQ - Branch Y Adaptor Straights, Elbows and T - Fittings Unithread fittings suitable for use with vacuum and positive pressures. Unique thread concept allows compatibility with parallel and taper female thread types (Rc, Rp, G, NPT, NPTF, BSP, BSTP). The universal thread form cuts down screwing-in time by more than 60% and creates excellent accessibility in confined space. Uniform height improves appearance and resistance to air flow minimised. No thread sealant required Wide range of applicable tube systems in nylon, soft nylon and polyurethane Maximum operating pressure 10 bar Operating vacuum pressure 10 Torr (absolute), (-50mm Hg gauge) Proof pressure 30 bar Ambient fluid temperature 0 to +60°C

KW Series Branch Y Fitting KW Series Flange to Tube Fitting
