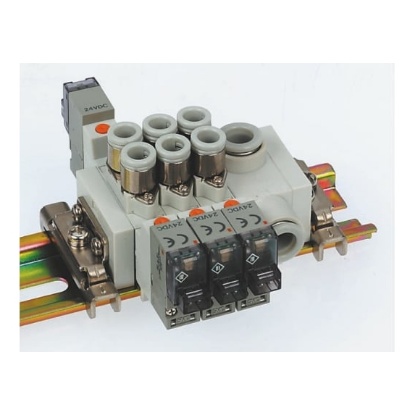

SY Z Series Cassette Valves Compact, lightweight body ported design Easily configured and expandable valve system Valves supplied complete with sealing discs High flow, fast response Standard, DIN rail mounting 24Vdc solenoid voltage Low power consumption Note 'L' type connector must be ordered separately SMC SY Z Series A range of modular DIN rail mounted solenoid operated valves and accessories for pneumatic circuits. All valves operate using compressed filtered air (lubricated or non-lubricated) and have an operating temperature range of -10 to +50°C.

1//8 SY Z Series Valves The SY series are 5 port solenoid valves, they are an interface between electronic controllers and pneumatic systems. These solenoid valves are smaller and have a higher flow. The SY3000 series offers the user different sized valves which are mounted on the same manifold. The SY series of solenoid valves is more reliable offering the user enhanced performance. Another advantage of the SY series is the reduced power consumption offering the user lower operational costs. SY solenoid valves are extremely compact and offer high flow rates They operate with reduced power consumption Solenoid valves provide outstanding reliability delivering extended lifetime performance and reduce the downtime Energy saving benefits SMC SY & VZ Series These valves can be used singly or with a manifold system. Low power consumption enables direct operation by PLC. They have a Non locking manual override.

SY Z Series Cassette Valves Compact, lightweight body ported design Easily configured and expandable valve system Valves supplied complete with sealing discs High flow, fast response Standard, DIN rail mounting 24Vdc solenoid voltage Low power consumption Note 'L' type connector must be ordered separately SMC SY Z Series A range of modular DIN rail mounted solenoid operated valves and accessories for pneumatic circuits. All valves operate using compressed filtered air (lubricated or non-lubricated) and have an operating temperature range of -10 to +50°C.

1//8 SYA Series Valves SYA air operated valves are available in either base or body mounted varients and use the same manifolds as the SY series. The SYA pneumatic valves also have a long service life. Can be used with SY manifold 5 port function Extended service life SMC SY & VZ Series These valves can be used singly or with a manifold system. Low power consumption enables direct operation by PLC. They have a Non locking manual override.

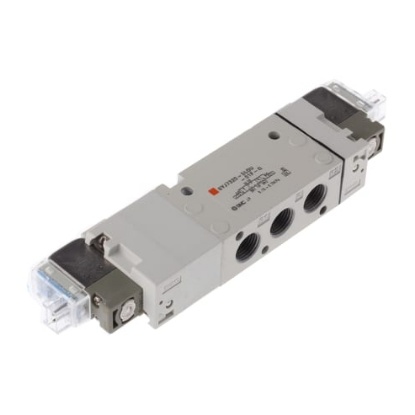

SMC Solenoid Valve The SMC SYJ7000 series 5/3 ports standalone solenoid valve has a supply voltage of 24VDC. This valve has a 1/8in G port connection and three-position closed centre actuation. It is manufactured to offer maximum performance in a space-efficient design, making it perfect for use as a single valve where space is at a premium. Thermal heat generation is reduced as the SYJ has a low power consumption of 0.4W as standard. This allows for direct control by PLC output relays, helping to decrease cost and improve performance. This valve is available with a lead wire of length 300mm without a connector. SMC SYJ & VF series Low power consumption enables direct operation by a PLC. They have a non-locking manual override. Operating temperature ranges between -10°C and 50°C. Features and Benefits Maximum flow rate is 525L/min Operating pressure ranges between 0.15MPa and 0.7MPa Operating temperature ranges between -10°C and 50°C Pilot valve individual exhaust for the pilot valve Surge voltage suppressor (Non-polar type) Certifications IP65 rated

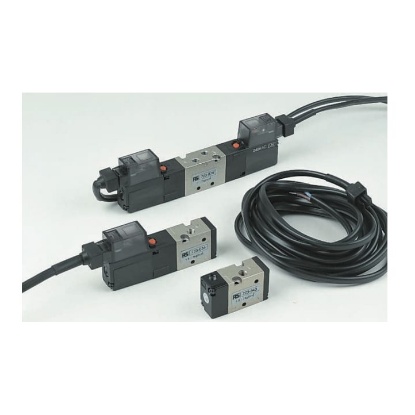

VZ series valves for in-line mounting Range of 5//2 and 5//3 valves with pneumatic or electrical control for in-line mounting. Connector to be ordered separately. Manual pulse control. SMC SY & VZ Series These valves can be used singly or with a manifold system. Low power consumption enables direct operation by PLC. They have a Non locking manual override.
