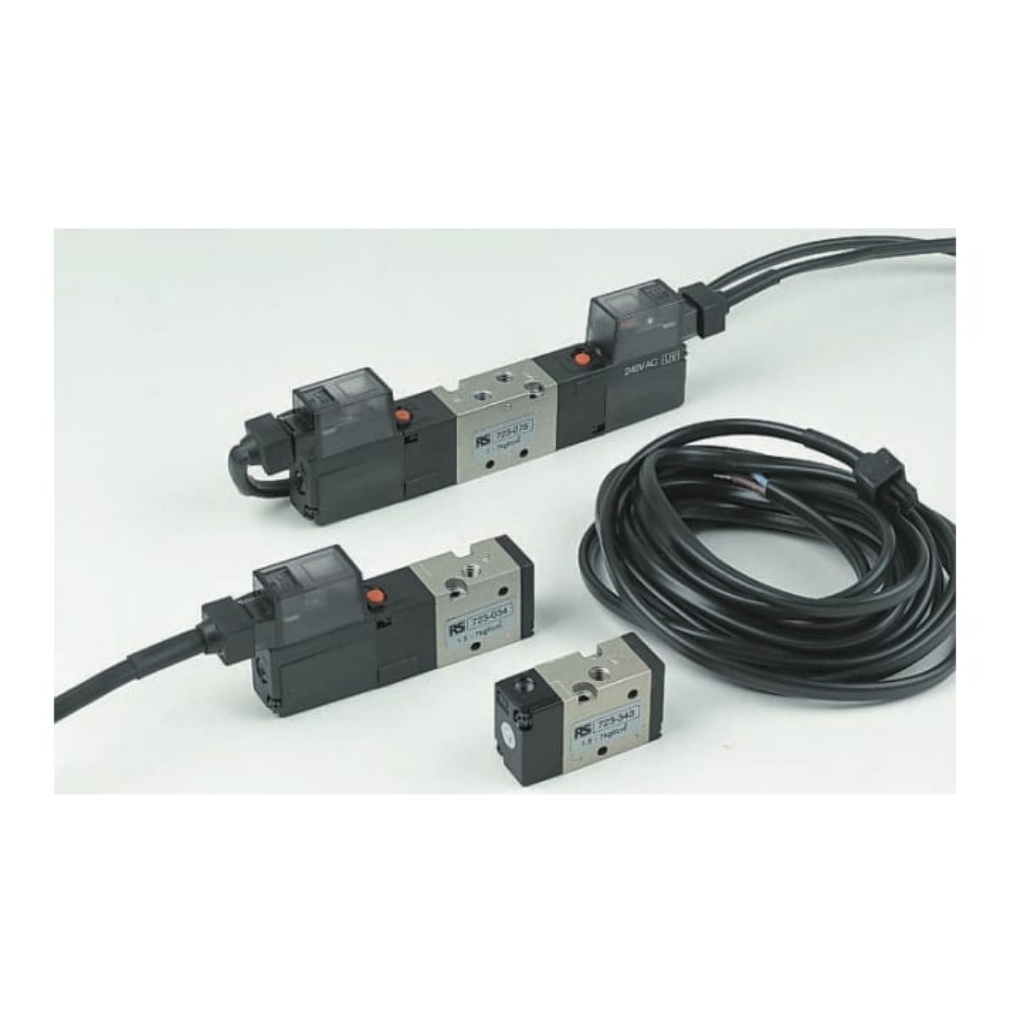

Picture of 5/3 Pneumatic Solenoid Valve - Pilot/Pilot G 1/8 VZ5000 Series 24V dc, SMC, EVZ5323-5MOZ-01F-Q

5/3 Pneumatic Solenoid Valve - Pilot/Pilot G 1/8 VZ5000 Series 24V dc, SMC, EVZ5323-5MOZ-01F-Q

VZ series valves for in-line mounting

Range of 5//2 and 5//3 valves with pneumatic or electrical control for in-line mounting.
Connector to be ordered separately.
Manual pulse control.

SMC SY & VZ Series

These valves can be used singly or with a manifold system. Low power consumption enables direct operation by PLC. They have a Non locking manual override.
Manufacturer: SMC
SKU: EVZ5323-5MOZ-01F-Q
$404.38
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Function5/3
Connection Port ThreadG 1/8
Actuation TypePilot/Pilot
Manufacturer SeriesVZ5000
Mounting StyleStand-Alone
Solenoid Voltage24V dc
Solenoid FittedYes
Number of Ports5/3
Body MaterialDie Cast Aluminium
Maximum Flow Rate461NL/min
Solenoid Power Consumption2.1W
Minimum Operating Pressure0.15MPa
Maximum Operating Pressure0.7 MPa
Maximum Operating Temperature+50°C
Thread Size1/8in
Minimum Operating Temperature-10°C
Thread StandardG
