SMC

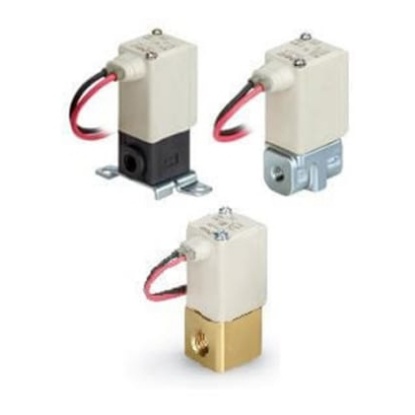

The SMC VDW size 1 is available with resin, brass or stainless steel body with orifice size up to 1/16 inch. The resin body is offered with one touch fitting to reduce installation time. It has maximum Cv is 0.07 and it is normally closed type. Power consumption 2.5w IP65 enclosure Seal NBR

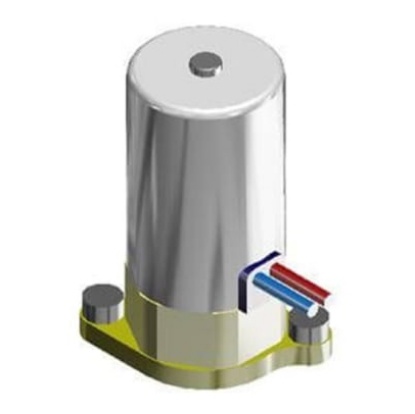

The SMC VDW size 2 for water/medium vacuum is available with resin, brass, or stainless steel body with orifice size up to 1/8 inch. The resin body is offered with one touch fitting to reduce installation time. Its has maximum Cv is 0.30 and it is normally closed type. Power consumption 3w IP65 enclosure Seal NBR

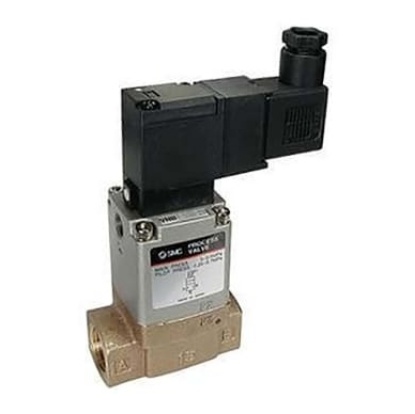

Process valve series VNB External pilot solenoid Orifice size: 7mm to 50mm Port size: 1/8 to 2 Rc(PT) Seal material: NBR, FKM, EPR

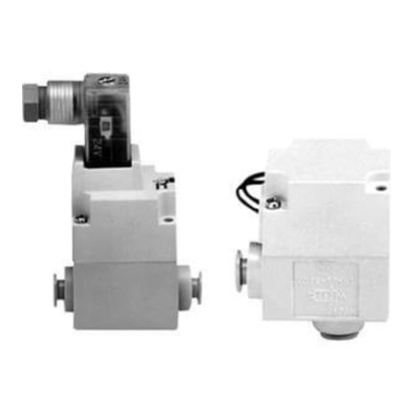

The SMC 2 port solenoid valve has 24 V coil voltage. This is compact and lightweight with a large flow capacity. The VQ20/30’s long life, high speed coil (up to 20 million cycles at 100cps for pneumatic use) along with its all plastic construction, make it an excellent choice for those who want high performance at a lower cost. Fluid Air/inert gas Operating pressure range 0.01 to 0.6MPa Effective area (Cv/effective orifice) 7.2mm 2 to 17.5mm 2 (0.4/ø3-1/ø4.8) For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

The SMC 2 port solenoid valve has 24 V coil voltage. This is compact and lightweight with a large flow capacity. The VQ20/30’s long life, high speed coil (up to 20 million cycles at 100cps for pneumatic use) along with its all plastic construction, make it an excellent choice for those who want high performance at a lower cost. Fluid Air/inert gas Operating pressure range 0.01 to 0.6MPa Effective area (Cv/effective orifice) 7.2mm 2 to 17.5mm 2 (0.4/ø3-1/ø4.8)

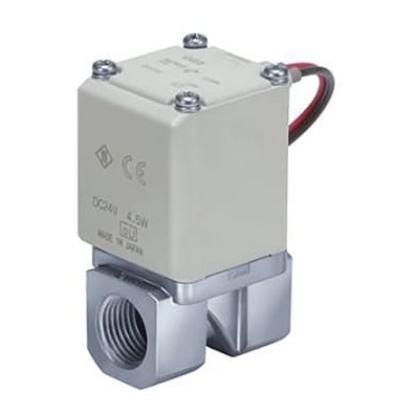

VX21-22-23 Two Port Direct Operating Solenoid Valve The SMC VX 2 Port Direct Operated Solenoid Valve is suitable for use with air, water, oil and medium vacuum environments. Air models are available with aluminium or resin bodies, while water/oil/medium vacuum models are available with brass or stainless steel bodies. Benefits over conventional SMC solenoid valve: Large flow rate (20% more for Size 1* model) More compact body (Size 1* is 10% smaller) Light weight (30% lighter: aluminium body, Size 1* model) Reduced power consumption when compared with SMC conventional model Built-in Full Wave Rectifier (for AC models) The SMC AC solenoid valve models offer an improved OFF RESPONSE, LOW NOISE construction, IMPROVED DURABILITY, REDUCED BUZZ noise and an overall REDUCTION in APPARENT POWER. The VX solenoid valve is suitable for use within environments from -10 to +60°C Note *Size 1 solenoid valve models are denoted by SMC part number commencing "VX214"; Size 2: "VX224"; Size 3: VX234
