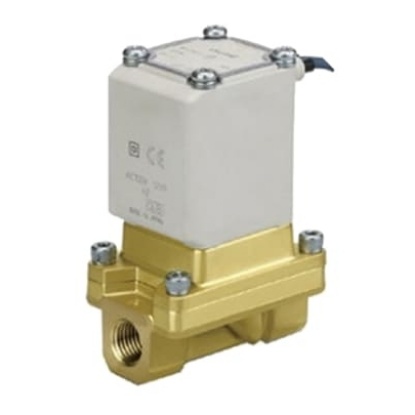

VXS2 Two Port Pilot Operated Solenoid Valve Zero pressure differential pilot solenoid valves from SMC requiring no fluid pressure for operation suitable for use with steam and heated water. Service life has been increased to 3 million cycles by using an improved scraper design that is contaminant resilient. Air leakage has also been reduced. This new series of solenoid valves are also greener consuming less energy and quieter in operation due to a rubber buffer design. Reduced power consumption Standardised 24 V dc DIN terminal Minimal internal air leakage Stainless Steel or Brass body Low noise operation Improved armature durability Double guide rings for improved foreign object resistance

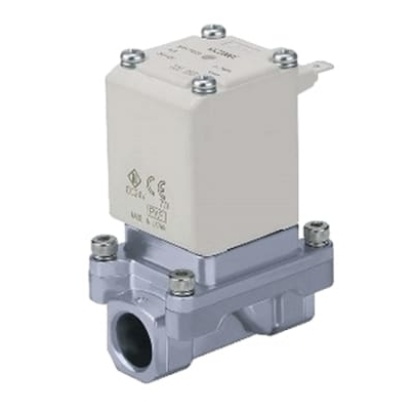

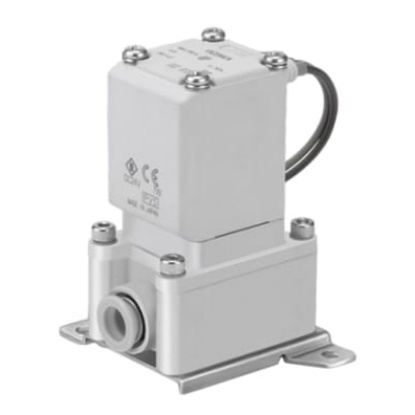

VXZ2-A Two Port Pilot Operated Solenoid Valve Pilot operated solenoid valve range from SMC’s VXZ series suitable for water, low pressure and vacuum applications. Redesigned by SMC to be 27% lighter and 4% smaller than the current model the VXZ is ideally suited lightweight and compact machinery where space is limited. The VXZ is suitable for use in a variety of applications including cooling systems, segmentation of pneumatic lines and exhaust valve in vacuum lines. Available in piping sizes from 1/4” to 1” and 10 and 12mm one touch fittings Improved off response time Low Noise, Reduce impact noise when operating More compact design, 4% smaller than existing version Brass or stainless steel body One touch fitting variants have a resin body Improved armature durability

VXZ2-A Two Port Pilot Operated Solenoid Valve Pilot operated solenoid valve range from SMC’s VXZ series suitable for water, low pressure and vacuum applications. Redesigned by SMC to be 27% lighter and 4% smaller than the current model the VXZ is ideally suited lightweight and compact machinery where space is limited. The VXZ is suitable for use in a variety of applications including cooling systems, segmentation of pneumatic lines and exhaust valve in vacuum lines. Available in piping sizes from 1/4” to 1” and 10 and 12mm one touch fittings Improved off response time Low Noise, Reduce impact noise when operating More compact design, 4% smaller than existing version Brass or stainless steel body One touch fitting variants have a resin body Improved armature durability

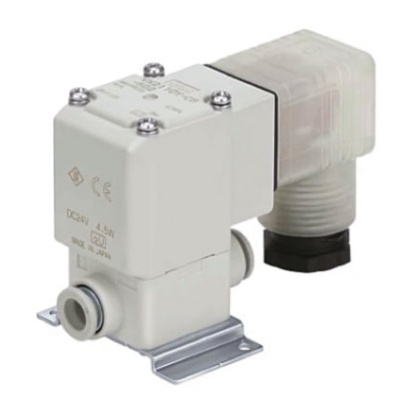

VX21-22-23 Two Port Direct Operating Solenoid Valve The SMC VX 2 Port Direct Operated Solenoid Valve is suitable for use with air, water, oil and medium vacuum environments. Air models are available with aluminium or resin bodies, while water/oil/medium vacuum models are available with brass or stainless steel bodies. Benefits over conventional SMC solenoid valve: Large flow rate (20% more for Size 1* model) More compact body (Size 1* is 10% smaller) Light weight (30% lighter: aluminium body, Size 1* model) Reduced power consumption when compared with SMC conventional model Built-in Full Wave Rectifier (for AC models) The SMC AC solenoid valve models offer an improved OFF RESPONSE, LOW NOISE construction, IMPROVED DURABILITY, REDUCED BUZZ noise and an overall REDUCTION in APPARENT POWER. The VX solenoid valve is suitable for use within environments from -10 to +60°C Note *Size 1 solenoid valve models are denoted by SMC part number commencing "VX214"; Size 2: "VX224"; Size 3: VX234

VX21-22-23 Two Port Direct Operating Solenoid Valve The SMC VX 2 Port Direct Operated Solenoid Valve is suitable for use with air, water, oil and medium vacuum environments. Air models are available with aluminium or resin bodies, while water/oil/medium vacuum models are available with brass or stainless steel bodies. Benefits over conventional SMC solenoid valve: Large flow rate (20% more for Size 1* model) More compact body (Size 1* is 10% smaller) Light weight (30% lighter: aluminium body, Size 1* model) Reduced power consumption when compared with SMC conventional model Built-in Full Wave Rectifier (for AC models) The SMC AC solenoid valve models offer an improved OFF RESPONSE, LOW NOISE construction, IMPROVED DURABILITY, REDUCED BUZZ noise and an overall REDUCTION in APPARENT POWER. The VX solenoid valve is suitable for use within environments from -10 to +60°C Note *Size 1 solenoid valve models are denoted by SMC part number commencing "VX214"; Size 2: "VX224"; Size 3: VX234
