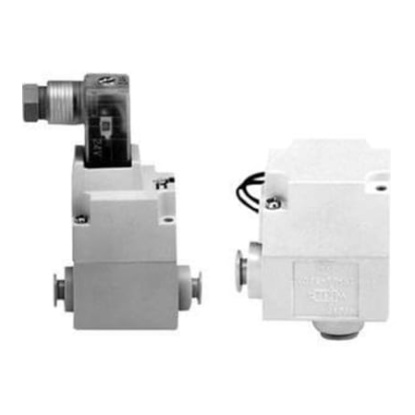

The SMC 2 port solenoid valve has 12V supply voltage. It has one touch fitting 6mm and Y (DIN terminal) lead wire. Fluid Air/inert gas Operating pressure range 0.01 to 0.6MPa Effective area (Cv/effective orifice) 7.2mm 2 to 17.5mm 2 (0.4/ø3-1/ø4.8) Response time 5ms or less (VQ20) 20ms or less (VQ30) Ambient/fluid temp -10 to 50°C

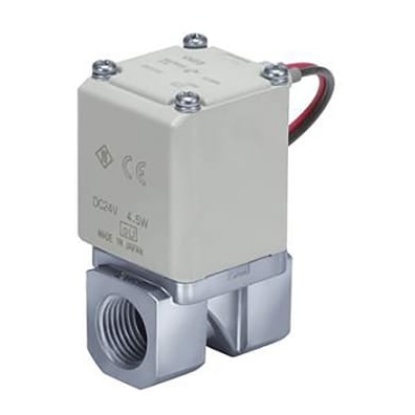

VX21-22-23 Two Port Direct Operating Solenoid Valve The SMC VX 2 Port Direct Operated Solenoid Valve is suitable for use with air, water, oil and medium vacuum environments. Air models are available with aluminium or resin bodies, while water/oil/medium vacuum models are available with brass or stainless steel bodies. Benefits over conventional SMC solenoid valve: Large flow rate (20% more for Size 1* model) More compact body (Size 1* is 10% smaller) Light weight (30% lighter: aluminium body, Size 1* model) Reduced power consumption when compared with SMC conventional model Built-in Full Wave Rectifier (for AC models) The SMC AC solenoid valve models offer an improved OFF RESPONSE, LOW NOISE construction, IMPROVED DURABILITY, REDUCED BUZZ noise and an overall REDUCTION in APPARENT POWER. The VX solenoid valve is suitable for use within environments from -10 to +60°C Note *Size 1 solenoid valve models are denoted by SMC part number commencing "VX214"; Size 2: "VX224"; Size 3: VX234

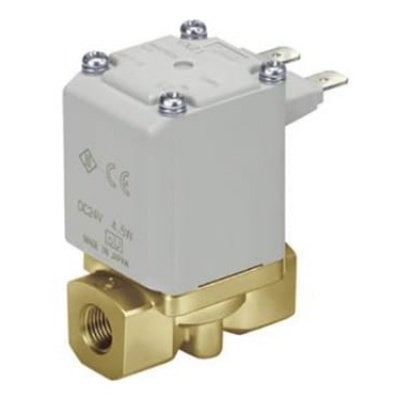

VXD Pilot Operated VAlves SMC has improved upon their VXD range of Pilot operated diaphragm 2-port solenoid valves. The redesign has made these process valves lighter and more compact while still delivering the outstanding performance of the previous generations. The VXD solenoid valve now uses less energy than its predecessor and is quieter in operation with an improved response time. Features and Benefits • Improved durability • Reduced buzzing during operation • Reduced power consumption • Improved off response time with high viscosity fluids • Reduced impact noise during operation • Improved armature durability • Suitable for use with water, oil, heated water, high temperature oil and air • Normally open and normally closed Applications Ideal for use with air, water, oil, heated water and high temperature oil applications. SMC VX Series

VXS2 Two Port Pilot Operated Solenoid Valve Zero pressure differential pilot solenoid valves from SMC requiring no fluid pressure for operation suitable for use with steam and heated water. Service life has been increased to 3 million cycles by using an improved scraper design that is contaminant resilient. Air leakage has also been reduced. This new series of solenoid valves are also greener consuming less energy and quieter in operation due to a rubber buffer design. Reduced power consumption Standardised 24 V dc DIN terminal Minimal internal air leakage Stainless Steel or Brass body Low noise operation Improved armature durability Double guide rings for improved foreign object resistance

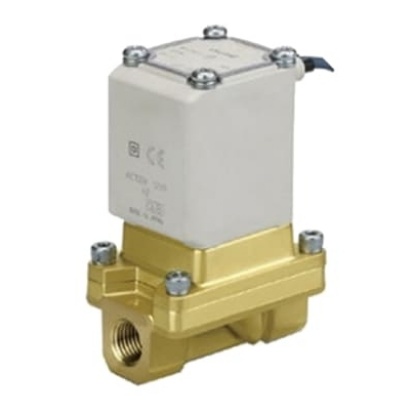

VXZ2-A Two Port Pilot Operated Solenoid Valve Pilot operated solenoid valve range from SMC’s VXZ series suitable for water, low pressure and vacuum applications. Redesigned by SMC to be 27% lighter and 4% smaller than the current model the VXZ is ideally suited lightweight and compact machinery where space is limited. The VXZ is suitable for use in a variety of applications including cooling systems, segmentation of pneumatic lines and exhaust valve in vacuum lines. Available in piping sizes from 1/4” to 1” and 10 and 12mm one touch fittings Improved off response time Low Noise, Reduce impact noise when operating More compact design, 4% smaller than existing version Brass or stainless steel body One touch fitting variants have a resin body Improved armature durability

VXZ2-A Two Port Pilot Operated Solenoid Valve Pilot operated solenoid valve range from SMC’s VXZ series suitable for water, low pressure and vacuum applications. Redesigned by SMC to be 27% lighter and 4% smaller than the current model the VXZ is ideally suited lightweight and compact machinery where space is limited. The VXZ is suitable for use in a variety of applications including cooling systems, segmentation of pneumatic lines and exhaust valve in vacuum lines. Available in piping sizes from 1/4” to 1” and 10 and 12mm one touch fittings Improved off response time Low Noise, Reduce impact noise when operating More compact design, 4% smaller than existing version Brass or stainless steel body One touch fitting variants have a resin body Improved armature durability
