VX21-22-23 Two Port Direct Operating Solenoid Valve The SMC VX 2 Port Direct Operated Solenoid Valve is suitable for use with air, water, oil and medium vacuum environments. Air models are available with aluminium or resin bodies, while water/oil/medium vacuum models are available with brass or stainless steel bodies. Benefits over conventional SMC solenoid valve: Large flow rate (20% more for Size 1* model) More compact body (Size 1* is 10% smaller) Light weight (30% lighter: aluminium body, Size 1* model) Reduced power consumption when compared with SMC conventional model Built-in Full Wave Rectifier (for AC models) The SMC AC solenoid valve models offer an improved OFF RESPONSE, LOW NOISE construction, IMPROVED DURABILITY, REDUCED BUZZ noise and an overall REDUCTION in APPARENT POWER. The VX solenoid valve is suitable for use within environments from -10 to +60°C Note *Size 1 solenoid valve models are denoted by SMC part number commencing "VX214"; Size 2: "VX224"; Size 3: VX234

VX21-22-23 Two Port Direct Operating Solenoid Valve The SMC VX 2 Port Direct Operated Solenoid Valve is suitable for use with air, water, oil and medium vacuum environments. Air models are available with aluminium or resin bodies, while water/oil/medium vacuum models are available with brass or stainless steel bodies. Benefits over conventional SMC solenoid valve: Large flow rate (20% more for Size 1* model) More compact body (Size 1* is 10% smaller) Light weight (30% lighter: aluminium body, Size 1* model) Reduced power consumption when compared with SMC conventional model Built-in Full Wave Rectifier (for AC models) The SMC AC solenoid valve models offer an improved OFF RESPONSE, LOW NOISE construction, IMPROVED DURABILITY, REDUCED BUZZ noise and an overall REDUCTION in APPARENT POWER. The VX solenoid valve is suitable for use within environments from -10 to +60°C Note *Size 1 solenoid valve models are denoted by SMC part number commencing "VX214"; Size 2: "VX224"; Size 3: VX234

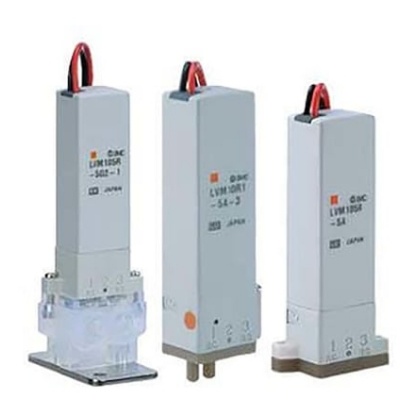

Orifice diameter of LVM10: 1.4mm Orifice diameter of LVM11: 1.5mm Available with power-saving circuit 2 port N.C. or N.O. types, 3 port Universal type Diaphragm choice of EPDM, FKM or FFKM® Wetted part material: PEEK or PFA (body/plate)

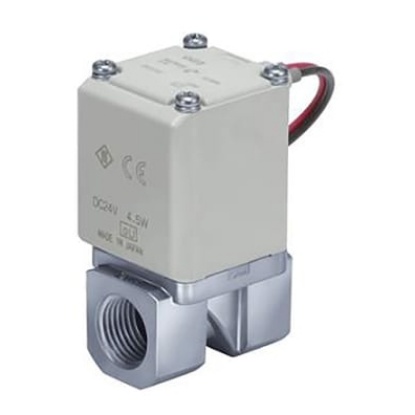

The SMC Compact direct operated 2 port solenoid valve has 24 V supply voltage. It has size 2 body. For air, medium vacuum, water IP65 enclosure Compactness Lightness Body materials aluminium, PPS resin, brass C37 and stainless steel Piping variations

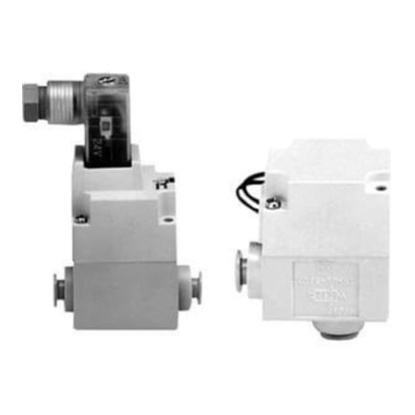

The SMC 2 port solenoid valve has 12V supply voltage. It has one touch fitting 6mm and Y (DIN terminal) lead wire. Fluid Air/inert gas Operating pressure range 0.01 to 0.6MPa Effective area (Cv/effective orifice) 7.2mm 2 to 17.5mm 2 (0.4/ø3-1/ø4.8) Response time 5ms or less (VQ20) 20ms or less (VQ30) Ambient/fluid temp -10 to 50°C For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

The SMC 2 port solenoid valve has 12V supply voltage. It has one touch fitting 8mm and Y (DIN terminal) lead wire. Fluid Air/inert gas Operating pressure range 0.01 to 0.6MPa Effective area (Cv/effective orifice) 7.2mm 2 to 17.5mm 2 (0.4/ø3-1/ø4.8) Response time 5ms or less (VQ20) 20ms or less (VQ30) Ambient/fluid temp -10 to 50°C
