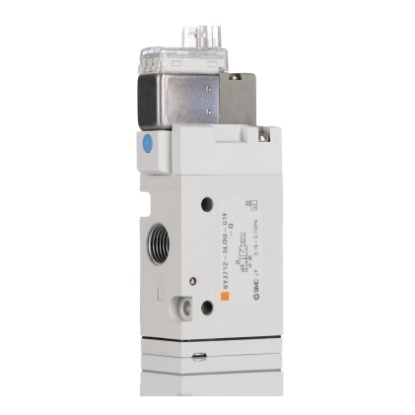

SMC Solenoid Valve The SMC SYJ7000 series 3/2 ports body ported solenoid valve has a supply voltage of 24VDC. This valve has a 1/8in G port connection. It is manufactured to offer maximum performance in a space-efficient design, making it perfect for use as a single valve where space is at a premium. Thermal heat generation is reduced as the SYJ has a low power consumption of 0.4W as standard. This allows for direct control by PLC output relays, helping to decrease cost and improve performance. This valve is available with a lead wire of length 300mm without a connector. SMC SYJ & VF series Low power consumption enables direct operation by a PLC. They have a non-locking manual override. Operating temperature ranges between -10°C and 50°C. Features and Benefits Maximum flow rate is 626L/min Operating pressure ranges between 0.15MPa and 0.7MPa Operating temperature ranges between -10°C and 50°C Surge voltage suppressor (Non-polar type) Certifications IP65 rated

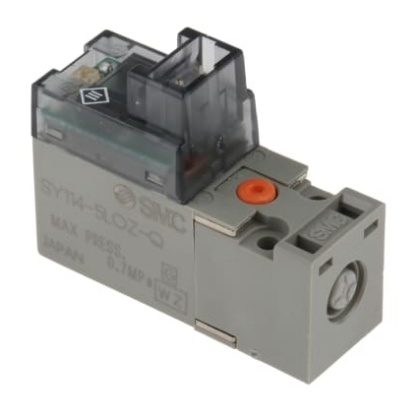

SMC Solenoid Valve The SMC SY100 series 3/2 port direct-operated solenoid valve has operating pressure ranging between 0MPa and 0.7MPa. Its solenoid voltage is 24VDC with a low power consumption of 0.5W. This valve has a maximum flow rate of 7.85NL/min with operating temperatures up to 500C. Features and Benefits Adaptor lead available to connect SY100 valve to existing VJ100 plug Indicator light and surge voltage suppressor Mounts on same sub-bases as VJ100 range Non-locking manual override Normally closed valve configuration Suitable for pressure or vacuum applications

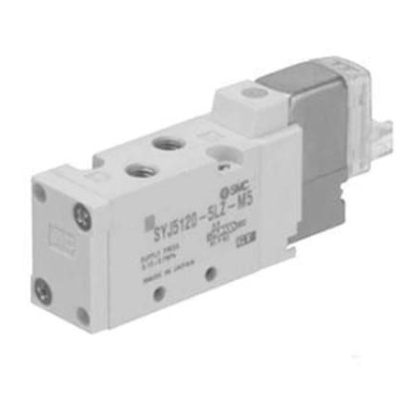

M5 SYJ500/5000 Valves The SYJ series of valves have low power consumption and therefore decreased engineering costs. Their space saving design means that the SYJ valves can be individually mounted onto sub plates or configured onto base mounted manifolds. These SYJ500 & 5000 valves have a pilot exhaust and have a copper free design. Copper free design Low power consumption Space efficient SMC SYJ & VF Series Low power consumption enables direct operation by PLC. They have a non locking manual override. Operating temperature: -10 to +50°C.

3/2 Solenoid valves The V100 Series is a 3 port solenoid valve designed for applications requiring a compact, light-weight, high flow valve for piloting process valves or actuators. They have very low power consumption with the standard version only using 0.35 watts and the low power version only requiring 0.1 watts helping to reduce costs. Weight is kept to a minimum and is a mere 12g yet flow rates still range between 8.4 and 24 l/minute. Ultra-compact 3 port direct acting valves Can be manifold mounted N/O or N/C options Power saving version SMC V100 Series

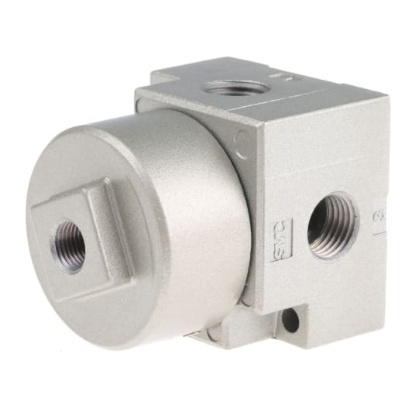

3 Port Direct Operated Poppet Solenoid + Pilot Valves, VT317 Series A selection of direct operated 3 port poppet type solenoid operated spring return valves. Selective porting can be provided from these valves for up to 6 different valve functions. 1/ 4 in ports, tapered threads Standard DIN 43650 Electrical Connection Push button manual override Surge voltage protection Coils may be orientated at 90° increments Suitable for vacuum applications (9120857)

SMC Solenoid Valve The SMC VT317 series 3/2 ports direct operated poppet solenoid valve has a supply voltage of 24VDC. This solenoid-operated spring return valve has a 1/4in G port connection. This valve is suitable for use in vacuum applications. This valve has standard DIN 43650 electrical connection with a connector. Note: Includes electrical connectors Features and Benefits Coils may be orientated at 90° increments Maximum flow rate is 687.05NL/min Operating pressure ranges between 0MPa and 0.9MPa Operating temperature range between 0°C and 50°C Push button manual override Certifications IP65 rated
