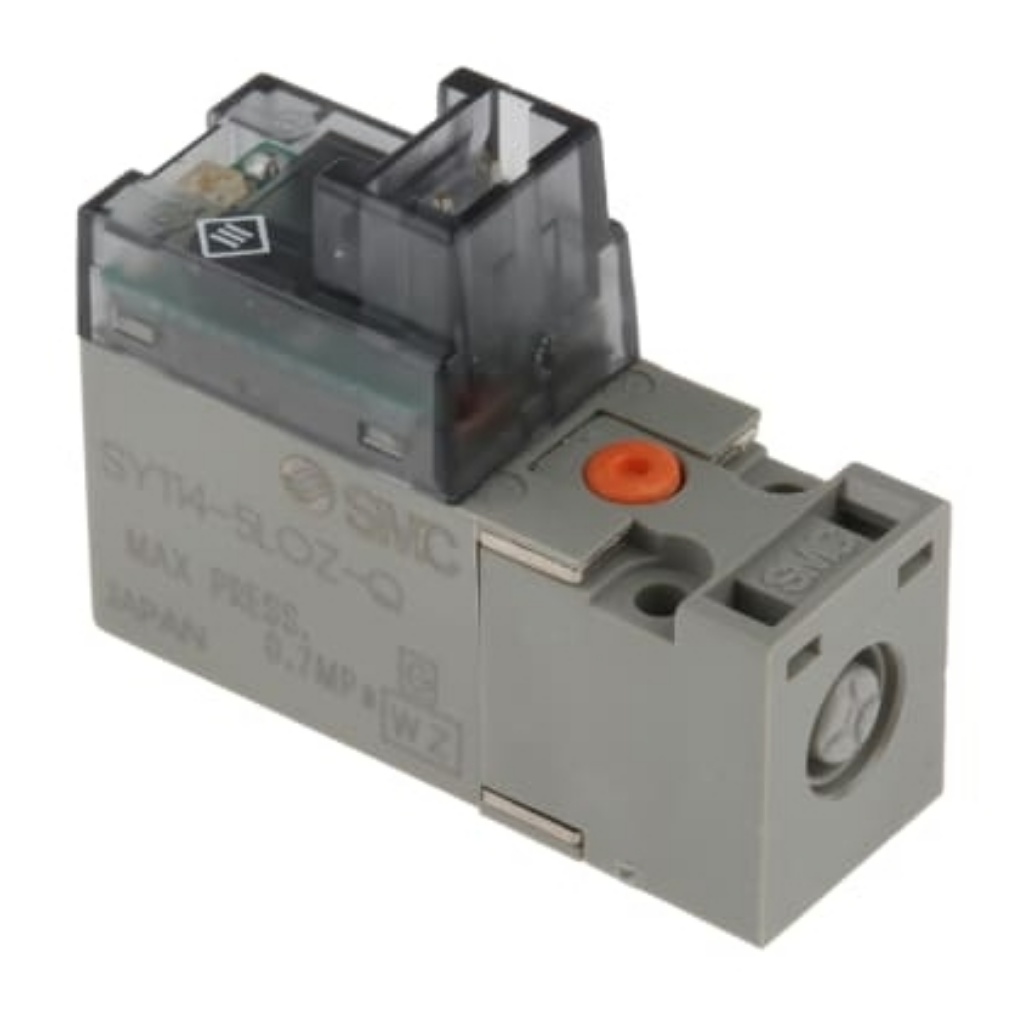

Picture of 3/2 Pneumatic Solenoid Valve - Solenoid/Spring SY100 Series 24V dc, SMC, SY114-5LOZ-Q
Picture of 3/2 Pneumatic Solenoid Valve - Solenoid/Spring SY100 Series 24V dc, SMC, SY114-5LOZ-Q
Picture of 3/2 Pneumatic Solenoid Valve - Solenoid/Spring SY100 Series 24V dc, SMC, SY114-5LOZ-Q
Picture of 3/2 Pneumatic Solenoid Valve - Solenoid/Spring SY100 Series 24V dc, SMC, SY114-5LOZ-Q

3/2 Pneumatic Solenoid Valve - Solenoid/Spring SY100 Series 24V dc, SMC, SY114-5LOZ-Q

SMC Solenoid Valve

The SMC SY100 series 3/2 port direct-operated solenoid valve has operating pressure ranging between 0MPa and 0.7MPa. Its solenoid voltage is 24VDC with a low power consumption of 0.5W. This valve has a maximum flow rate of 7.85NL/min with operating temperatures up to 500C.

Features and Benefits

Adaptor lead available to connect SY100 valve to existing VJ100 plug
Indicator light and surge voltage suppressor
Mounts on same sub-bases as VJ100 range
Non-locking manual override
Normally closed valve configuration
Suitable for pressure or vacuum applications
Manufacturer: SMC
SKU: SY114-5LOZ-Q
$89.66
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Function3/2
Actuation TypeSolenoid/Spring
Manufacturer SeriesSY100
Mounting StyleManifold
Solenoid Voltage24V dc
Solenoid FittedYes
Number of Ports3/2
Body MaterialResin
Maximum Flow Rate7.85NL/min
Solenoid Power Consumption0.55W
Minimum Operating Pressure0MPa
Maximum Operating Pressure0.7 MPa
Maximum Operating Temperature+50°C
