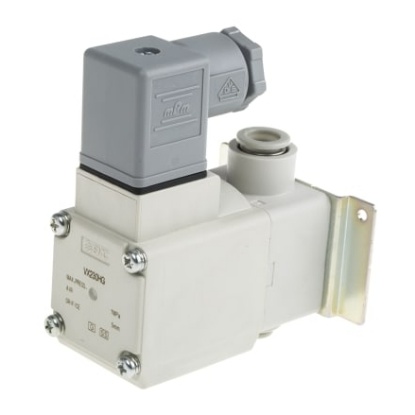

2/2 Pneumatic Solenoid Valve - Solenoid/Spring Push in 10 mm VX23 Series 24V dc, SMC, VX230HG

VX230HG

VX21/22/23 Process Valves SMC VX2 solenoid valves air suitable for use with air, medium vacuum, water or oil in either brass, stainless steel or resin bodies. The VX2 valves have a 20% greater flow rate than conventional 2-port solenoid valves and are fitted with a rubber bumper to reduce metal noise during operation. Resin Body versions are use SMC one-touch fittings to aid fast installation. Features and Benefits • 20% more flow then conventional SMC 2 port solenoid valves • 30% Lighter than previous version • 10% Smaller • Dust tight, water-jet proof casing • Direct operated poppet type • Quieter operation SMC VX Series

$99.63

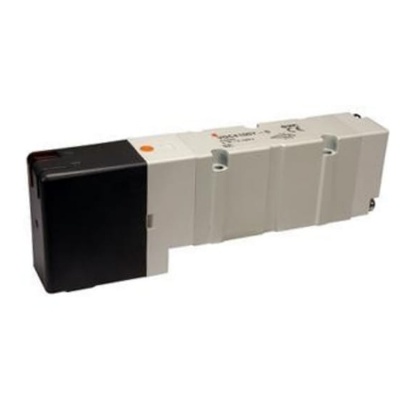

2/2 Pneumatic Solenoid/Pilot-Operated Control Valve - Solenoid/Solenoid M5 x 0.8 VQC Series 24V dc, SMC, VQC4200-51

VQC4200-51

The VQC series has five standard wiring packages bringing a world of ease to wiring and maintenance work, while the protective enclosures of three of them conform to IP67 standards for protection from dust and moisture. The use of multi-pin connectors to replace wiring inside manifold blocks provides flexibility when adding stations or changing manifold configuration. The VQC series has outstanding response times and long life 5 port solenoid valve, base mount, plug-in Fluid: air/inert gas Operating pressure: 1.0MPa [0.7MPa (low wattage)] Effective area (Cv): 1.7 metal seal, 2.0 rubber seal Coil rated voltage: 24VDC Enclosure: dust proof (conforms to IP67)

$266.59

2/2 Pneumatic Solenoid/Pilot-Operated Control Valve - Solenoid/Solenoid M5 x 0.8 VQC Series 24V dc, SMC, VQC4201-51

VQC4201-51

The VQC series has five standard wiring packages bringing a world of ease to wiring and maintenance work, while the protective enclosures of three of them conform to IP67 standards for protection from dust and moisture. The use of multi-pin connectors to replace wiring inside manifold blocks provides flexibility when adding stations or changing manifold configuration. The VQC series has outstanding response times and long life 5 port solenoid valve, base mount, plug-in Fluid: air/inert gas Operating pressure: 1.0MPa [0.7MPa (low wattage)] Effective area (Cv): 1.7 metal seal, 2.0 rubber seal Coil rated voltage: 24VDC Enclosure: dust proof (conforms to IP67)

$246.79

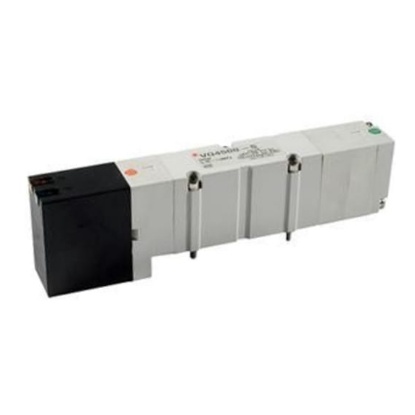

2/2 Pneumatic Solenoid/Pilot-Operated Control Valve - Solenoid/Solenoid VQ Series 24V dc, SMC, VQ4201-5W1-Q

VQ4201-5W1-Q

VQ valves are ideal for applications requiring high speed, frequent operation, stable response time and long service life. Innovative mounting methods allow valves to be changed without entirely disassembling the manifold. Built-in one-touch fittings save piping time and labor Fluid: air/inert gas Ambient & Fluid Temperature:Metal Seal -10 to 50°C,Rubber Seal -5 to 50°C Optional IP65 Enclosure Operating Pressure Range: 0.15 – 1.0MPa

$375.11

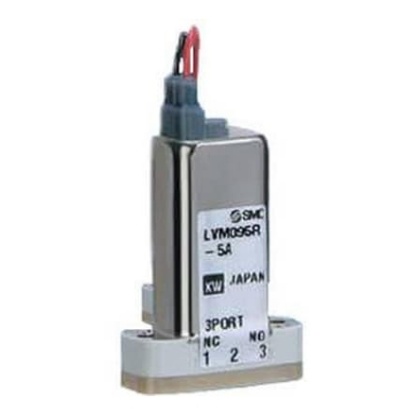

2/3 Port Solenoid Valve Solenoid Valve - LVM07 Series 12V dc, SMC, LVM095R-5A-6-Q

LVM095R-5A-6-Q

The SMC compact direct acting, 2/3 port solenoid valve for chemicals. The unique construction reduces residual liquid to a minimum. Superior resistance to chemicals requires less maintenance. Orifice diameter 1.1mm Available with power-saving circuit

$125.66

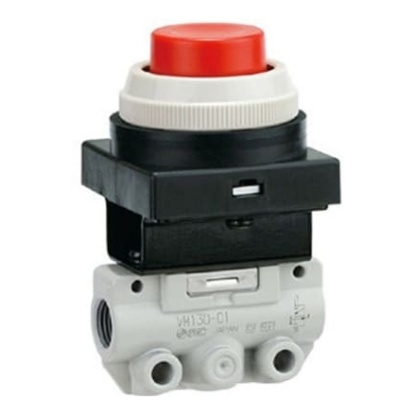

2/3 port valve Pneumatic Solenoid Valve - Solenoid R 1/8 VM Series, SMC, VM130-F01-00A

VM130-F01-00A

The SMC VM Mechanical Valve referred to as directional control valve regulate compressed air flow to connected components in pneumatic systems. It has a variety of actuator types with piping options of side ported and bottom ported to choose from. Compact size Lightweight valve

$45.88
