SMC Flat and Bellow Suction Cups These suction cups offer you options to meet all your handling and transfer needs. They come in a variety of shapes and sizes suitable for a variety of lifting applications. All stems are non-rotating and come with rubber flat pad - different pad sizes and styles available 3 Stem types: -Standard Stem -Stem with buffer spring to allow objects of differing height to be picked up -Stem with female thread, top entry, suitable for use with hollow-rod cylinders All stems with 80mm diameter pads have push-in fittings included (excluding female thread top entry types) 2 Pad materials: - NBR Rubber - Silicone (for non-marking applications) 3 Pad styles: - Flat - Deep (for curved objects) - Bellows (absorbs misalignment What are the benefits of flat bellow Suction cups? Suction cups/vacuum pads are the components used to lift and hold a workpiece in a pick and place application., the cups grip the workpiece fast and precisely These suction cups are ideal for flat and uneven surfaces. Note Lifting Capacity quoted theoretically at 0.65 bar

The SMC vacuum pads provide a diverse range of options for handling and transfer, allowing designers to select the most suitable pad configuration based on size, shape and material. Heavy duty vacuum pad Replacement part

The SMC VHS is a pressure relief 3 port valve with locking holes. It can prevent accident caused by inadvertent air supply problems. Light weight Energy saving

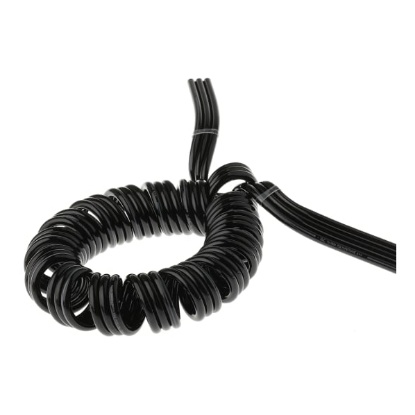

Coiled Polyurethane Tube Single or multi-core option For flexible piping applications Multitube-Coil & Connector - Legris Compact and flexible cabling - specially designed assembly ensures small bend radii PVC sheath with proven resistance to abrasion, fire, caustic fluids, oils, alcohols, etc Numbered and colour coded tubes for fast circuit identification Full bore design, ideal for bulkhead use

Coiled Polyurethane Tube Single or multi-core option For flexible piping applications Multitube-Coil & Connector - Legris Compact and flexible cabling - specially designed assembly ensures small bend radii PVC sheath with proven resistance to abrasion, fire, caustic fluids, oils, alcohols, etc Numbered and colour coded tubes for fast circuit identification Full bore design, ideal for bulkhead use

Grippers Double acting Operating pressure 1 – 6 bar Temperature range 0°C to 60°C Opening angle 30°(open), 10°(closed) Holding moment at 5 bar is 0.1Nm (10mm bore), 0.4Nm (16mm), 0.7Nm (20mm), 1.4Nm (25mm) Repeatability of closing position ±0.01mm Maximum operating frequency 180cpm Lubrication not required
