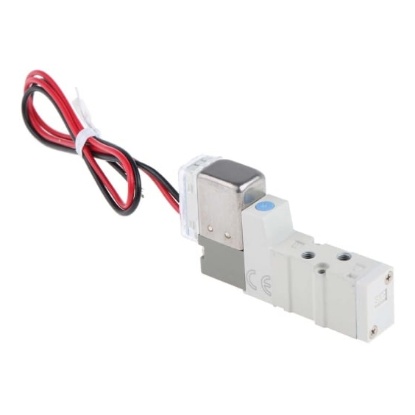

SMC Solenoid Valve The SMC SY series 5/2 ports body ported solenoid valve has a supply voltage of 24VDC. It is manufactured to offer maximum performance in a space-efficient design, making it perfect for use as a single valve where space is at a premium. Thermal heat generation is reduced as the SYJ has a low power consumption of 0.5W as standard. This allows for direct control by PLC output relays, helping to decrease cost and improve performance. SMC SYJ & VF series Low power consumption enables direct operation by a PLC. They have a non-locking manual override. Operating temperature ranges between -10°C and 50°C. Features and Benefits Maximum flow rate is 49.08NL/min Operating pressure ranges between 0.15MPa and 0.7MPa Operating temperature ranges between -10°C and 50°C Pilot valve individual exhaust for the pilot valve Supplied with a lead wire of length 300mm Without light/surge voltage suppressor Certifications IP65 rated

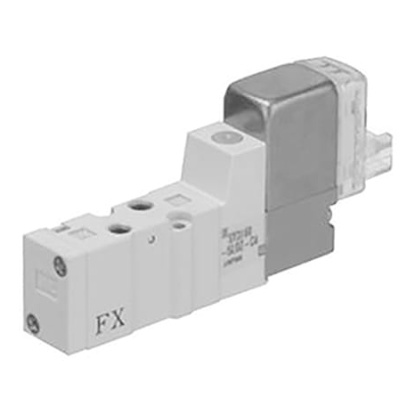

SYJ300/3000 Series Valves The SYJ series has been manufactured to offer maximum performance in a space efficient design making it perfect for use either as a single valve or in a manifold where space is at a premium. Thermal heat generation is reduced as the SYJ has a low power consumption of 0.5 watts as standard. This allows for direct control by PLC output relays helping to decrease cost and improve performance. Fluid: air Operating pressure range: 0.15 - 0.7MPa 5 port base mounted w/sub-plate 1.8 (0.1) Coil rated voltage: 3, 5, 6, 12, 24 Vdc; 100, 110, 200, 220 Vac Ambient and fluid temp: maximum 50 °C SMC SYJ & VF Series Low power consumption enables direct operation by PLC. They have a non locking manual override. Operating temperature: -10 to +50°C.

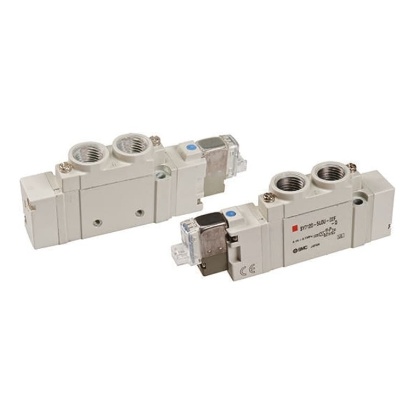

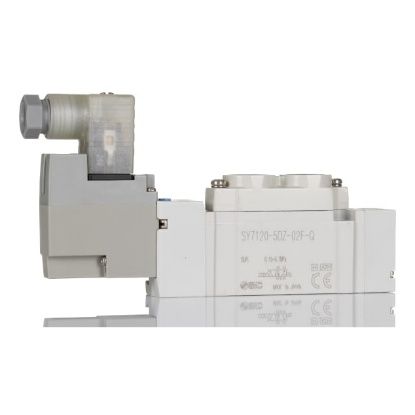

SMC Solenoid Valve The SMC SY7000 series 5/2 ports solenoid valve has a supply voltage of 24VDC. This valve has a 1/4in G port connection and 2-position single type actuation. It has low power consumption and therefore decreased engineering costs. This valve has a display LED with a stand-alone mount. The valve cover also uses die-cast aluminium, which makes it stronger. This valve is available with a DIN connector. SMC SY and VZ Series These valves can be used singly or with a manifold system. Low power consumption enables direct operation by PLC. They have a non-locking manual override. Features and Benefits Solenoid power consumption is 0.45W Maximum flow rate is 883.4NL/min Operating pressure ranges between 0.15MPa and 0.7MPa Operating temperature ranges between -10°C and 50°C Solenoid valves are extremely compact and offer high flow rates Supplied with surge voltage suppressors Certifications IP65 rated CE certified

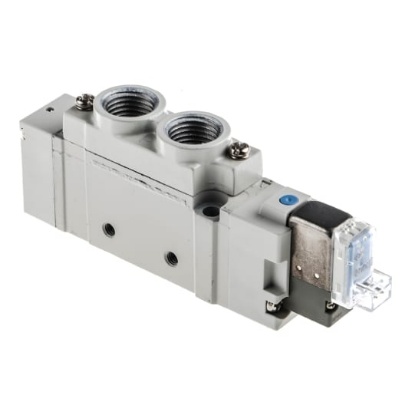

SMC Solenoid Valve The SMC SY7000 series 5/2 ports solenoid valve has a supply voltage of 24VDC. This valve has a 1/4in G port connection and 2-position single type actuation. It has low power consumption and therefore decreased engineering costs. This valve has a display LED with a stand-alone mount. The valve cover also uses die-cast aluminium, which makes it stronger. This valve is available with a 300mm lead wire without a connector. SMC SY and VZ Series These valves can be used singly or with a manifold system. Low power consumption enables direct operation by PLC. They have a non-locking manual override. Features and Benefits Solenoid power consumption is 0.45W Maximum flow rate is 883.4NL/min Operating pressure ranges between 0.15MPa and 0.7MPa Operating temperature ranges between -10°C and 50°C Solenoid valves are extremely compact and offer high flow rates Supplied with surge voltage suppressors (non-polar type) Certifications IP65 rated CE certified

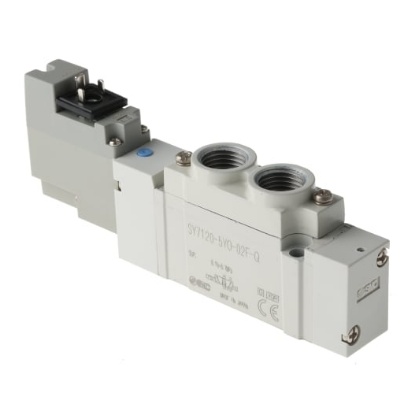

SMC Solenoid Valve The SMC SY7000 series 5/2 ports solenoid valve has a supply voltage of 24VDC. This valve has a 1/4in G port connection and 2-position single type actuation. It has low power consumption and therefore decreased engineering costs. This valve has a display LED with a stand-alone mount. The valve cover also uses die-cast aluminium, which makes it stronger. This valve is available with DIN terminal type “Y” without connector. SMC SY and VZ Series These valves can be used singly or with a manifold system. Low power consumption enables direct operation by PLC. They have a non-locking manual override. Features and Benefits Solenoid power consumption is 0.45W Maximum flow rate is 883.4NL/min Operating pressure ranges between 0.15MPa and 0.7MPa Operating temperature ranges between -10°C and 50°C Solenoid valves are extremely compact and offer high flow rates Certifications IP65 rated EN-175301-803C CE certified

1//4 to 3//8 SY Series Valves The SY series are 5 port solenoid valves, they are an interface between electronic controllers and pneumatic systems. These solenoid valves are smaller and have a higher flow. The SY3000 series offers the user different sized valves which are mounted on the same manifold. The SY series of solenoid valves is more reliable offering the user enhanced performance. Another advantage of the SY series is the reduced power consumption offering the user lower operational costs. SY solenoid valves are extremely compact and offer high flow rates They operate with reduced power consumption Solenoid valves provide outstanding reliability delivering extended lifetime performance and reduce the downtime Energy saving benefits SMC SY & VZ Series These valves can be used singly or with a manifold system. Low power consumption enables direct operation by PLC. They have a Non locking manual override.
