SMC

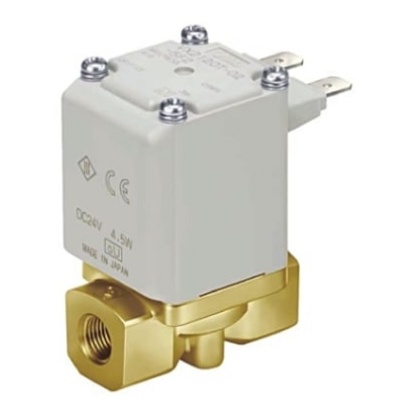

VX21-22-23 Two Port Direct Operating Solenoid Valve The SMC VX 2 Port Direct Operated Solenoid Valve is suitable for use with air, water, oil and medium vacuum environments. Air models are available with aluminium or resin bodies, while water/oil/medium vacuum models are available with brass or stainless steel bodies. Benefits over conventional SMC solenoid valve: Large flow rate (20% more for Size 1* model) More compact body (Size 1* is 10% smaller) Light weight (30% lighter: aluminium body, Size 1* model) Reduced power consumption when compared with SMC conventional model Built-in Full Wave Rectifier (for AC models) The SMC AC solenoid valve models offer an improved OFF RESPONSE, LOW NOISE construction, IMPROVED DURABILITY, REDUCED BUZZ noise and an overall REDUCTION in APPARENT POWER. The VX solenoid valve is suitable for use within environments from -10 to +60°C Note *Size 1 solenoid valve models are denoted by SMC part number commencing "VX214"; Size 2: "VX224"; Size 3: VX234

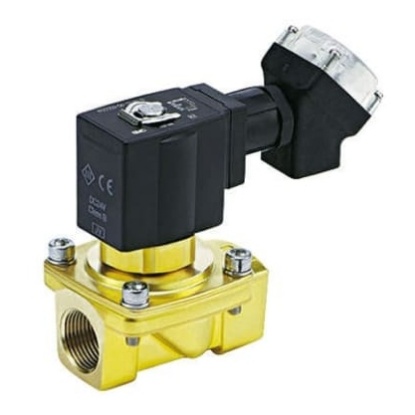

The SMC Pneumatics VXEZ2230-02F-5DO1 is a VXEZ22 series 2/2 type female direct operated 2 Port Solenoid Valve. Supply Voltage 24 V dc Number of Ports 2 Operation Pilot Connection 1/4 in G Female

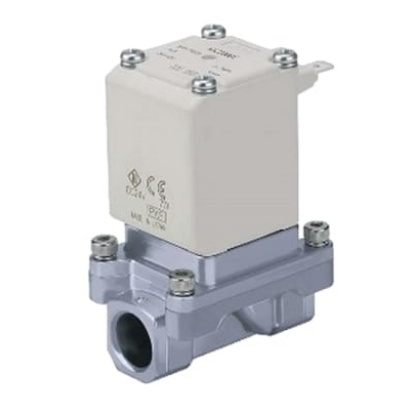

VXS2 Two Port Pilot Operated Solenoid Valve Zero pressure differential pilot solenoid valves from SMC requiring no fluid pressure for operation suitable for use with steam and heated water. Service life has been increased to 3 million cycles by using an improved scraper design that is contaminant resilient. Air leakage has also been reduced. This new series of solenoid valves are also greener consuming less energy and quieter in operation due to a rubber buffer design. Reduced power consumption Standardised 24 V dc DIN terminal Minimal internal air leakage Stainless Steel or Brass body Low noise operation Improved armature durability Double guide rings for improved foreign object resistance

VXS2 Two Port Pilot Operated Solenoid Valve Zero pressure differential pilot solenoid valves from SMC requiring no fluid pressure for operation suitable for use with steam and heated water. Service life has been increased to 3 million cycles by using an improved scraper design that is contaminant resilient. Air leakage has also been reduced. This new series of solenoid valves are also greener consuming less energy and quieter in operation due to a rubber buffer design. Reduced power consumption Standardised 24 V dc DIN terminal Minimal internal air leakage Stainless Steel or Brass body Low noise operation Improved armature durability Double guide rings for improved foreign object resistance
