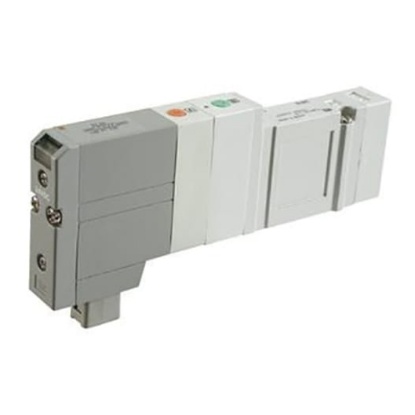

Solenoid Valve Series SV1000 & SV2000 SMC SV Series employ multi-pin connectors in place of conventional lead wires within manifold blocks. The design of the connector-type manifold enables any changes within the manifold station to be greatly simplified. Cassette base type manifolds offer the ultimate in flexibility. Changes that are made to the set-up, whether adding to or altering the configuration, is therefore very flexible and greatly simplified, reducing system down-time. The pin configuration for parallel or serial-wired manifold blocks makes it unnecessary for the units to require disassembly. SMC SV Series

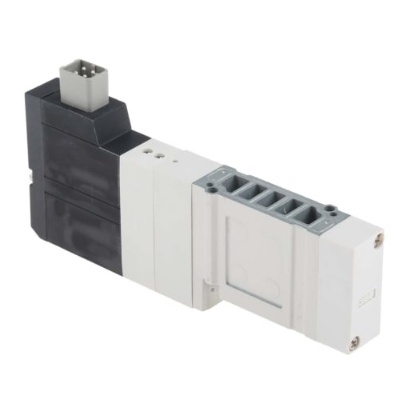

SV Series Solenoid Valves The SV Series had been designed to make instillation and changes simpler by utilising a multi-connector rather than the conventional lead wires for internal manifold wiring. Cassette base type manifolds offer great flexibility and modified sections can be added using a simple release mechanism. For ultimate flexibility conventional tie-rod base manifolds are also available. The use of 34 pin connectors allows up to 16 stations with double solenoids. Fluid: air Operating pressure range: -100kPa to 0.7MPa Response time (at 0.5MPa): 18ms or less Coil rated voltage: 12, 24 Vdc Ambient and fluid temperature: -10 to +50 °C Enclosure: IP67 (based on IEC529) SMC SV Series

SV Series Solenoid Valves The SV Series had been designed to make instillation and changes simpler by utilising a multi-connector rather than the conventional lead wires for internal manifold wiring. Cassette base type manifolds offer great flexibility and modified sections can be added using a simple release mechanism. For ultimate flexibility conventional tie-rod base manifolds are also available. The use of 34 pin connectors allows up to 16 stations with double solenoids. Fluid: air Operating pressure range: -100kPa to 0.7MPa Response time (at 0.5MPa): 18ms or less Coil rated voltage: 12, 24 Vdc Ambient and fluid temperature: -10 to +50 °C Enclosure: IP67 (based on IEC529) SMC SV Series

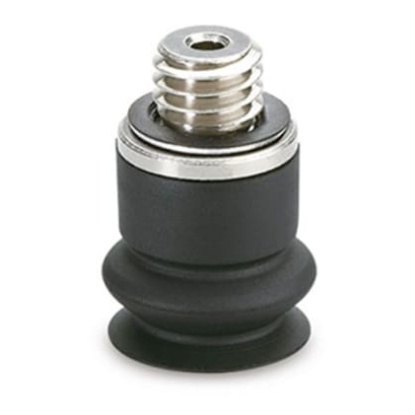

The SMC ZPT series vacuum pad has 40mm diameter. Shape is bellows Material conductive NBR Vertical vacuum entry

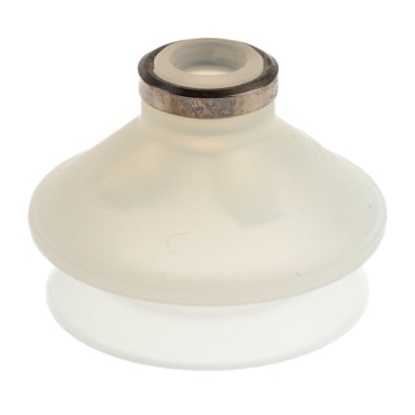

The SMC ZPT series vacuum pad has 40mm diameter. Shape is bellows Material conductive silicon rubber Vertical vacuum entry

SMC Flat and Bellow Suction Cups These suction cups offer you options to meet all your handling and transfer needs. They come in a variety of shapes and sizes suitable for a variety of lifting applications. All stems are non-rotating and come with rubber flat pad - different pad sizes and styles available 3 Stem types: -Standard Stem -Stem with buffer spring to allow objects of differing height to be picked up -Stem with female thread, top entry, suitable for use with hollow-rod cylinders All stems with 80mm diameter pads have push-in fittings included (excluding female thread top entry types) 2 Pad materials: - NBR Rubber - Silicone (for non-marking applications) 3 Pad styles: - Flat - Deep (for curved objects) - Bellows (absorbs misalignment What are the benefits of flat bellow Suction cups? Suction cups/vacuum pads are the components used to lift and hold a workpiece in a pick and place application., the cups grip the workpiece fast and precisely These suction cups are ideal for flat and uneven surfaces. Note Lifting Capacity quoted theoretically at 0.65 bar
