SMC

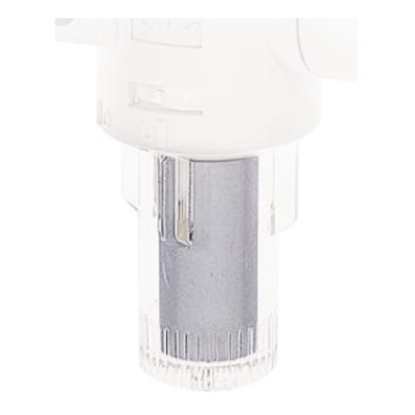

Vacuum Filter - Push-In Type Push in fittings Tubing can be installed through 360° Simple element change

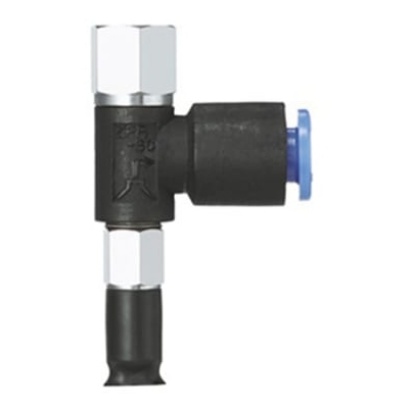

The SMC ZPR series lateral entry adapter offer a wide variety of cup diameters, materials and designs to suit multiple applications. The adapter acclaimed built-in one-touch fittings. Shape is bellows Material conductive NBR Lateral vacuum entry

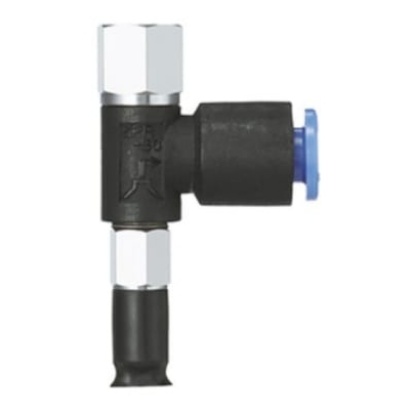

The SMC ZPR series is a vacuum pad series. It has different types of pad, having different material. Vacuum entry type without buffer

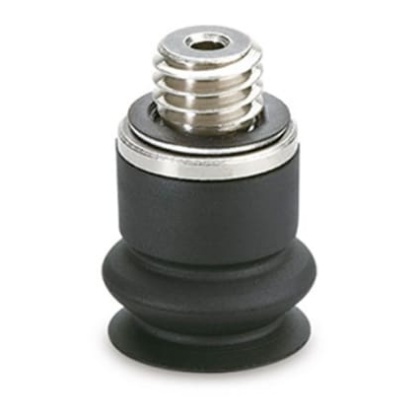

The SMC ZPT series vertical vacuum entry pad has diameter of 32 mm. Material NBR

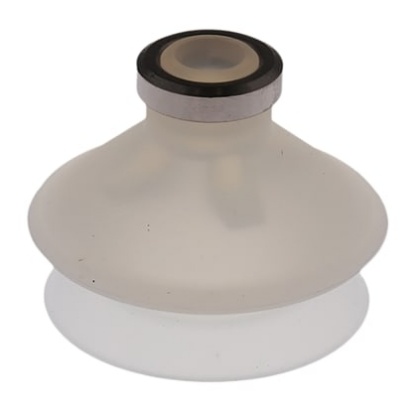

SMC Flat and Bellow Suction Cups These suction cups offer you options to meet all your handling and transfer needs. They come in a variety of shapes and sizes suitable for a variety of lifting applications. All stems are non-rotating and come with rubber flat pad - different pad sizes and styles available 3 Stem types: -Standard Stem -Stem with buffer spring to allow objects of differing height to be picked up -Stem with female thread, top entry, suitable for use with hollow-rod cylinders All stems with 80mm diameter pads have push-in fittings included (excluding female thread top entry types) 2 Pad materials: - NBR Rubber - Silicone (for non-marking applications) 3 Pad styles: - Flat - Deep (for curved objects) - Bellows (absorbs misalignment What are the benefits of flat bellow Suction cups? Suction cups/vacuum pads are the components used to lift and hold a workpiece in a pick and place application., the cups grip the workpiece fast and precisely These suction cups are ideal for flat and uneven surfaces. Note Lifting Capacity quoted theoretically at 0.65 bar

SMC Flat and Bellow Suction Cups These suction cups offer you options to meet all your handling and transfer needs. They come in a variety of shapes and sizes suitable for a variety of lifting applications. All stems are non-rotating and come with rubber flat pad - different pad sizes and styles available 3 Stem types: -Standard Stem -Stem with buffer spring to allow objects of differing height to be picked up -Stem with female thread, top entry, suitable for use with hollow-rod cylinders All stems with 80mm diameter pads have push-in fittings included (excluding female thread top entry types) 2 Pad materials: - NBR Rubber - Silicone (for non-marking applications) 3 Pad styles: - Flat - Deep (for curved objects) - Bellows (absorbs misalignment What are the benefits of flat bellow Suction cups? Suction cups/vacuum pads are the components used to lift and hold a workpiece in a pick and place application., the cups grip the workpiece fast and precisely These suction cups are ideal for flat and uneven surfaces. Note Lifting Capacity quoted theoretically at 0.65 bar
