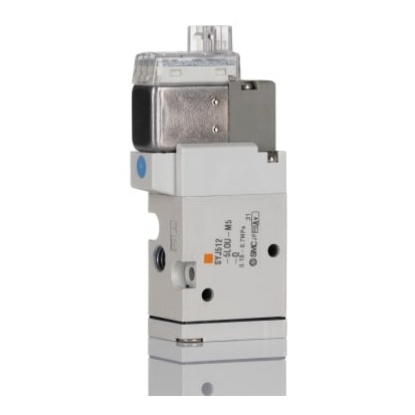

SMC Solenoid Valve The SMC SYJ5000 series 3/2 ports body ported solenoid valve has a supply voltage of 24VDC. This valve has an M5x0.8 port connection. It is manufactured to offer maximum performance in a space-efficient design, making it perfect for use as a single valve where space is at a premium. Thermal heat generation is reduced as the SYJ has a low power consumption of 0.4W as standard. This allows for direct control by PLC output relays, helping to decrease cost and improve performance. This valve is available with a lead wire of length 300mm without a connector. SMC SYJ & VF series Low power consumption enables direct operation by a PLC. They have a non-locking manual override. Operating temperature ranges between -10°C and 50°C. Features and Benefits Maximum flow rate is 129L/min Operating pressure ranges between 0.15MPa and 0.7MPa Operating temperature range between -10°C and 50°C Surge voltage suppressor (Non-polar type) Certifications IP65 rated

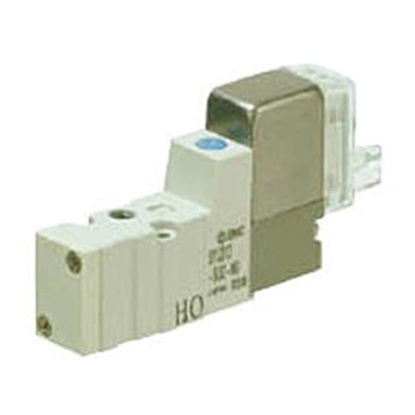

Sub-Base Valves (M5 SYJ3000 Series) Mounts on same sub-bases as VJ3000 range Low power consumption enables direct operation by PLC, no need for relays Non locking manual override 24Vdc supply voltage Supplied with indicator light and surge voltage suppressor Suitable for copper free applications

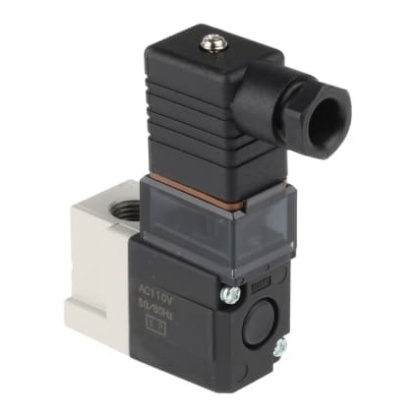

SMC Solenoid Valve The SMC VT307 series 3/2 ports direct-acting solenoid valve has a 1/4in G port connection thread size. It required supply voltage of 110VAC. This new direct-acting solenoid valve offers a large flow capacity and reduced power consumption as compared to the existing models. It has voltage surge suppression. Features and Benefits Operating temperature ranging between -10°C and 50°C Operating pressure ranging between 0MPA and 0.7MPa Body ported Interchangeable with the existing range Universal porting type Available with a DIN 43650 connector Dust-proof enclosure Unrestricted mounting orientation Non-locking push type manual override Easily converted from N/C to N/O by an inverting function plate Applications Blow-of valves Pressure release valves single acting cylinder drives Divider valves and double acting cylinder drives Selector valve Valve for vacuum Divider valve Certifications IP65 protection

VT307 Series Direct-Acting Solenoid Valve SMC have updated their EVT307 valve range with the new VT307 series. These new direct acting solenoid valves offer reduced power consumption over existing models and are available with both vacuum and energy-saving versions. Available with voltage surge suppression. Suitable for a diverse range of applications including Blow-of valves, Pressure release valves, single acting cylinder drives, Divider valves and double acting cylinder drives. Body ported Interchangeable with existing range Universal porting type Available with DIN 43650 connector with IP65 protection Dust-proof enclosure Unrestricted mounting orientation Non-locking push type manual override Various functions: N/O, N/C, Divider valve, Selector valve Available with voltage surge suppression Easily converted from N/C to N/O by inverting function plate

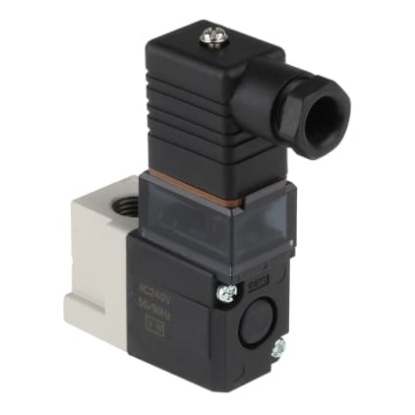

SMC Solenoid Valve The SMC VT307 series 3/2 ports direct-acting solenoid valve has a 1/4in G port connection thread size. It required supply voltage of 240VAC. This new direct-acting solenoid valve offers a large flow capacity and reduced power consumption as compared to the existing models. It has voltage surge suppression. Features and Benefits Operating temperature ranging between -10°C and 50°C Operating pressure ranging between 0MPA and 0.7MPa Body ported Interchangeable with the existing range Universal porting type Dust-proof enclosure Unrestricted mounting orientation Non-locking push type manual override Easily converted from N/C to N/O by an inverting function plate Applications Blow-of valves Pressure release valves single acting cylinder drives Divider valves and double acting cylinder drives Selector valve Valve for vacuum Divider valve Certifications IP65 protection

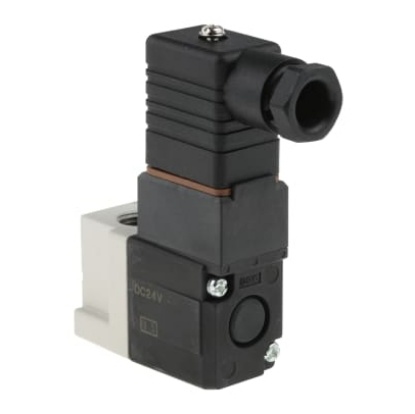

SMC Solenoid Valve The SMC VT307 series 3/2 ports direct-acting solenoid valve has a 1/4in G port connection thread size. It required supply voltage of 24VDC. This new direct-acting solenoid valve offers a large flow capacity and reduced power consumption as compared to the existing models. Features and Benefits Operating temperature ranging between -10°C and 50°C Operating pressure ranging between 0MPA and 0.7MPa Body ported Interchangeable with the existing range Universal porting type Available with a DIN 43650 connector Dust-proof enclosure Unrestricted mounting orientation Non-locking push type manual override Easily converted from N/C to N/O by an inverting function plate Applications Blow-of valves Pressure release valves single acting cylinder drives Divider valves and double acting cylinder drives Selector valve Valve for vacuum Divider valve Certifications IP65 protection
