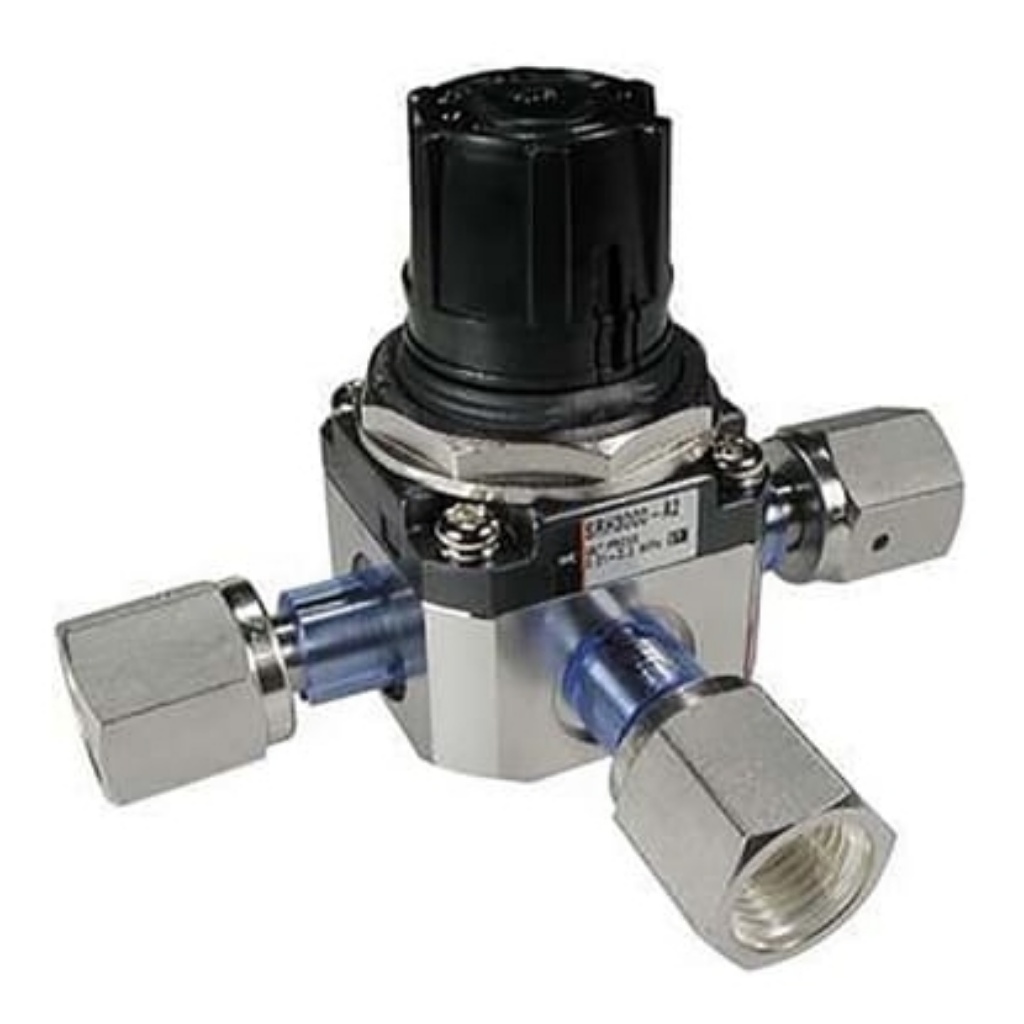

Picture of R 3/8 Pneumatic Regulator - 0.05MPa to 0.7MPa, 3/8in, 1MPa max. input, SMC, SRH4110-03

R 3/8 Pneumatic Regulator - 0.05MPa to 0.7MPa, 3/8in, 1MPa max. input, SMC, SRH4110-03

Clean regulator series SRH is a contamination controlled stainless steel regulator designed to minimize residual fluid. Design includes an intake/exhaust port in the diaphragm compartment, which facilitates flow. SRH has outstanding corrosion resistance. All metal parts in contact with fluid use stainless steel SUS316.
Manufacturer: SMC
SKU: SRH4110-03
$994.84
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Port ConnectionR 3/8
Maximum Outlet Pressure0.7MPa
Minimum Outlet Pressure0.05MPa
Maximum Input Pressure1MPa
Manufacturer SeriesSRH
Pressure Gauge Port SizeRc 1/4
Port Connection Thread Size3/8in
Pressure Gauge Port Thread Size1/4in
Port Connection Thread StandardR
Minimum Operating Temperature0°C
Maximum Operating Temperature+60°C
Overall Width52mm
Proof Pressure1.5MPa
Overall Dimensions58 x 52 x 104.5mm
Overall Length58mm
Overall Height104.5mm
