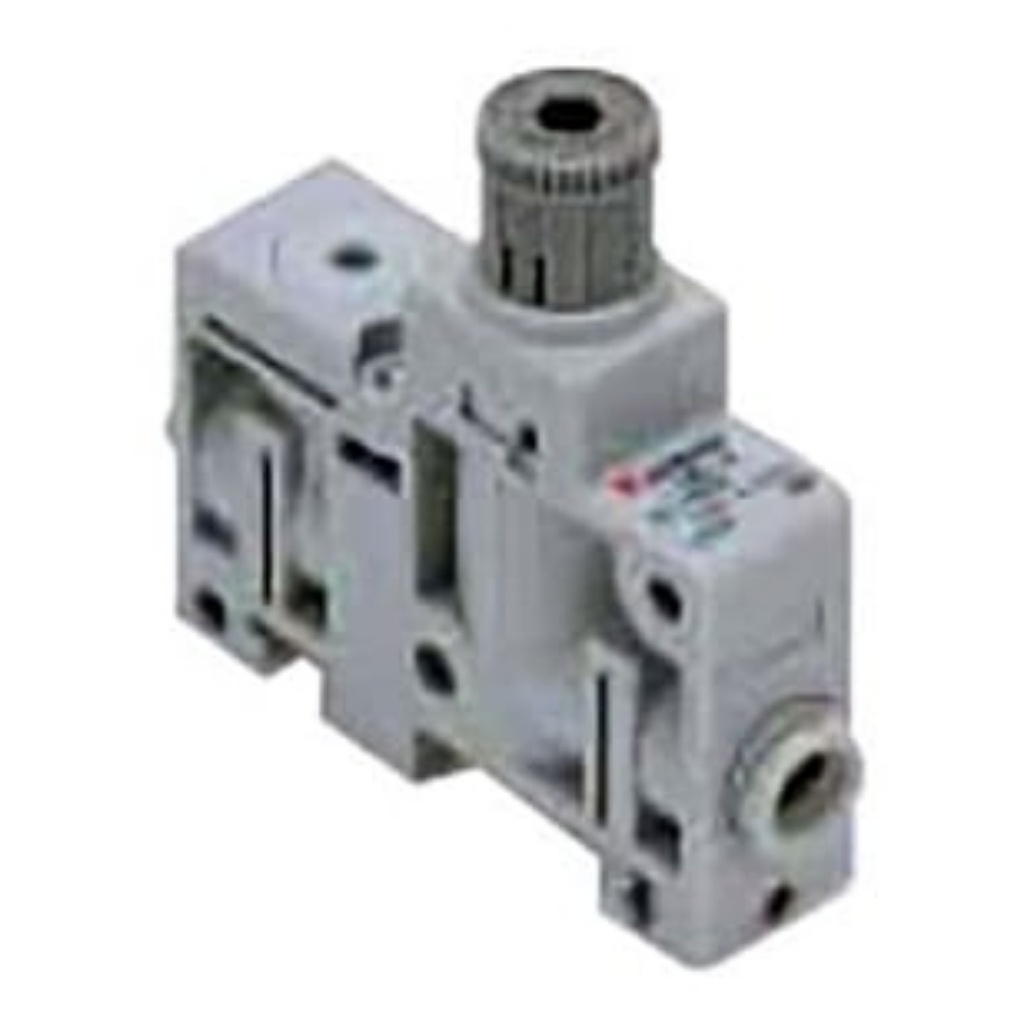

Picture of Push In 4 mm Pneumatic Regulator - 0.05MPa to 0.7MPa, 4mm, 1MPa max. input, SMC, ARM5SA-06-A

Push In 4 mm Pneumatic Regulator - 0.05MPa to 0.7MPa, 4mm, 1MPa max. input, SMC, ARM5SA-06-A

Small compact manifold regulator, single unit
Two mounting style available:Direct mount, DIN rail mount
Metric and Inch size IN/OUT Fitting Type
Options include with or without pressure gauge, 0.35MPa setting, non-relieving, and unit representation
Manufacturer: SMC
SKU: ARM5SA-06-A
$97.06
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Port ConnectionPush In 4 mm
Maximum Outlet Pressure0.7MPa
Minimum Outlet Pressure0.05MPa
Maximum Input Pressure1MPa
Manufacturer SeriesARM5S
Port Connection Thread Size4mm
Pressure Gauge Port Thread Size4 mm
Maximum Flow Rate20L/min
Port Connection Thread StandardMetric
Minimum Operating Temperature+5°C
Maximum Operating Temperature+60°C
Overall Dimensions50 x 14 x 55mm
Overall Height55mm
Overall Length50mm
Overall Width14mm
Proof Pressure1.5MPa
